1-5 Other Connectors Setup

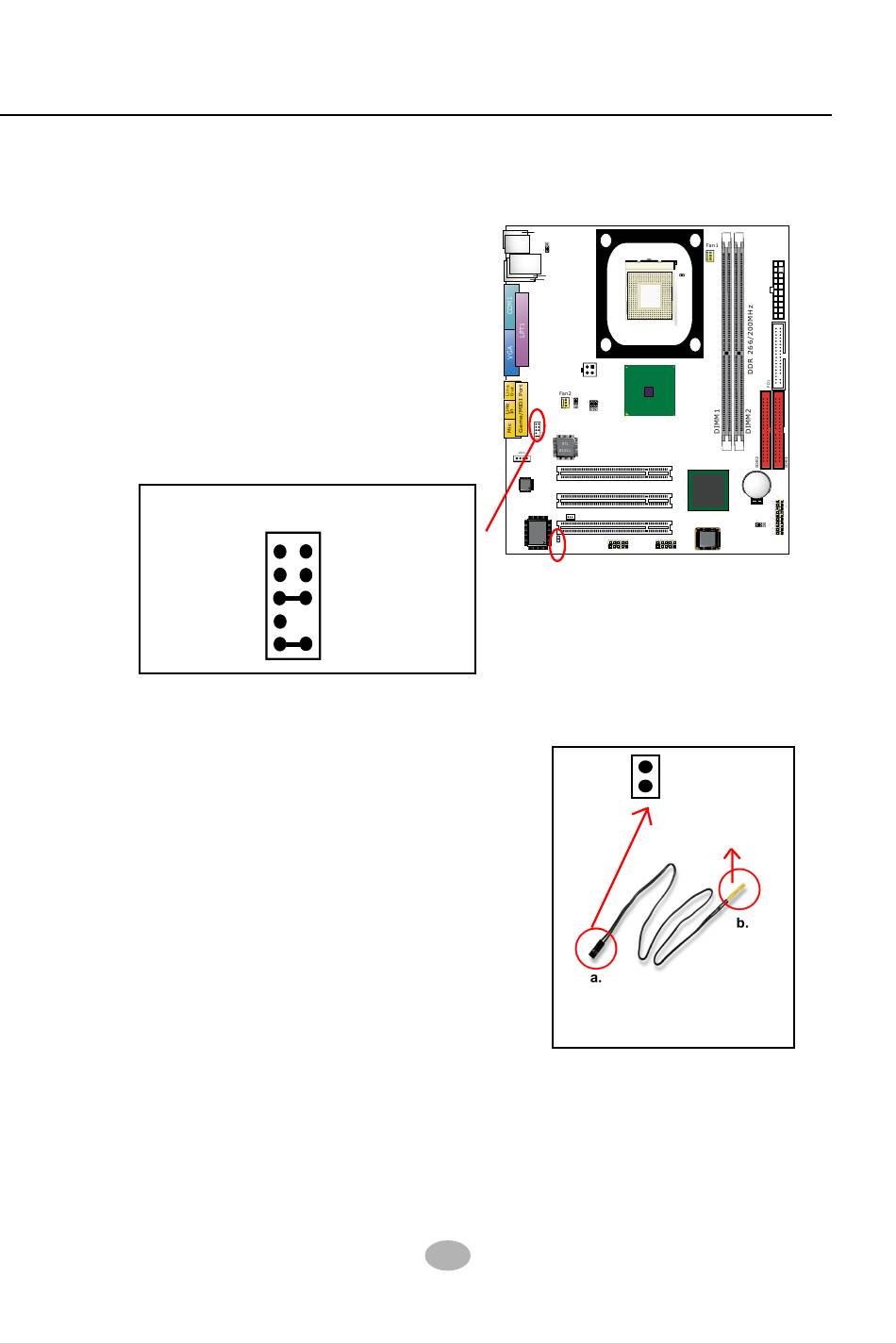

1-5.1 Front Audio Connector
This Mainboard is designed with a Front
Panel Audio connector "AU1" which pro-
vides connection to your chassis.
1. When AU1 is set to 5-6 closed and 9-10
closed, this default setting disables this
connector and leaves the Back Panel
Audio enabled.
2. To use this Front Panel Audio Connector,
please open all pins of AU1 and con-
nect it to your chassis.
AU1: Front Panel Audio Connector
Pin 1 Mic In
Pin 3 Mic VREF
Pin 5 FPOUT R
Pin 7 (Key)
Pin 9 FPOUT L
1-5.2 Jp7: Thermal Connector
Connector JP7: A thermal cable is needed
to connect JP7 to on-board devices such
as HDD, Graphics card etc., so as to detect
the temperature generated therein. Please
connect the end (a) of the thermal cable to
JP7, and tape another end (b) of thermal
cable on to the device which you want to
monitor. After you have finished the ther-
mal cable installation, you will see the de-
tected temperature in BIOS setup or
Hardware Monitor utility.
Pin 2 Aud GND
Pin 4 Aud Vcc
Pin 6 RET R
Pin 10 RET L
9
Chapter 2 Hardware Setup
PS/2 K/B (underside)
PS/2 Mouse
(on top)
JKB1
RJ45
mPGA478B
(on top)
USB0 (middle)
USB1 (underside)
Intel
+12V Power
i845GL
J1
JCLK1 JCLK2
AU1
PCI 1
RTL AC'97
ALC101
Codec
PCI 2
CN15
PCI 3
LPC I/O
IT8712F
USB2 USB3
Jp7
1 1
Jp7
To Devices
To Jp7
Thermal Cable
( optional)
PW1
ATX Power
RT1
1
Li
Intel
Battery
ICH4
JBAT1
BIOS
NJP1
