360 Vision Predator ULTRA Installation & Configuration Manual page 19

Predator ULTRA Installation Manual V2.1.25.3

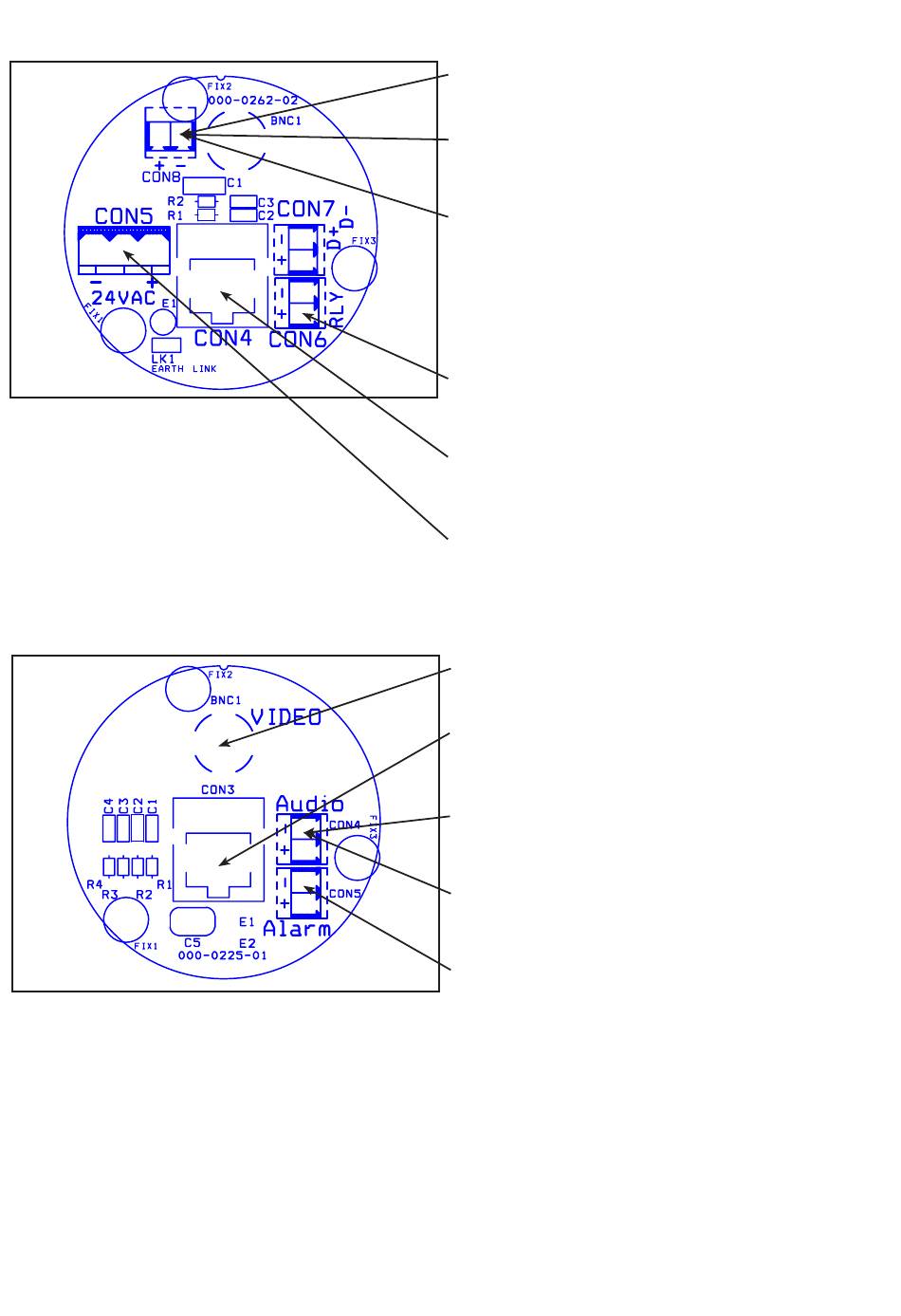

Predator with Thermal (50 - 100mm)
Please make sure there is adequate spare cable (20cm) for when the camera is resting on the lanyard, failure
to do this could damage the connector circuit board.
Predator with Thermal (50 - 100mm) - POE
Please make sure there is adequate spare cable (20cm) for when the camera is resting on the lanyard, failure
to do this could damage the connector circuit board.
Thermal Camera (If camera is present)
Use CON 8 if thermal camera is fitted to Predator.
Alarm Connection (If feature is present)
Use CON8 to connect alarm signal to Predator PSU
(PCB-000-0240-xx) CON 2 (Video).
Audio Connection (If feature is present)
Use CON8 to connect audio signal from/to the Predator.
Line In
Speaker with Impedance of 8 OHM, 6W
Line Out
Single-Output 0.9V RMS, Line Output can drive a 10k
OHM Load.
Washer Connection (If feature is present)
Use CON6 to connect washer signal to Predator washer
PSU (PCB-000-0240-xx) CON 9
Ethernet Connections
Connect Ethernet cable to HD HMA Predator connection
board using a RJ45 connector (CON4).
Power Connections
Connect 24Vac/30vdc to CON5.
Thermal Camera (If camera is present)
Use BNC 1 if thermal camera is fitted to Predator.
POE/Ethernet Connections
Connect Ethernet cable to HD HMA Predator connection
board using a RJ45 connector (CON3).
Alarm Connection (If feature is present)
Use CON4 to connect alarm signal to Predator PSU (PCB-
000-0240-xx) CON 2 (Video).
Washer Connection (If feature is present)
Use CON4 to connect washer signal to Predator washer
PSU (PCB-000-0240-xx) CON 9
Audio Connection (If feature is present)
Use CON5 to connect audio signal from/to the Predator.
Line In
Speaker with Impedance of 8 OHM, 6W
Line Out
Single-Output 0.9V RMS, Line Output can drive a 10k
OHM Load.
