PHYWE Cobra4 Operating Instructions

PHYWE Cobra4 Operating Instructions

Sensor-unit co2: gaseous carbon dioxide concentration

Advertisement

Quick Links

PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10
37079 Göttingen
Germany
+49 (0) 551 604-0
Phone
+49 (0) 551 604-107
Fax
E-mail
info@phywe.de
Internet
www.phywe.com
Operating instructions
The unit complies with
the corresponding
EU guidelines
TABLE OF CONTENTS
1
SAFETY PRECAUTIONS
2
PURPOSE AND CHARACTERISTICS
3
FUNCTIONAL AND OPERATING ELEMENTS
3.1 Operating elements
3.2 Functional elements
4
NOTES ON OPERATION
5
HANDLING
5.1 Putting Cobra4 Sensor-Unit CO
5.2 Recording of data
6
TECHNICAL DATA
7
WASTE DISPOSAL
www.phywe.com, © All rights reserved
Cobra4 Sensor-Unit CO
Gaseous carbon dioxide concentration

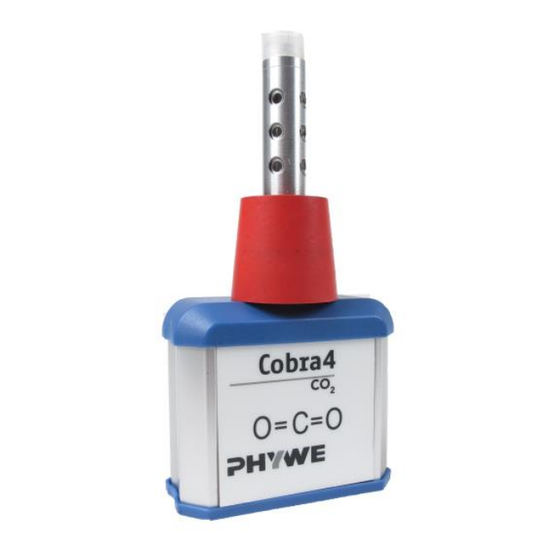

Fig. 1: 12671-01 Cobra4 Sensor-Unit CO
into operation
2
:
2
2
1
SAFETY PRECAUTIONS
Attention!
Carefully read these operating instructions completely be-
fore operating this instrument. This is necessary to avoid
damage to it, as well as for user-safety.
Only use the instrument for the purpose for which it was
designed.
Only use the instrument in dry rooms in which there is no
risk of explosion.
Protect Cobra4 Sensor-Unit from dust, moisture and va-
pours. Use a slightly moist lint-free cloth to clean the in-
strument. Do not use aggressive cleaning agents or sol-
vents.
Take care that no liquids enter through the housing open-
ings, as such penetration would result in damage to the
Cobra4 Sensor-Unit.
When using the instrument in the open air, do not allow
rainwater or splash water to enter into the housing.
Only use the experimental set-up for the purpose for which
it is intended.
Do not open up the instrument.
Only connect the data output of Cobra4 Sensor-Unit to the
measured data recording instruments specifically in-
tended for it.
The present-day state of software development makes it
impossible to guarantee that a product is free of faults.
PHYWE Systeme GmbH & Co. KG therefore does not
take on any liability for damages that occur during the in-
stallation or the use of the instrument.
12671-01
1
12671-01 / 0817

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cobra4 and is the answer not in the manual?

Questions and answers

Summary of Contents for PHYWE Cobra4

  • Page 1 Only use the experimental set-up for the purpose for which it is intended.  Do not open up the instrument.  Only connect the data output of Cobra4 Sensor-Unit to the measured data recording instruments specifically in- tended for it.  The present-day state of software development makes it impossible to guarantee that a product is free of faults.
  • Page 2 An infrared LED is located in the tip of the measuring tube. Its radiation is detected by an infrared sensor at the opposite end Mobile-Link 2 or, in the case that it is connected to a Cobra4 of the measuring tube (at the front end of the Sensor-Unit).
  • Page 3 Should you no longer require this product, do not dispose of it with the household re- fuse. Please return it to the address below for proper waste disposal. PHYWE Systeme GmbH & Co. KG Customer Service Robert-Bosch-Breite 10 37079 Göttingen Germany +49 (0) 551 604-274...
