PHYWE Cobra4 Sensor-Unit Conductivity+ Operating Instructions

PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10
D-37079 Göttingen
Phone +49 (0) 551 604-0
Fax +49 (0) 551 604-107
E-mail info@phywe.de
Operating instructions
The unit complies with
the corresponding EC
guidelines.
CONTENTS
1 SAFETY PRECAUTIONS
2 PURPOSE AND CHARACTERISTICS
3 FUNCTIONAL AND OPERATING ELEMENTS
3.1 Operating elements
3.2 Sensor interface
4 NOTES ON OPERATION
5 HANDLING
5.1 Putting into operation
5.2 Recording of conductivity values
5.3 Cleaning and care of conductivity measuring cells
5.4 Recording of temperatures
6 TECHNICAL SPECIFICATIONS
7 PARTS SUPPLIED
8 ACCESSORIES
8.1 Probes that can be directly connected
8.2 Probes needing an adapter for connection
8.3 Calibration solution for conductivity measuring cells
8.4 Storage of conductivity measuring cells
9 NOTES ON THE GUARANTEE
10 WASTE DISPOSAL
www.phywe.com, © All rights reserved
Cobra4 Sensor-Unit Conductivity+,
Conductivity / Temperature Pt1000

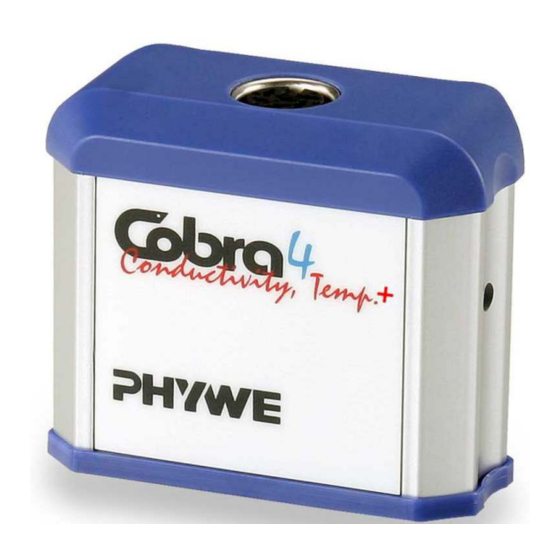

Fig. 1: 12632.00 Cobra4 Sensor-Unit Conductivity+
1 SAEFTY PRECAUTIONS
Carefully read these operating instructions completely
•
before operating this instrument. This is necessary to
avoid damage to it, as well as for user-safety.
Only use the instrument for the purpose for which it was
•
designed.
Only use the instrument in dry rooms in which there is no
•
risk of explosion.
Protect Cobra4 Sensor-Unit Conductivity+ from dust,
•
moisture and vapours. Use a slightly moist lint-free cloth
to clean the instrument. Do not use aggressive cleaning
agents or solvents.
Take care that no liquid penetrates in through the hous-
•
ing openings, as such penetration would result in dam-
age to Cobra4 Sensor-Unit Conductivity+.
Only use the experimental set-up for the purpose for
•
which it is intended.
Do not open up the instrument.
•
Only connect the data output of Cobra4 Sensor-Unit
•
Conductivity+ to the measured data recording instru-
ments specifically intended for it.
The present-day state of software development makes it
•
impossible to guarantee that a product is free of faults.
PHYWE Systeme GmbH & Co. KG therefore does not
take on any liability for damages that occur during the
installation or the use of the instrument.
12632.00
1
12632.00 / 4808
