PHYWE Cobra4 Sensor-Unit Electricity Operating Instructions

PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10
D-37079 Göttingen
Phone +49 (0) 551 604-0
Fax +49 (0) 551 604-107
E-mail info@phywe.de
Operating instructions
The unit complies with
the corresponding EC
guidelines.
CONTENTS
1 SAFETY PRECAUTIONS
2 PURPOSE AND CHARACTERISTICS
3 FUNCTIONAL AND OPERATING ELEMENTS
3.1 Operating elements
3.2 Measurement inputs
4 NOTES ON OPERATION
5 HANDLING
5.1 Putting Cobra4 Sensor-Unit Electricity to use
6 TECHNICAL SPECIFICATIONS
7 PARTS SUPPLIED
8 NOTES ON THE GUARANTEE
9 WASTE DISPOSAL
www.phywe.com, © All rights reserved
Cobra4 Sensor-Unit Electricity, ± 6 A, ± 30 V

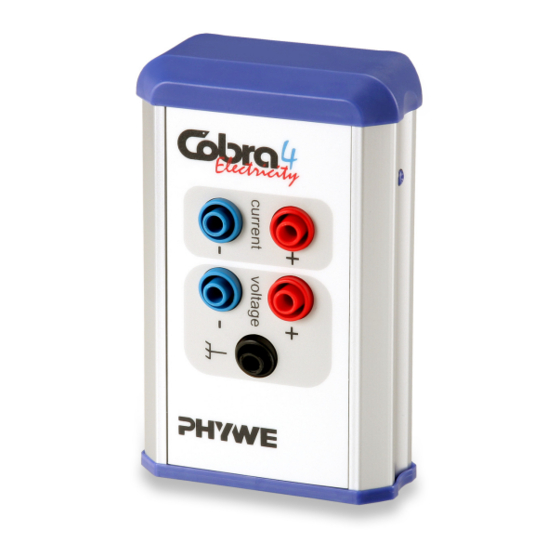

Fig. 1: 12644.00 Cobra4 Sensor-Unit Electricity
1 SAFETY PRECAUTIONS
Carefully read these operating instructions completely
•
before operating this instrument. This is necessary to
avoid damage to it, as well as for user-safety.
Only use the instrument for the purpose for which it was
•
designed.
Only use the instrument in dry rooms in which there is no
•
risk of explosion.
• Protect Cobra4 Sensor-Unit Electricity from dust, mois-
ture and vapours. Use a slightly moist lint-free cloth to
clean the instrument. Do not use aggressive cleaning
agents or solvents.
Take care that no liquid penetrates in through the hous-
•
ing openings, as such penetration would result in dam-
age to Cobra4 Sensor-Unit Electricity.
• Only use the experimental set-up for the purpose for
which it is intended.
Do not open up the instrument.
•
Only connect the data output of Cobra4 Sensor-Unit
•
Electricity to the measured data recording instruments
specifically intended for it.
The present-day state of software development makes it
•
impossible to guarantee that a product is free of faults.
PHYWE Systeme GmbH & Co. KG therefore does not
take on any liability for damages that occur during the
installation or the use of the instrument.
12644.00
1
12644.00 / 4808
