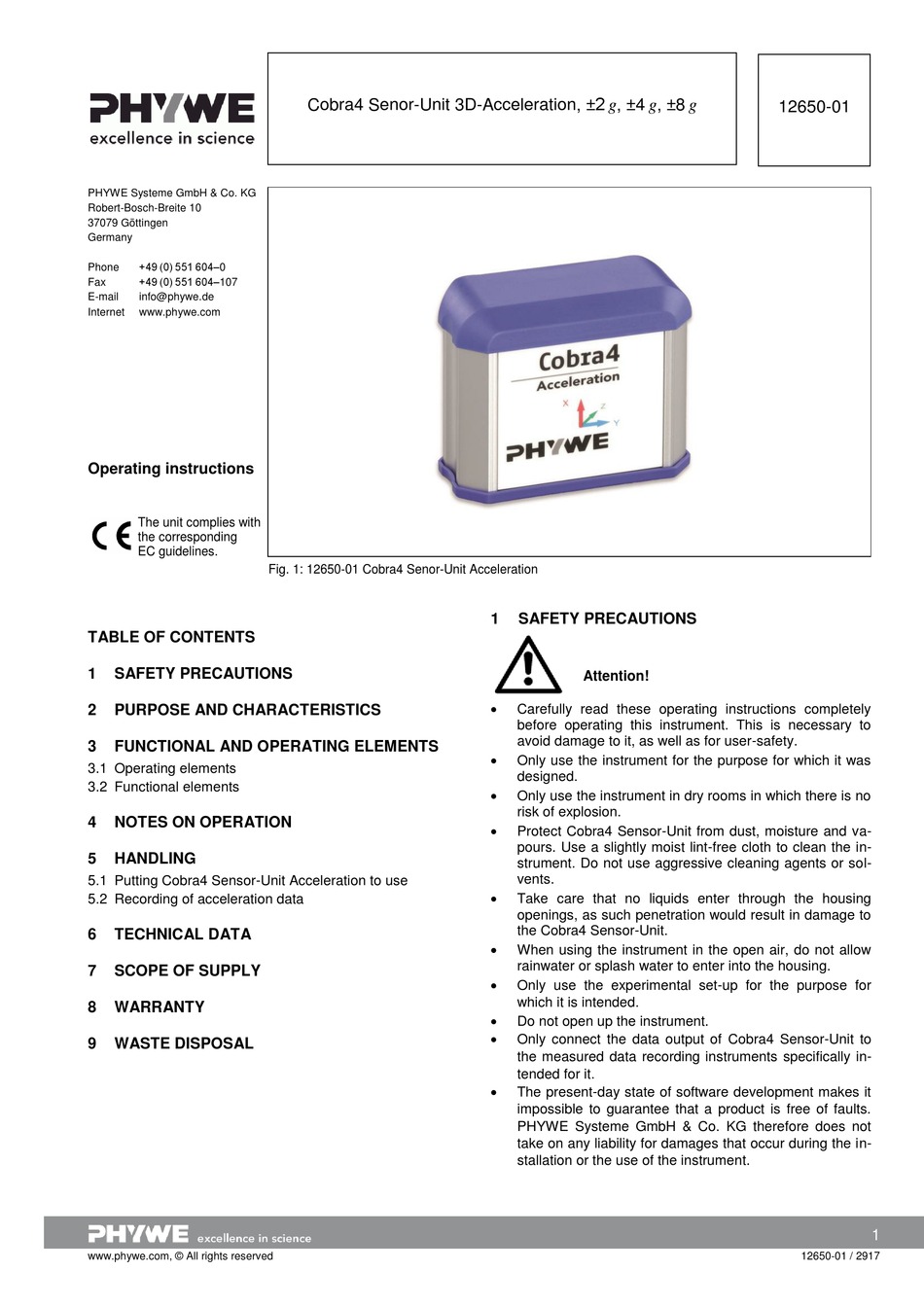

PHYWE Cobra4 Operating Instructions

PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10
37079 Göttingen
Germany
+49 (0) 551 604–0
Phone
+49 (0) 551 604–107
Fax
E-mail info@phywe.de
Internet www.phywe.com
Operating instructions
The unit complies with
the corresponding
EC guidelines.
TABLE OF CONTENTS
1

SAFETY PRECAUTIONS

2 Purpose And Characteristics
3 Functional And Operating Elements
3.1 Operating elements
3.2 Functional elements
4 Notes On Operation
5 Handling
5.1 Putting Cobra4 Sensor-Unit Acceleration to use
5.2 Recording of acceleration data
6 Technical Data
7 Scope Of Supply
8 Warranty
9 Waste Disposal
www.phywe.com, © All rights reserved
Cobra4 Senor-Unit 3D-Acceleration, ±2 g, ±4 g, ±8 g

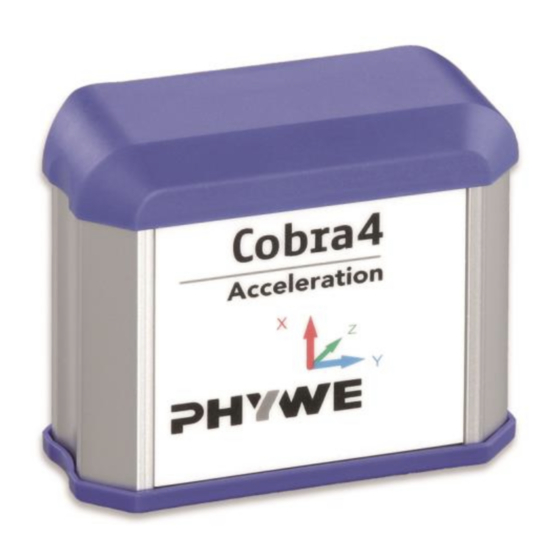

Fig. 1: 12650-01 Cobra4 Senor-Unit Acceleration
1 SAFETY PRECAUTIONS
Attention!

Carefully read these operating instructions completely
before operating this instrument. This is necessary to
avoid damage to it, as well as for user-safety.

Only use the instrument for the purpose for which it was
designed.

Only use the instrument in dry rooms in which there is no
risk of explosion.

Protect Cobra4 Sensor-Unit from dust, moisture and va-
pours. Use a slightly moist lint-free cloth to clean the in-
strument. Do not use aggressive cleaning agents or sol-
vents.

Take care that no liquids enter through the housing
openings, as such penetration would result in damage to
the Cobra4 Sensor-Unit.

When using the instrument in the open air, do not allow
rainwater or splash water to enter into the housing.

Only use the experimental set-up for the purpose for
which it is intended.

Do not open up the instrument.

Only connect the data output of Cobra4 Sensor-Unit to
the measured data recording instruments specifically in-
tended for it.

The present-day state of software development makes it
impossible to guarantee that a product is free of faults.
PHYWE Systeme GmbH & Co. KG therefore does not
take on any liability for damages that occur during the in-
stallation or the use of the instrument.
12650-01
1
12650-01 / 2917
