Periodical maintenance

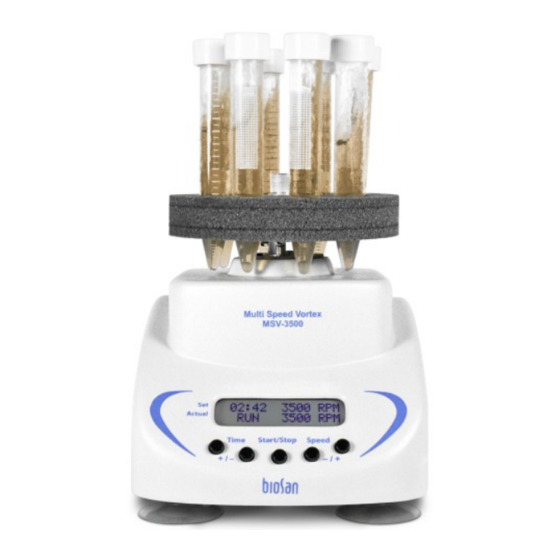

Vortex MSV-3500
does not require periodical technical maintenance, except cleaning.
Cleaning. Standard ethanol (75%) or any other cleaning liquids can be used for cleaning and
disinfecting of the device, if it does not contain any strong organic solvents (such as acetone,
toluene or benzene).
The following spare parts are available for Vortex
No. Starting version/date Compatibility
1
V.3AW / 28.05.2012
2
V.4AW / 03.07.2018
3
V.2AZ / 28.01.2010
4
V.4AW / 03.07.2018
5
V.4AW / 03.07.2018
6
V.4AW / 03.07.2018
7
V.2AZ / 28.01.2010
8
V.4AW / 03.07.2018
9
V.1AZ / 27.11.2009
10
V.1AZ / 27.11.2009
MSV-3500 Service Manual - V.4AW
Service Manual for
Vortex MSV-3500
V.4AW
Casing (bio)
-
Control Board
V.4AW
LCD Board
-
Microprocessor
-
Button Board
-
Power Board
V.4AW
Bearing assembly 694
-
Motor
V.4AW
Switch
V.4AW
Power Socket
Version 4 - January 2022
MSV-3500:
Spare part
Marking
MSV-3500
ROT4S
BC1602AGPHCTB BS-000000-S01
PIC16F1933-I/SP BS-010210-S23
MINB5AS
MDRV13S
42BL3A40
H8600VB1
HEBL 2,1mm
Article
BS-010210-S06
BS-010210-S22
BS-010210-S24
BS-010210-S25
BS-010210-S07
BS-010210-S26
BS-000000-S02
BS-000000-S03
Page 1
Advertisement
Related Manuals for Biosan Vortex MSV-3500
Summary of Contents for Biosan Vortex MSV-3500
- Page 1 Service Manual for Vortex MSV-3500 Periodical maintenance Vortex MSV-3500 does not require periodical technical maintenance, except cleaning. Cleaning. Standard ethanol (75%) or any other cleaning liquids can be used for cleaning and disinfecting of the device, if it does not contain any strong organic solvents (such as acetone, toluene or benzene).
- Page 2 Spare part replacement Disassembling: 1. Disconnect the unit from power supply. 2. Unscrew the screw (fig.1/1) and remove the platform. 3. Unscrew the two screws (fig.2/1, fig.3/1) and remove the platform holder. 4. Remove the rubber collar (fig.3/2). 2. Turn the unit upside down and unscrew the six screws from the underside (fig.4/1).
- Page 3 4. To replace the Microprocessor: – with the help of special tool or using a small, flat tip screwdriver carefully remove the Microprocessor (fig.5/3); Do not mix up correct side installing the new one! The Microprocessor’s and connector’s shape scheme.1 has the same notch (1.
- Page 4 MSV-3500 Service Manual - V.4AW Version 4 - January 2022 Page 4...
