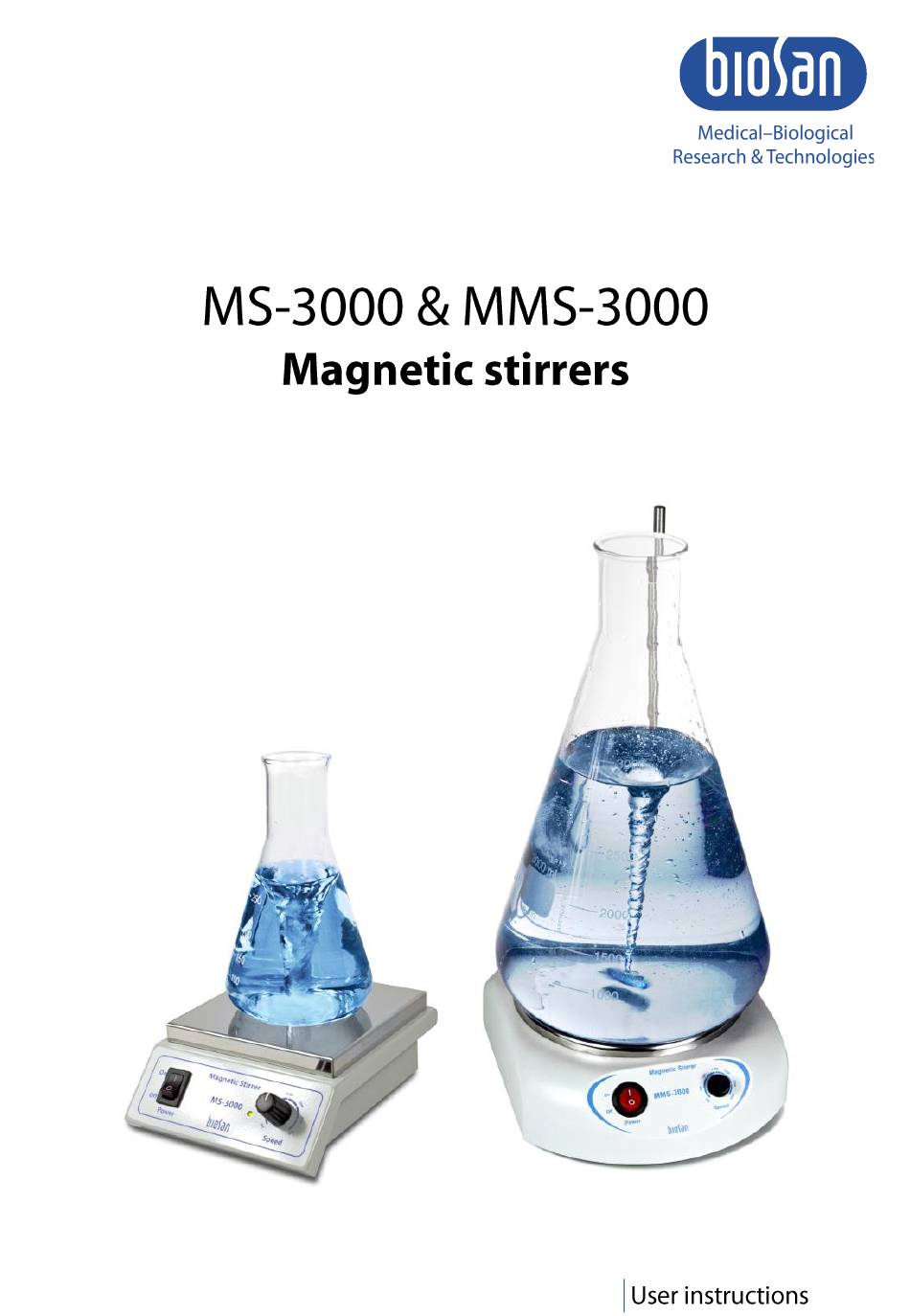

Biosan MMS-3000 User Instructions

Magnetic stirrers
Hide thumbs Also See for MMS-3000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MMS-3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Biosan MMS-3000

Summary of Contents for Biosan MMS-3000

  • Page 3: Table Of Contents

    Care and maintenance ..................... 9 Warranty ......................... 10 EU Declaration of conformity .................. 11 About this edition of user instructions The manual applies to following models and versions of magnetic stirrers:  MS-3000 ..................... version V.2AW  MMS-3000 ..................version V.3AW...

  • Page 4: Safety Precautions

    Safety precautions Caution! Make sure you have fully read and understood the present Manual before using the equipment. Please pay special attention to sections marked by this symbol. Attention! Magnetism! Effects of a strong magnetic field on the biological systems have to be taken in to account.

  • Page 5: General Information

    (max. speed depends on the magnetic element size, stirred volume, viscosity, glassware shape, etc.). The unit is designed for operation with different size magnetic stirring elements (20-50 mm long for MS-3000 and 20-70 mm long for MMS-3000). Other size magnetic ele- ments may not provide appropriate operation.

  • Page 6: Getting Started

    4.4. SR-1 stand installation on MMS-3000. Remove the screw on the fixing socket at the back of the stirrer (fig. 1/1). Screw in the part of the stand with the counter-nut into the fixing socket and secure with the counter-nut. Screw in the second part of the stand into the attached first part.

  • Page 7: Operation

    Note! In the model MMS-3000, if the stirring element loses positioning, the motor drops the speed, positions the element and slowly picks up the speed. If mixing is still unstable due to high viscosity or large mixing volume, consider lowering mixing speed.

  • Page 8: Specifications

    AC 100-240 V, 50/60 Hz, out DC 12 V Weight 0.8 kg 1.5 kg Dimensions 120x150x65 mm 185x230x75 mm Table 1. MS-3000 and MMS-3000 maximal speed in RPM, depending on H O volume and mag- netic element length MS-3000 MMS-3000 Magnetic element length, mm 15 L...

  • Page 9: Ordering Information

    Model Version Catalogue number MS-3000 V.2AW BS-010301-AAF MMS-3000 V.3AW BS-010305-AAF 7.2. To inquire about or order the replacement parts, contact Biosan or your local Biosan representative. 7.3. Replacement parts: Replacement parts Description Catalogue number SR-1 Detachable stand for MMS-3000 BS-010302-AK...

  • Page 10: Warranty

    To obtain the claim form, visit Technical support page on our website at link below. 9.5. Extended warranty. For MS-3000 MMS-3000, the Basic Plus class models, extended warranty is a paid service. Contact your local Biosan representative or our service department through the Technical support section on our website at the link below. 9.6.

  • Page 11: 10. Eu Declaration Of Conformity

    10. EU Declaration of conformity Unit type Magnetic stirrers Models MS-3000, MMS-3000 Serial number 14 digits styled XXXXXXYYMMZZZZ, where XXXXXX is model code, YY and MM – year and month of production, ZZZZ – unit number. Manufacturer SIA BIOSAN Latvia, LV-1067, Riga, Ratsupites str. 7/2...
  • Page 12 Biosan SIA Ratsupites 7, build.2, Riga, LV-1067, Latvia Phone: +371 67426137 Fax: +371 67428101 http://www.biosan.lv Edition 2.-3.01 – October 2018...
