Summary of Contents for Biosan Multi Bio RS-24

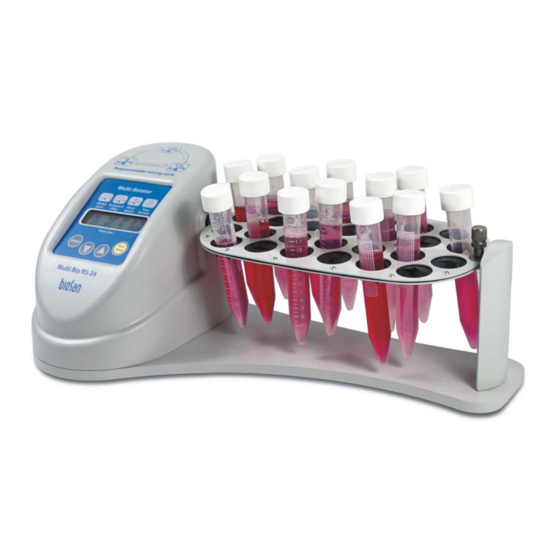

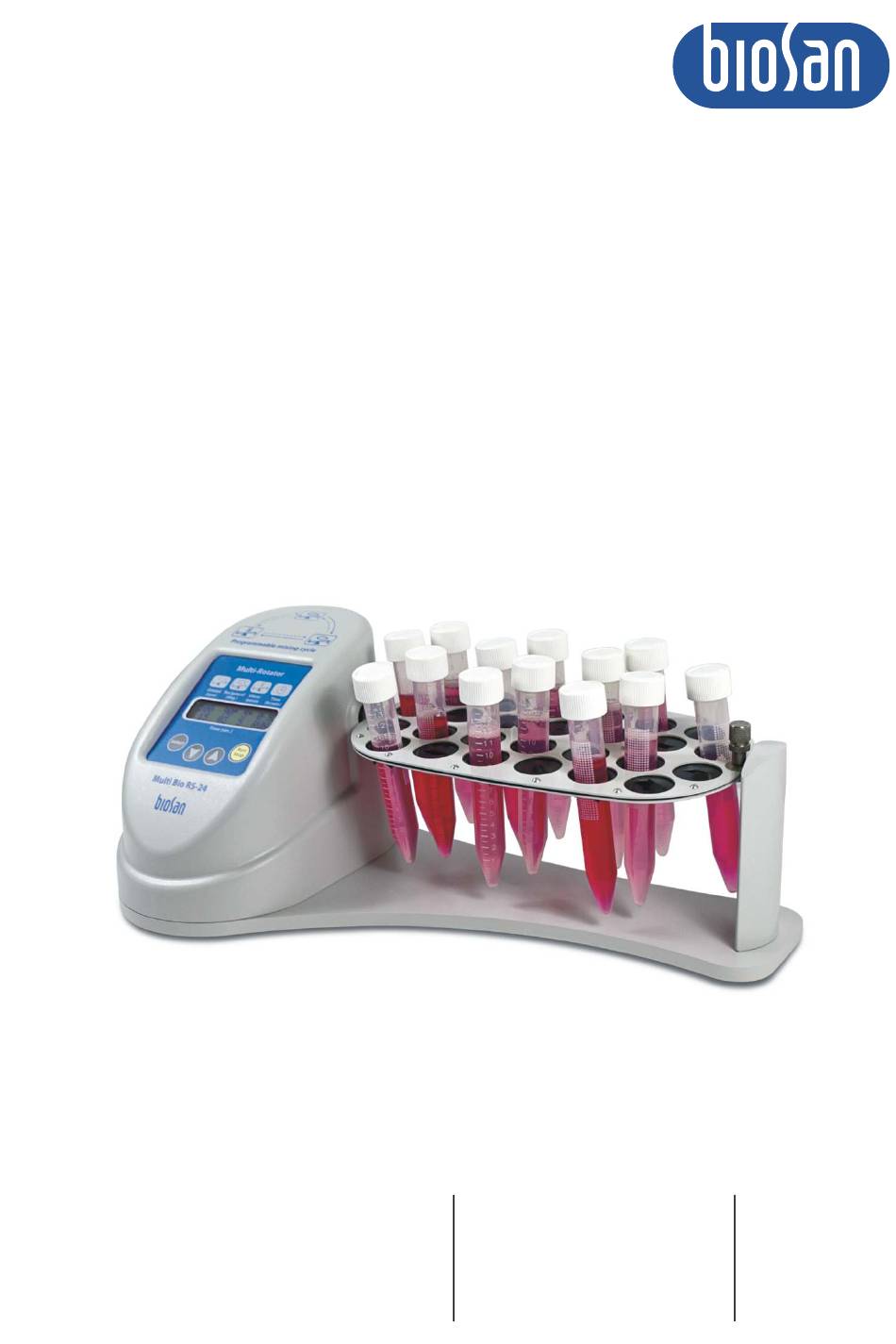

- Page 1 Medical–Biological Research & Technologies Multi Bio RS-24 Programmable rotator Operating Manual for version V.3AW Certificate...
-
Page 2: Table Of Contents
Contents 1. Safety precautions 2. General information 3. Getting started 4. Operation 5. Program setting 6. Specifications 7. Maintenance 8. Warranty and Claims 9. Declaration of Conformity Page 2... -
Page 3: Safety Precautions
1. Safety precautions The following symbols mean: Caution! Make sure you have fully read and understood the present Manual before using the equipment. Please pay special attention to sections marked by this symbol. GENERAL SAFETY Use only as specified in the operating instructions provided. ·... -
Page 4: General Information
2. General Information 2. General Information 2. General Information Multi Bio RS-24 programmable rotator provides: 1) orbital rotational Multi Bio RS-24 programmable rotator provides: 1) orbital rotational Multi Bio RS-24 programmable rotator provides: 1) orbital rotational Multi Bio RS-24 programmable rotator provides: 1) orbital rotational... - Page 5 4) Working period from 1 min to 24 hours, or non-stop. Apart from the unique operation modes the Multi Bio RS-24 rotator possesses attractive miniature and elegant BioForm design and offers user- friendly interface, which provides options not only for changing the program during the operation, but also for simultaneous control over different steps of mixing protocol realization.
-
Page 6: Getting Started
Remove packing materials carefully and retain them for future shipment or storage of the unit. 3.2. Complete set. Package contents: Standard set - Multi Bio RS-24 programmable rotator........1 piece - PRS-26 platform u ..............1 piece - External power supply unit ............1 piece - Operating Manual; Certificate..........1 copy... -
Page 7: Operation
4. Operation Recommendation during operation Arrange the tubes symetrically to the rotation axis when loading. 4.1.Connect the external power supply unit to the electric circuit. 4.2.Place samples on the platform: microtubes - up to the end; vacutainers and tubes with caps - halfsize. 4.3.Set the appropriate program and operation time (see the Program Setting Section of this Manual) according to the methodical prescriptions. -
Page 8: Program Setting
stopped with hand during operation, the program does not stop and the platform motion is automatically resumed after the platform is released. 4.10.Disconnect the external power supply unit from electric circuit to turn off the unit. 5. Program setting When setting program parameters please mind that the unit may be unable to operate properly in reciprocal and vibration modes with maximum load. - Page 9 5.5.3. Orbital + Reciprocal + Vibro Orbital Reciprocal Vibro Set the speed (1-100 rpm) and time (rpm) (deg.) / pause (1 - 250 sec) of Orbital rotation. 1-100 1-90 Set the angle (1-90º) and time (1 - 250 sec) for Reciprocal motion. Set 1-250 1-250 the turning angle (0-5º) and time (1 - 5...
- Page 10 type (1 - 5 sec), which is the time of pause duration. Set the angle of Vibro type motion to zero. Orbital Reciprocal Vibro 5.5.7. Vibro + Reciprocal Rotation (rpm) (deg.) / pause Set the speed (1-100 rpm) of Orbital rotation.
-
Page 11: Specifications
6. Specifications The unit is designed for operation in cold rooms, incubators and closed laboratory rooms at ambient temperature from +4°C to +40°C and maximum relative humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C. 6.1. - Page 12 Microtube type tubes only Up to 100 g. Table 1. Recommended loading depending on motion types Biosan is committed to a continuous programme of improvement and reserves the right to alter design and specifications of the equipment without additional notice. Page 12...
-
Page 13: Maintenance
7. Maintenance 7.1. If the unit requires maintenance, disconnect the unit from the mains and contact Biosan or your local Biosan representative. 7.2. All maintenance and repair operations must be performed only by qualified and specially trained personnel. 7.3. Standard ethanol (75%) or other cleaning agents recommended for cleaning of laboratory equipment can be used for cleaning and decontamination of the unit. -
Page 14: Warranty And Claims
If any manufacturing defects are discovered by the Customer, an unsatisfactory equipment claim shall be compiled, certified and sent to the local distributor address. Please visit www.biosan.lv, Technical support section to obtain the claim form. 8.4. The following information will be required in the event that warranty or post-warranty service comes necessary. -
Page 15: Declaration Of Conformity
9. Declaration of Conformity Version 3.03 - October 2012...
