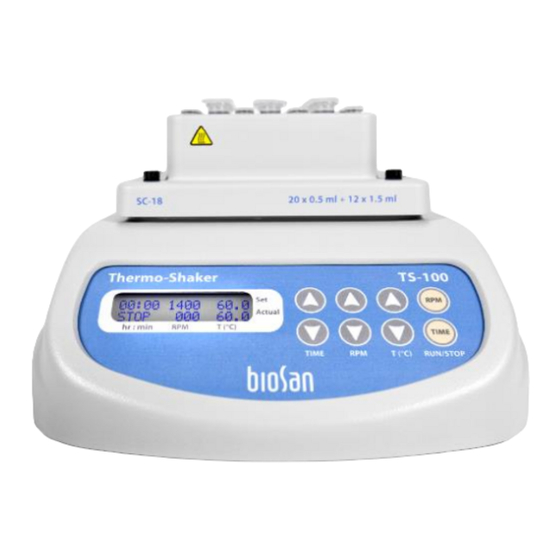

Biosan TS-100 Operating Manual

Thermo-shakers for microtubes and pcr plates
Hide thumbs
Table of Contents

Advertisement

Quick Links

Find out about our special offer
on www.biosan.lv/classes-en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Biosan TS-100

Summary of Contents for Biosan TS-100

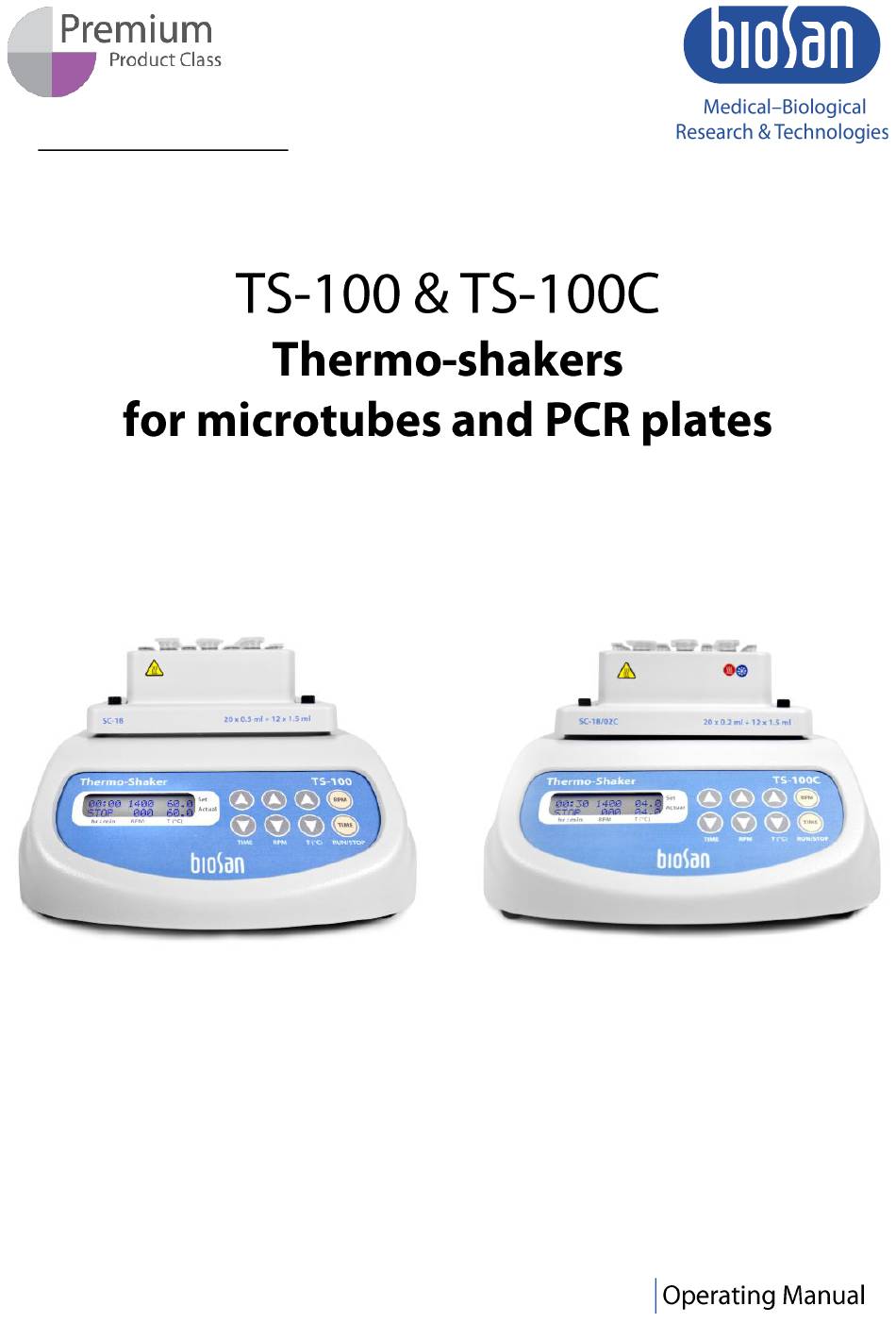

  • Page 1 Find out about our special offer on www.biosan.lv/classes-en...

  • Page 2: Table Of Contents

    Warranty ......................... 14 EU declaration of conformity .................. 15 About this edition of the operating manual The manual applies to following models and versions of thermo-shakers for micro- tubes and PCR plates:  TS-100 version V.4AW  TS-100C version V.5AW...

  • Page 3: Safety Precautions

    Safety precautions The following symbols mean: Caution! Make sure you have fully read and understood the present Manual before using the equipment. Please pay special attention to sections marked by this symbol. Caution! Hot surface! Platform surface becomes very hot during use. Always use protective cotton gloves to install or remove samples when the temperature is set higher than 60°C.
  • Page 4 DURING OPERATION  Do not leave the operating unit unattended.  Do not impede the platform motion.  Do not operate the unit in environments with aggressive or explosive chemical mix- tures. Please contact manufacturer for possible operation of the unit in specific at- mospheres.

  • Page 5: General Information

    PCR plates in a temperature controlled environment. The TS-100C model of thermo-shaker differs from TS-100 in the possibility of cooling samples down to +4°C. Features of thermo-shakers meet the highest expectations of users according to many parameters: ...

  • Page 6: Getting Started

    4.2. Complete sets. 4.2.1. TS-100 TS-100 thermo-shaker for microtubes and microplates ........1 pce External power supply ..................1 pce Power cable ...................... 1 pce Spare rubber belt ....................2 pcs Operating manual, declaration of conformity ............. 1 pce SC-18 thermoblock for microtubes ...
  • Page 7 Power switch is turned off and external power supply is disconnect from the device. Caution! Thermoblocks for TS-100 and TS-100C are not interchangeable! In- stalling a thermoblock from different model will irreversibly damage both the unit and the thermoblock! TS-100C thermoblocks have an additional sticker.

  • Page 8: Operation

    If a temperature is set, then the platform temperature automatically changes to that temperature. The time of temperature stabilization depends on the room temperature. If the heating of is turned off by setting the temperature below 25°C (TS-100) or 4°C (TS-100C), top line shows indication OFF.
  • Page 9 Heating/temperature maintenance process does not stop when the timer is finished. Platform thermal regulation can be turned off only by setting the required temperature below 25°C (TS-100) or 4°C (TS- 100C), top line shows indication OFF. In this mode, thermo-shaker can be used in the cold rooms as a mixing device without thermoreg- ulation.

  • Page 10: Calibration

    Calibration 6.1. The device is precalibrated at the factory (calibrating coefficient is 1.000) for operation with temperatures measured by a sensor in the heating block. 6.2. To change the calibration coefficient, hold the TIME RUN/STOP key pressed for more than 8 s to activate calibration mode. The calibration coefficient appears on the dis- play (figure 4).

  • Page 11: Specifications

    80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C. Biosan is committed to a continuous programme of improvement and reserves the right to alter design and specifications of the equipment without additional notice.

  • Page 12: Ordering Information

    SC-96AC BS-010143-FK with half skirt, low and high profile Caution! Thermoblocks for TS-100 and TS-100C are not interchangeable! In- stalling a thermoblock from different model will irreversibly damage both the unit and the thermoblock! TS-100C thermoblocks have an additional sticker.

  • Page 13: Maintenance

    8 s. Press RPM RUN/STOP key to turn off the signal. Error code format is letters ER and a single digit. Disconnect the unit from the electric circuit and report the error code to Biosan or your local Biosan representative.

  • Page 14: Warranty

    To obtain the claim form, visit section Technical support on our website at link be- low. 10.5. Extended warranty. For TS-100 and TS-100C, the Premium class models, one year of extended warranty is available free of charge after registration, during 6 months from the date of sale.

  • Page 15: Eu Declaration Of Conformity

    11. EU declaration of conformity Unit type Thermo-shakers Models TS-100, TS-100C, TS-DW, PST-60HL, PST-60HL-4, PST-100HL Serial number 14 digits styled XXXXXXYYMMZZZZ, where XXXXXX is model code, YY and MM – year and month of production, ZZZZ – unit number. Manufacturer SIA BIOSAN Latvia, LV-1067, Riga, Ratsupites str.

This manual is also suitable for:

Ts-100c
