TMG -CP1220F Product Manual

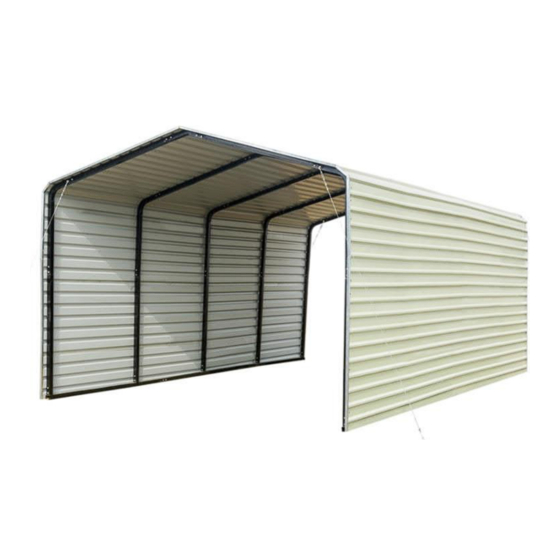

12ft x 20ft all-steel carport
Hide thumbs

Advertisement

Quick Links

Download this manual
W W W . T M G I N D U S T R I A L . C O M
P 0 / 13
T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-CP1220F and is the answer not in the manual?

Questions and answers

Related Manuals for TMG TMG-CP1220F

Summary of Contents for TMG TMG-CP1220F

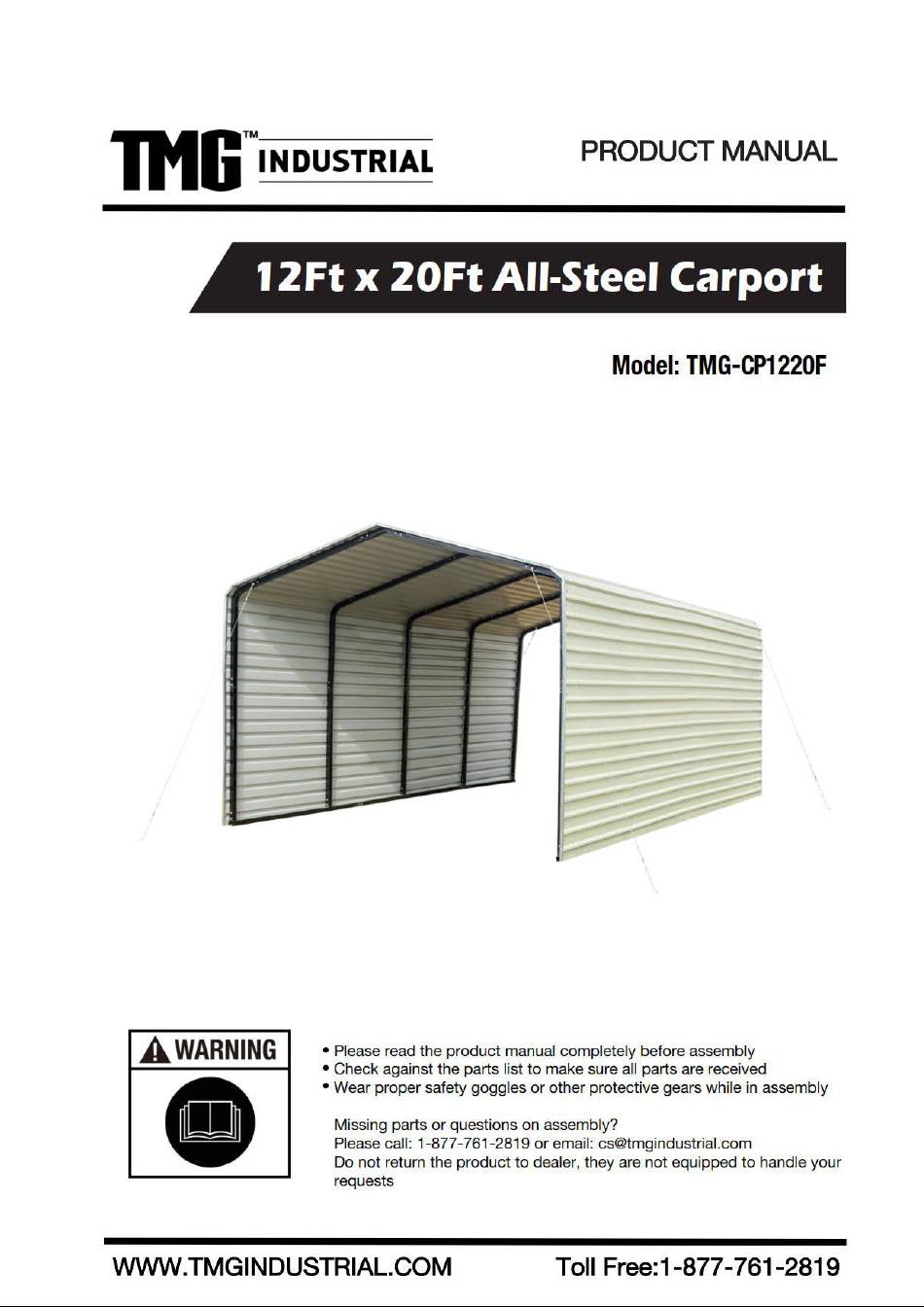

  • Page 1 W W W . T M G I N D U S T R I A L . C O M P 0 / 13 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...

  • Page 2: Main Specifications

    Main Specifications :  Overall assembled size : W3.66 x L6 x H2.9 (m) / 12 x 20 x 10 (ft)  Width : 3.66 m / 12ft  Length : 6 m / 20 ft  Ridge Peak Height : 2.9 m / 10 ft ...
  • Page 3 TMG-CP1220F Part List Parts Graphical Description code Peak arch tube Middle rafter tube Shoulder tube Sidewall tube Short casing Metal sheet tile C (front and rear truss) Metal sheet tile D (front and rear truss) Foot tube (front and rear)
  • Page 4 Steel cable mounting plate Anchor Hook （ M14x120mm ） Steel cable（3.3m） Expansion bolt (φ16x150mm) Waterproof silicon sealant Teroson statu Hex bolt M10x60mm Self tapping screw M5x30mm Rivet φ3x6mm Sleeve W W W . T M G I N D U S T R I A L . C O M P 3 / 13 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 5 Installation steps Step 1 : Review the whole structure and choose the proper installation site Refer to the foundation structure drawing 1, draw lines on the ground for positioning, all dimension lines are drawn from the center of the pipe to the center, and the diagonal X must be equal to Y.
  • Page 6 Step 2 : Assemble all trusses The building includes 5 trusses: (1) front truss, (1) rear truss, and (3) middle trusses. Note : use (#18) at the links of (#3) and (#4) to reinforce the inner side.  Parts used to install the front and rear truss in this step (refer to Figure2): - (1x2) Peak arch tube (#1) - (2x2) Middle rafter tube (#2) - (2x2) Shoulder tube (#3)
  • Page 7 Note : use (#18) at the links of (#3) and (#4) to reinforce the inner side.  Parts used to install (3) middle trusses in this step (refer to Figure 3). - (1x3) Peak arch tube (#1) - (2x3) Middle rafter tube (#2) - (2x3) Shoulder tube (#3) - (2x3) Sidewall tube (#4) - (24x3) Hex bolt (#17)
  • Page 8 Step 3 : Assemble all trusses to the foundation pipe and connect them with (#17) bolts  The front and rear trusses are installed with one side of (#12) Steel cable mounting plate facing outwards. (refer to Figure 5) Figure 5 Step 4 : Install the color iron tile ...
  • Page 9 Figure 6 W W W . T M G I N D U S T R I A L . C O M P 8 / 13 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 10  Install the first color iron tile. Take the first colored iron tile at the top as the benchmark, ensure that both ends of each colored iron tile are aligned, install as shown in Figure 7, and lock it on the truss with (#18) self tapping screw. (refer to Figure 7) Figure 7 ...
  • Page 11 Figure 8 Step 5 : Install the front and rear edging strips  Start to install the color iron tile edge protector (#9) from one side, and align one end with the color iron tile edge. The opening of the edge banding strip of the color iron tile shall be aligned with the end face of the color iron tile, and the bottom buckle can be pressed into place.
  • Page 12 Figure 9 Install the edge buckle (#10), and the two raised card points of the edge buckle are aligned with the square holes at the interfaces of the two color iron tile edge bands, and then press the buckle in place. The front and rear installation methods are the same. (refer to Figure 10) Figure 10 W W W .
  • Page 13 Step 6 : Install the wire rope  Select a suitable position to fix the expansion bolt of the draw hook on the ground, hook one end of (#14) Steel cable to (#12) Steel cable mounting plate, and fix the other end to (#13) Anchor hook of the draw hook, adjust the nut on the steel wire rope to tighten the steel wire rope (refer to Figure 11).
  • Page 14 After the Installation Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position. Check the base plates, adjust the ropes and tie downs if required and clean the cover regularly.
