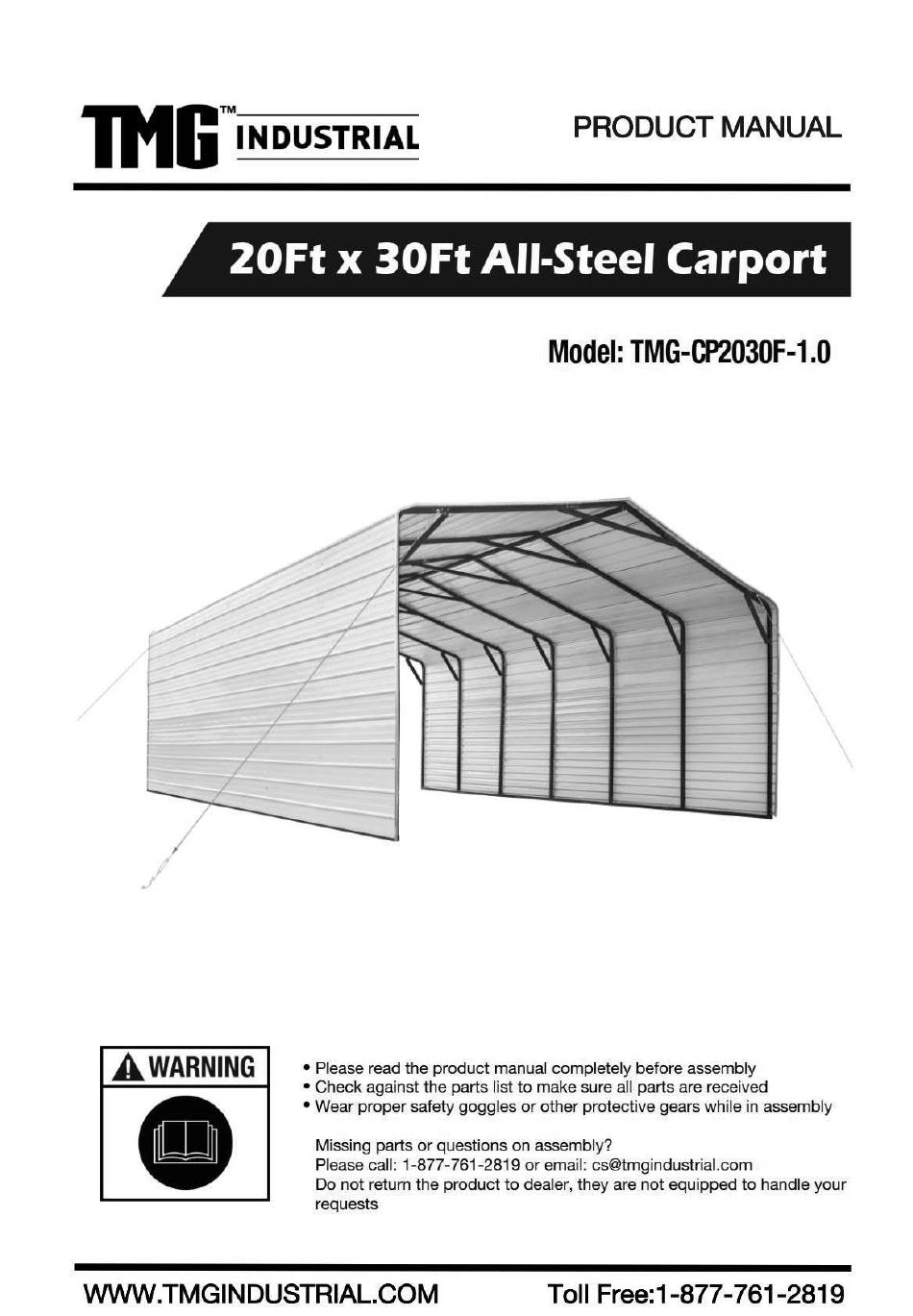

TMG -CP2030F-1.0 Product Manual
  1. Manuals
  2. Brands
  3. TMG Manuals
  4. Shelters
  5. TMG-CP2030F-1.0
  6. Product manual

TMG -CP2030F-1.0 Product Manual

20ft x 30ft all-steel carport
Hide thumbs

Advertisement

Quick Links

Download this manual
W W W . T M G I N D U S T R I A L . C O M
P 0 / 14
T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-CP2030F-1.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TMG TMG-CP2030F-1.0

Summary of Contents for TMG TMG-CP2030F-1.0

  • Page 1 W W W . T M G I N D U S T R I A L . C O M P 0 / 14 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...

  • Page 2: Main Specifications

    Main Specifications :  Overall assembled size : W6 x L9 x H3.78 (m) / 20 x 30 x 12 (ft)  Width : 6 m / 20ft  Length : 9 m / 30 ft  Ridge peak height : 3.78 m / 12 ft ...
  • Page 3 TMG-CP2030F-1.0 Part List Parts Graphical Description code Peak arch tube Middle rafter tube Shoulder tube Shoulder tube (middle) Sidewall tube Short casing Top cross bar A Top cross bar B Ceiling cross bar Foot tube (front and rear) Foot tube...
  • Page 4 Edge protector Edge buckle Water plug Steel cable mounting plate Anchor hook （ M14x120mm ） Steel cable (3.9m) Expansion bolt (φ16x150mm) Waterproof silicon sealant Teroson statu Hex bolt M10x70mm Self tapping screw M5x30mm Rivet φ3x6mm Corner protector Hex bolt M10x120mm Sleeve Eyebolt W W W .
  • Page 5 Installation steps Step 1 : Review the whole structure and choose the proper installation site Refer to the foundation structure Figure 1, draw lines on the ground for positioning, all dimension lines are drawn from the center of the pipe to the center, and the diagonal X must be equal to Y.
  • Page 6 Step 2 : Assemble all trusses The building includes 7 trusses : (1) front truss, (1) rear truss, (1) middle trusses and (4) other trusses. Parts used to install the front and rear truss in this step (refer to figure 2). ...
  • Page 7 - (34) Hex bolt (#17) - (1) Ceiling cross bar (#6) - (2) Reinforcing tube (#6D) - (12) Reinforced tube mounting plate (#6E) - (6) Short casing (#4A) Figure 3 Parts used to install (5) middle trusses in this step (refer to figure 4). ...
  • Page 8 Figure 4 Lay down all (7) trusses on the ground when the assembly is all completed and before  moving to next step (refer to figure 5). Figure 5 Step 3 : Assemble all trusses to the foundation pipe and connect them with (#17) bolts The front and rear trusses are installed with one side of (#12) Steel cable mounting plate ...
  • Page 9 Figure 6 Install top cross bar A (#5C) and top cross bar B (#5D).Use (#21) and (#17) Hexagonal  bolt fixation (refer to figure 7). Parts used in this step : - (5) Top cross bar A (#5C) - (1) Top cross bar B (#5D) - (5) Short casing (#4A) - (15) Hex bolt (#17) - (7) Hex bolt (#21)
  • Page 10 Figure 7 Step 4 : Install the color iron tile Before installation, ensure that the distance between centers of each collapse is 1500mm.  Install the first row of colored steel tiles from the top end. The center of the colored steel tiles must be aligned with the midpoint of the top arch tube (you can mark the center of the top arch tube with a line).
  • Page 11 Figure 8 Install the first color steel tile. Take the first colored steel tile at the top as the benchmark,  ensure that both ends of each colored steel tile are aligned, and lock it on the truss with (#18) self tapping screw (refer to figure 9).
  • Page 12 Install all color iron tiles in turn, make sure that both ends of each color iron tile are aligned,  and apply waterproof silicon sealant (#16) on the butt joint of both ends (refer to figure 10). Figure 10 Step 5 : Install the front and rear edging strips Start to install the color steel tile edge protector (#9A) from one side, and align one end with ...
  • Page 13 Figure 11 Install the edge buckle (#10) and the two raised card points of the edge buckle are aligned  with the square holes at the interfaces of the two color steel tile edge bands, and then press the buckle in place. The front and rear installation methods are the same (refer to figure 12). Figure 12 W W W .
  • Page 14 Step 6 : Drilling holes in metal sheet Drill holes from inside to outside where the middle truss has holes, through the thin  metal sheet (refer to figure 13). Figure 13 Step 6 : Install wire rope and waterproof plug Select a suitable position to fix the expansion bolt of the draw hook on the ground, hook one end of the wire rope onto the wire rope mounting plate and eyebolt, and fix the other end to (#13) anchor hook of the draw hook, adjust the nut on the steel wire rope to tighten the steel wire rope.
  • Page 15 Figure 14 Now that your building is completely installed, we need to check all components and trusses to make sure the whole structure is rectangular. Check whether the connection of color steel tile fits. We provide (#19) rivets, which can be used to fix the color steel tiles where necessary, so that they can fit together to prevent water leakage.
