- Page 1 TA-400MIC CUSTOM INSTALL INTEGRATED AMPLIFIER Instruction manual Edition 09-2022...
- Page 2 Introduction Thank you for purchasing this TAGA Harmony amplifier. The TA-400MIC is an efficient, cost-effective choice for home hi-fi systems and commercial installations in restaurants, pubs, shops, conferencing rooms, fitness clubs for both background music, voice playback or karaoke systems.
-
Page 3: Table Of Contents
Contents Safety Instructions Front and Rear Panel Hooking Up Speaker Cables Hooking Up the Amplifier Operation Play from a USB Flash Drive Additional Information Specifications Kit Content... -
Page 4: Safety Instructions
Safety Instructions IMPORTANT READ THIS SECTION CAREFULLY BEFORE PROCEEDING! WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The triangle containing a lightning symbol is intended to alert the user to the presence of uninsulated dangerous voltages within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 5 Safety Instructions 1. Read Instructions - All the safety and operating instructions 13. Overloading - Do not overload wall outlets, extension cords or should be read before the product is operated. integral convenience receptacles as this can result in a risk of fire 2.
-
Page 6: Front And Rear Panel

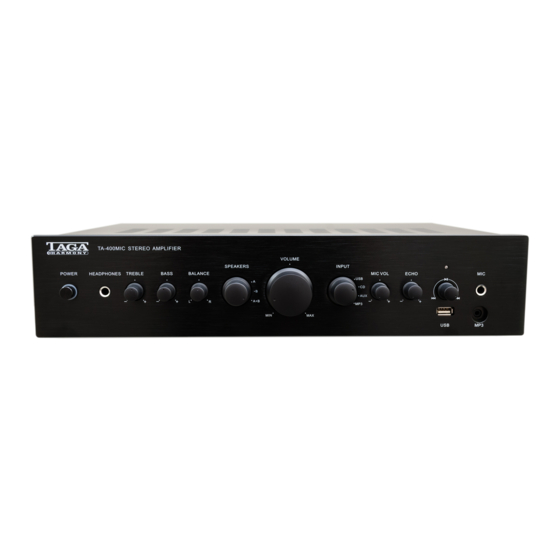

Front and Rear Panel Front Panel: Power Switch (ON and OFF) and Power Status Indicator (around the Power Switch) Headphone 6.5 mm (1/4”) Output Treble Regulator Bass Regulator Balance Regulator Speaker Selector (A, B, A+B) Volume Regulator Input Selector (USB, CD, AUX, MP3) Microphone Level Regulator 10. -
Page 7: Hooking Up Speaker Cables
Hooking Up Speaker Cables The Speaker Connectors can accommodate up to 10AWG speaker cables as well as most of popular plugs (banana etc.). It is recommended to leave about 150 cm (5 feet) of extra cable at the amplifier end to facilitate positioning and installation of the amplifier. -
Page 8: Hooking Up The Amplifier
Hooking Up the Amplifier Speakers A Speakers B Network streamer etc. Speaker RCA-RCA interconnect cables Power cable RCA-RCA interconnect RCA-RCA interconnect CD Player etc. External power amplifier, powered speakers etc. Headphones Microphone 3.5 mm mini jack - USB Flash Drive mini jack interconnect Smartphone,... - Page 9 Hooking Up the Amplifier 1. Make sure the amplifier is turned off (the Power Switch and the Power Cable is removed from the wall outlet). 2. Turn the Volume Regulator to MIN (max counter clockwise). 3. Using speaker cables connect your speakers to the SPEAKERS OUT (A or B, A and B) connectors.
-
Page 10: Operation
Hooking Up the Amplifier 10. External audio equipment connection options: Input / Output Input / Output Connection cable TA-400MIC external equipment CD, AUX Output - RCA sockets RCA-RCA interconnect input (not supplied) PRE OUT output Preamplifier input RCA-RCA interconnect (not supplied) Outputs: 3.5 mm mini jack - mini jack interconnect... - Page 11 Operation 4. Using the Input Selector knob select which audio source you want to play (corre- sponding to the selected input). Make sure the audio source is properly connected to the front and rear panel inputs. 5. Turn on your audio source and start playback. 6.
- Page 12 Operation Headphone connection (PHONES): When headphones (not supplied with this product) are plugged to the headphone output (Phones) the transmission of sound to the speakers and PRE OUT is switched off. The speakers and PRE OUT will be active again after you disconnect the headphones. The volume of the headphones is regulated by the Volume Regulator.
-
Page 13: Play From A Usb Flash Drive
Play from a USB Flash Drive This amplifier can play music from most USB Flash Drives and supports most MP3 / WMA / WAV / APE audio files. 1. Using the Input Selector knob select the USB Input. If the USB flash drive is not inserted then the USB Input Led Indicator will be flashing. 2. -
Page 14: Additional Information
Additional Information Break-In Your TAGA Harmony amplifier sounds great immediately after it is taken out of the carton but as in all amplifiers, the internal components of this amplifier require a “break-in” period to reach its full sonic capabilities. During the “break-in” period it is recommended to operate the amplifier at moderate volume levels. -
Page 15: Specifications
Specifications Type CI 4-zone stereo amplifier with MIC mixing Power Output 2 x 60W RMS @ 8ohm 2 x 90W RMS @ 4ohm ≤ 2% (30-20kHz) Signal/Noise ratio ≥80dB (A-weighted) Frequency Response 30Hz – 20kHz Inputs USB (MP3 / WMA / WAV / APE audio files) RCA stereo CD, AUX 3.5 mm stereo MP3 (front) Output... -
Page 16: Kit Content
We strongly advise to contact a professional installer or dealer in order to install TAGA Harmony products. We recommend using high quality TAGA Harmony cables and other installation accessories. Kit Content: Amplifier 1 EA Power Cable 1 EA Instruction Manual...
