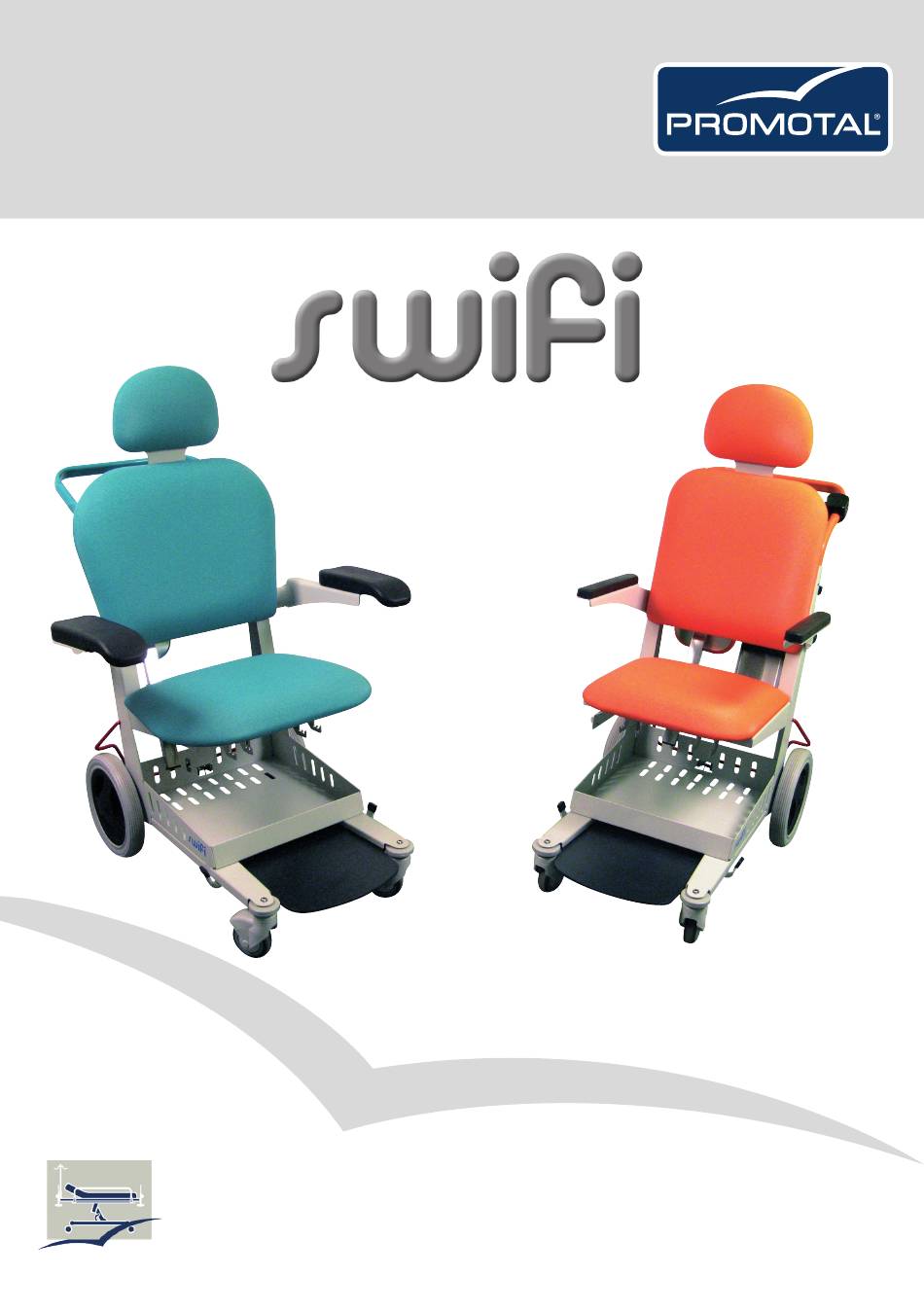

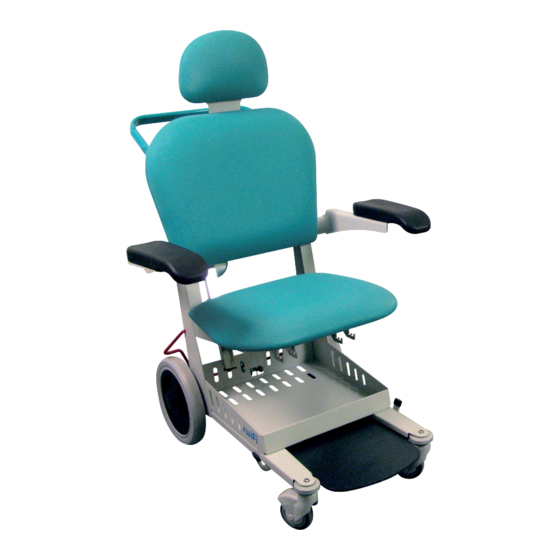

- Page 1 User’s Guide Model Shown : 30130-02 / 30130-02L Transfer Chair 30130-02 / 30130-02L...
- Page 2 Operating Manual are deemed correct at the time of 22, rue de Saint-Denis de Gastines printing. B.P. 26 - 53500 ERNÉE Cedex Promotal , however, reserves the right to modify its models FRANCE and its procedures or render them obsolete without notice. Tél. :...
-
Page 3: Table Of Contents
Summary Important Information Safety symbols Precautions when unpacking Material delivered in cardboard packaging Storage condition Conditions of use Unpacking / Installation Verification Cleaning protocol Warning Cleaning/Disinfecting User’s Guide – Transfer chair Intended use Authorisation to use Patient weight capacity Features Dimensions Using the Stretcher The foot rest... - Page 4 Summary Installing the urine bag support Pair of clamps Installing the clamps Support tray Installing the Support tray Using Swing IV ® I.V. pole with two hooks Installing the IV pole Auto-blocking I.V. pole Installing the IV pole Adjusting the height of the IV pole Head rest Installing the Head rest Installing the head rest...
- Page 5 Summary Leg-rest Installing the leg rest support Storing the leg rest Placing the leg-rest in a horizontal position (PH) Placing the leg-rest in an inclined position (PI) Oxygen bottle holder Installing the Oxygen bottle holder Installing the Oxygen bottle Changing the Oxygen bottle Chairs locks reference 30147-01, 30147-10 Installing the coin lock...
-
Page 6: Important Information
Important Information Safety symbols Warning sign The information marked with this symbol must be read and strictly followed ! Note Procedure, practice, or condition. Maximum number of Correct orientation for Humidity limitation stacked pallets transportation Atmospheric pressure Temperature Fragile limitation limitation Not to use sharp Keep in a dry place... -
Page 7: Precautions When Unpacking
Precautions when unpacking Material delivered in cardboard packaging ○ Small, lightweight, easy ○ Heavy or cumbersome material requiring the to handle materiel of lifting gear In this case, the products can be easily handled without any lifting gear, taking care to position the In this case, it is possible to use a fork lift truck, product according to the directional arrows on the provided it is used correctly. - Page 8 Precautions when unpacking Note : Authorized CE representative Countries in the EEC should direct all questions, incidents, and complaints to Promotal’s Authorized CE representative listed below : Promotal 22, rue de Saint-Denis de Gastines 53500 Ernée, FRANCE Téléphone : + 33 (0)2 430 517 76 Fax : + 33 (0)2 430 572 00 User’s Guide...
-
Page 9: Cleaning Protocol
Any modification to the medical device without written authorization from the manufacturer is forbidden. Caution Only accessories designed and provided by Promotal for this medical device are authorised for use. Caution This medical device is not intended to be cleaned in a washing tunnel. -
Page 10: User's Guide - Transfer Chair
Swifi should only be used by adults with the strength required to use it safely. If these instructions are not carefully followed, Promotal shall not be held liable in case of an accident. -
Page 11: Dimensions
Dimensions (30130-02) 610 mm 470 mm 440 mm 221mm 160 mm 336 mm 600 mm Dimensions (30130-02L) 895,5 mm 600 mm 440 mm 230 mm 336 mm User’s Guide... -
Page 12: Using The Stretcher
Using the Stretcher The foot rest Adjusting the foot rest The brakes Using the brakes Press your foot on the brake pedal (red R). The back castors are blocked. To unlock the brakes, press on the central pedal (green V). The castors are free. If not used over a long period of time, do not leave the brakes locked, in order not to deform... -
Page 13: Patient File Holder
Patient file holder Dimension useful : 43 x 23 x 3,7 cm 3,7 cm User’s Guide... -
Page 14: Accessories
Only accessories designed and provided by Promotal Accessories for this medical device are authorized for use. Urine bag support (reference 30140-01) Installing the urine bag support Unscrew slightly the screws situated under the upholstery. Insert the support and rescrew. n°4 Allen key... -
Page 15: Support Tray
Support tray (reference 30142-01) Installing the Support tray Unscrew the screw handle. Insert the Support tray pole and rescrew. Caution Clamps are necessary to install these accessories. (ref. : 30148-20) The Support tray positions only on the right clamps of the chair. Tighten screws before use Using Swing IV ®... -
Page 16: I.v. Pole With Two Hooks
Only accessories designed and provided by Promotal Accessories for this medical device are authorized for use. I.V. pole with two hooks (reference 30148-01) Installing the IV pole Hold the I.V. pole, and unscrew the screw handle. Adjust the pole sliding it into the holder. Tighten the screw handle. -
Page 17: Head Rest
Head rest (reference 30141-01) Installing the Head rest The head rest is placed on the backrest. Unscrew the 3 screws already in place on the backrest. N°4 Allen key Installing the head rest (when the Swing IV is already installed) ®... -
Page 18: Swing
Only accessories designed and provided by Promotal Accessories for this medical device are authorized for use. Swing IV (Rotating IV pole) ® (reference 30148-10) (The parts are delivered dismounted) Installing Swing IV (rotating IV pole) ® The Swing IV is placed on the backrest. -
Page 19: Using Swing Iv
Using Swing IV ® Lift the IV pole, and pivot 180°. To lock, replace the IV pole in its casing. Ensure the IV pole is correctly in place before use. Safety belt (reference 30143-01) Using the Safety belt Ensure to lock correctly before use User’s Guide... -
Page 20: Installing The Safety Belt
Only accessories designed and provided by Promotal Accessories for this medical device are authorized for use. Installing the Safety belt 1. Remove the upholstery The upper part of the belt is placed on the backrest. N°4 Allen key Several possibilities, follow the same procedure as installing Swing IV and the head rest. -
Page 21: Leg-Rest
Leg-rest (Reference 30149-01L) (Reference 30149-01) Installing the leg rest support Insert the support under the seat. Pivot the support. Box spanner of 10 n°4 Allen key Storing the leg rest User’s Guide... -
Page 22: Placing The Leg-Rest In A Horizontal Position (Ph)
Only accessories designed and provided by Promotal Accessories for this medical device are authorized for use. Placing the leg-rest in a horizontal position (PH) Placing the leg-rest in an inclined position (PI) User’s Guide... -
Page 23: Oxygen Bottle Holder
Oxygen bottle holder M6 nut (reference 30145-02) Installing the Oxygen bottle holder TBHC 6x16 screw Box spanner of 10 n°4 Allen key E + R Also tighten the leg rest support, if this is already installed. Installing the Oxygen bottle User’s Guide... -
Page 24: Changing The Oxygen Bottle
Only accessories designed and provided by Promotal Accessories for this medical device are authorized for use. Changing the Oxygen bottle Chairs locks (reference 30147-01, 30147-10) Installing the chair lock The chair lock is fixed on the side of the transfer n°25 Torx screwdriver... -
Page 25: Installing The Chain
Installing the chain Screw + Plugs not supplied After having first marked, and then drilled, the wall at the planned location, fix the starter chain using 2 suitable screws + plugs (not supplied). Using the chair lock Put a token (or a 1 € coin) in the chair lock and withdraw the key. -
Page 26: Service Identification
Only accessories designed and provided by Promotal Accessories for this medical device are authorized for use. Service identification (reference SP-SWIFI) Attaching the identification plates Partially unscrew the 4 screws holding the seat Insert the identification plates Once fitted as shown in the above diagram, screw the seat back down. -
Page 27: Lifespan Of The Medical Device
Your dealer is responsible for reclaiming and processing this device at the end of its service life. Do not hesitate to contact Promotal, if necessary. We will suggest to you a solution to process this equipment Do not hesitate to contact Promotal, if necessary. We will suggest to you a solution to process this equipment in the best conditions. -
Page 28: Maintenance Notebook
Maintenance notebook User’s Guide... -
Page 29: Note
Note User’s Guide... -
Page 30: Warranty Information
No Authorization No person or fi rm is authorized to create for Promotal any other obligation or liability in connection with the products. THIS WARRANTY IS PROMOTAL’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. -
Page 31: Declaration Of Conformity
22 rue de Saint Denis de Gastines 53500 Ernée – France SRN: FR-MF-000001666 declare, under our sole responsibility, that the following medical device: Commercial name: swifi 30130-02 / 30130-02L Description: Transfer chair Basic UDI-DI: 37014094SWIFILF is a Class I medical device,... - Page 32 PROMOTAL - FRANCE www.promotal.com DIC30130-02_2121EN...
