Design IN with the smartModule
Attention!
When using an active/passive heatsink that is not from DLAG, be very careful!
The maximum depth the screws can go into the product is 3mm or the module will be
destroyed!

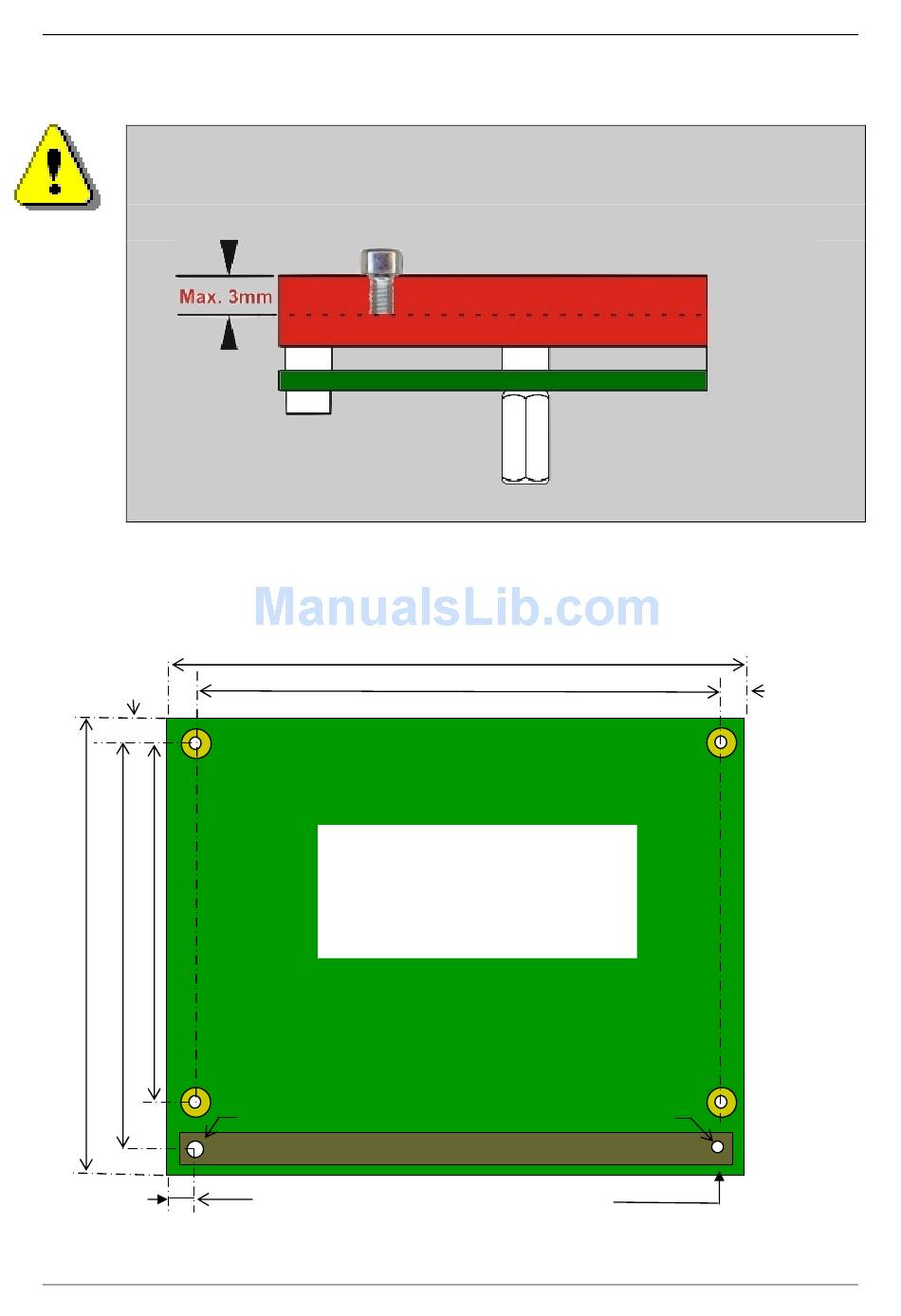

3.2. Dimensions of the smartCoreExpress Module
3.25
3.25
58.0
44.0
50.2
3.65mm
65.0mm
View of the bottom side of the
smartCoreExpress module.
All dimensions with +/-0.1mm tolerance
if not otherwise specified.
Units = millimeter.
d=1.6
58.5mm
16
SMA200 Manual V1.0
3.25
d=1.0
B1
A1
Pin 1
