Orei UHD-EX230A-K User Manual

Orei UHD-EX230A-K User Manual

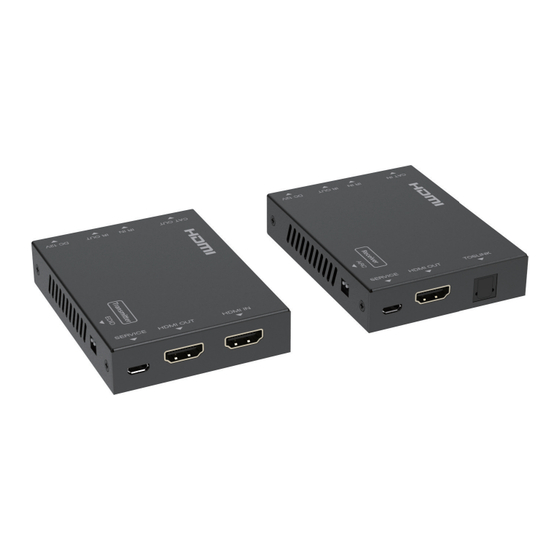

18gbps hdmi extender (70m) with poc

Advertisement

UHD-EX230A-K
18Gbps HDMI
Follow us on Youtube
Extender (70m) with POC
and Facebook
U S E R M A N U A L
www.orei.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the UHD-EX230A-K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Orei UHD-EX230A-K

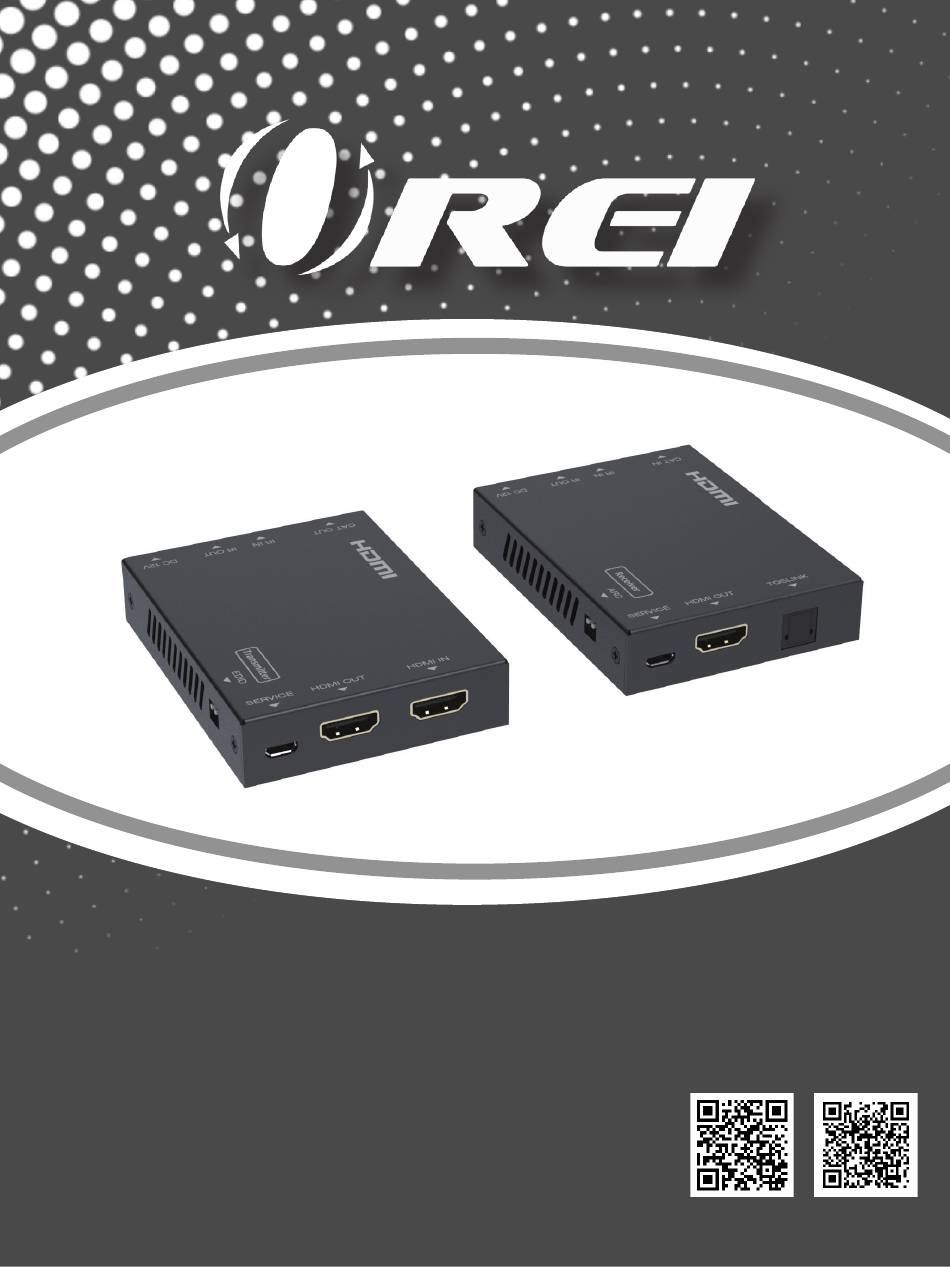

  • Page 1 UHD-EX230A-K 18Gbps HDMI Follow us on Youtube Extender (70m) with POC and Facebook U S E R M A N U A L www.orei.com...
  • Page 2: Table Of Contents

    Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this prod- uct.
  • Page 3 OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central Time Support Email - info@orei.com |Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momentarily.
  • Page 4: Introduction

    Introduction This 18Gbps HDMI Extender can extend HDMI HD signal and IR control signal to a distance up to 230ft / 70m via a single CAT6/6a cable, which can achieve zero-de- lay, uncompressed long-distance transmission between the transmitter and re- ceiver.
  • Page 5: Features

    Features HDMI2.0b and HDCP 2.2 compliant Support 18Gbps video bandwidth Support video resolution up to 4K2K@60Hz RGB/YCBCR 4:4:4 The transmission distance can be extended up to 230ft / 70m via a single CAT6/6a cable Support HDR, HDR10, HDR10+, Dolby Vision, HLG Support bi-directional IR control signal pass-through Audio formats: LPCM 7.1, Dolby True HD, DTS HD Master EDID copy pass-through function between the source device and...
  • Page 6: Package Contents

    Package Contents 18Gbps HDMI Extender (Transmitter) 1pcs 18Gbps HDMI Extender (Receiver) 1pcs IR Blaster cable (1.5 meters) 1pcs IR Wideband Receiver cable (1.5 meters) 1pcs Mounting Ears 4pcs Machine Screws (KM3*4) 8pcs 12V/1A Locking Power Adapter 1pcs User Manual 1pcs page 06...
  • Page 7: Specifications

    Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 18Gbps Video Resolution Up to 4K2K@60Hz RGB/YCBCR 4:4:4 IR Level 5Vp-p IR Frequency Wideband 20K-60KHz Transmission Distance 4K2K@60Hz 4:4:4--70m, 1080P--70m (CAT6/6a cable) Color Depth 8/10/12bit Color Space RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 HDR, HDR10, HDR10+, Dolby Vision, HLG HDMI: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio Formats...
  • Page 8 Specifications Receiver Input: 1 × CAT IN [RJ45] Output: 1 × HDMI OUT [TypeA, 19-pin female] 1 × TOSLINK Control: 1 × SERVICE [Micro-USB jack] 1 × IR IN [3.5mm Stereo Mini-jack] 1 × IR OUT [3.5mm Stereo Mini-jack] Mechanical Housing Metal Enclosure Silkscreen Color...
  • Page 9: Operation Controls And Functions

    Operation Controls and Functions Transmitter Panel Name Function Description SERVICE Firmware update port. HDMI signal loop output port. Connect to HDMI display devices HDMI OUT with HDMI cable. HDMI signal input port. Connect to HDMI source device with HDMI HDMI IN cable.
  • Page 10 Operation Controls and Functions Name Function Description Data Signal ▪ Illuminating: HDMI signal with HDCP. Indicator ▪ Flashing: HDMI signal without HDCP. (Orange) ▪ Dark: No HDMI signal. Connect to IR receiver cable, the IR receive signal will emit to the IR IN IR OUT port of the Receiver.
  • Page 11 Operation Controls and Functions Receiver Panel Name Function Description SERVICE Firmware update port. HDMI signal output port. Connect to HDMI display devices with HDMI OUT HDMI cable. Optical fiber audio output port. Connect to amplifier with optical TOSLINK cable. RJ45 connector for connecting the CAT OUT port of the Transmitter CAT IN with CAT6/6a cable.
  • Page 12 Operation Controls and Functions Name Function Description Data Signal ▪ Illuminating: HDMI signal with HDCP. Indicator ▪ Flashing: HDMI signal without HDCP. (Orange) ▪ Dark: No HDMI signal. Connect to the IR receiver cable. The IR signal will send to the IR IR IN OUT port of the Transmitter.
  • Page 13 Operation Controls and Functions IR Receiver and Blaster pin’s definition is as below: Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; When the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters.
  • Page 14: Application Example

    Application Example page 14...
  • Page 15 18Gbps HDMI Extender (70m) with POC www.orei.com © 2022...
