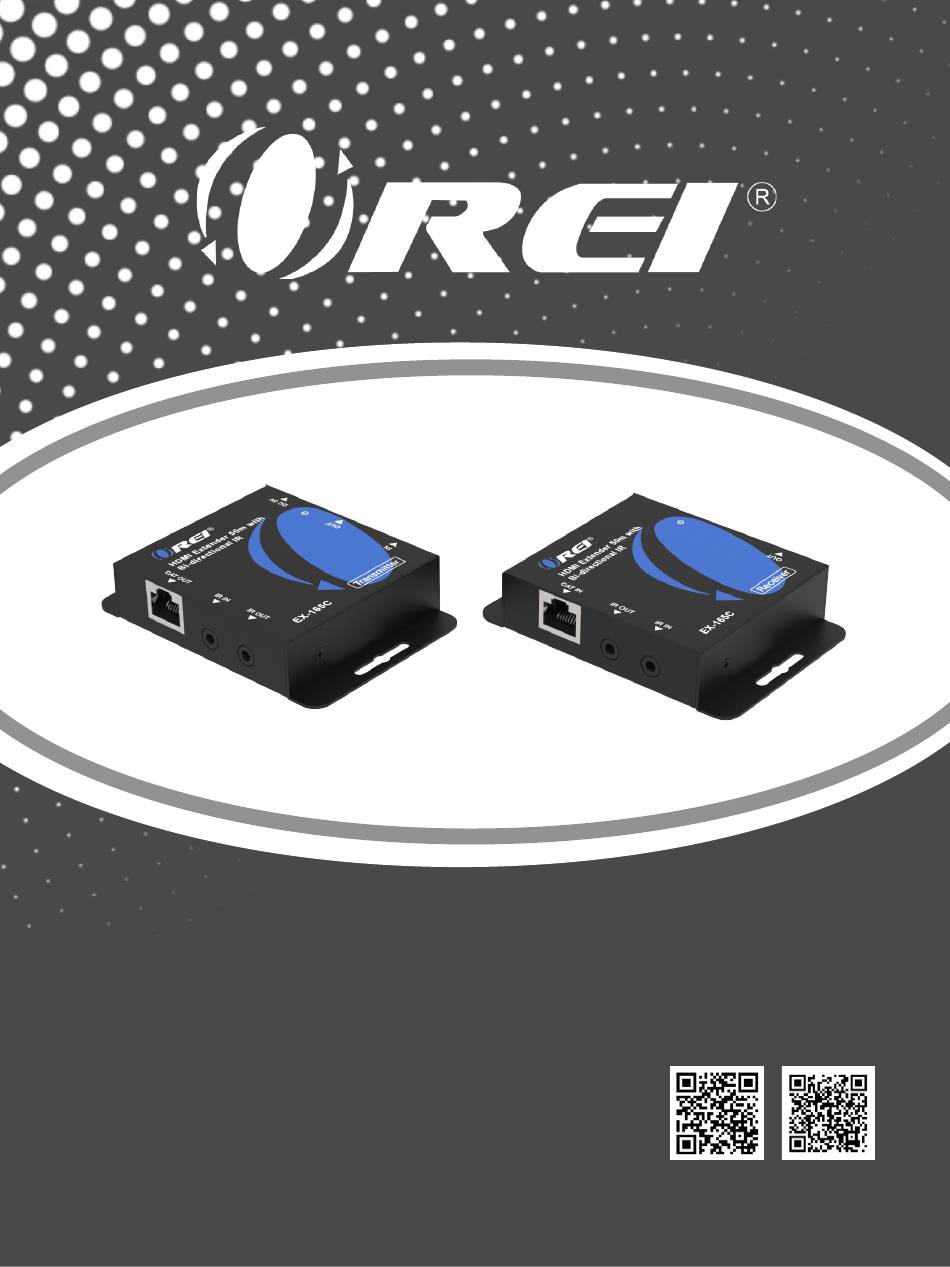

- Page 1 EX-165C HDMI Extender 50m Follow us on Youtube and Facebook with Bi-directional IR U SER M ANUAL www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions IR Pin Definition Application Example FAQs & Troubleshooting Thank you for purchasing this product For optimum performance and safety, please read these instructions care- fully before connecting, operating or adjusting this product. Please keep this manual for future reference. -
Page 3: Registration Page
OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 5 p.m. Central Time Support Email - info@orei.com | Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will re- spond momentarily. -
Page 4: Introduction
Introduction The EX-165C HDMI extender transmits media signals up to 50m/165 feet over a single CAT 6/7 cable. It supports video resolutions up to 1080p@60Hz, adheres to HDMI 1.3 and HDCP 1.4 standards, and offers a 4.95Gbps video bandwidth. The Transmitter end includes an HDMI Loop output for a local display. -
Page 5: Features
7. PCM7.1, Dobly TrueHD and DTS HD Master audio formats support 8. Power over Cable; only one power adapter required at the Transmitter 9. Long-lasting rugged build. 10. No drivers required. Package Contents EX-165C Transmitter 1pcs EX-165C Receiver 1pcs IR Wideband Blaster Cable (1.5m) 1pcs IR Wideband Receiver Cable (1.5m) -
Page 6: Specifications
Specifications Technical HDMI Compliance HDMI 1.3 HDCP Compliance HDCP 1.4 Video Bandwidth 4.95Gbps Video Resolution Up to 1080p@60Hz, 1920x1200@60Hz Color Space RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 8-bit LPCM 2.0\5.1\7.1CH, Dolby Digital, Dolby Digital+, DTS, Dolby True- Audio Formats HD and DTS-HD Master Audio Sample 48KHz... - Page 7 Specifications Connection Input: 1× HDMI IN [Type A, 19-pin female] 1× IR IN [3.5mm audio jack] Transmitter Output: 1× HDMI OUT [Type A, 19-pin female] 1× IR OUT [3.5mm audio jack] 1× CAT OUT [RJ45] Input: 1× CAT IN [RJ45] 1×...
-
Page 8: Operation Controls And Functions
Operation Controls and Functions Transmitter Panel CAT OUT IR IN IR OUT DC 5V Name Function Description Connect a CAT 6/7 cable. The other end connects to the CAT OUT Receiver IR IN Connect the IR Receiver cable IR OUT Connect the IR Blaster cable HDMI IN Connect a media device such as DVD player, Nvidia Shield, etc. -
Page 9: Ir Pin Definition
Operation Controls and Functions & IR Pin Definition Name Function Description Connect a CAT 6/7 cable. The other end connects to the Trans- CAT IN mitter IR OUT Connect the IR Blaster cable IR IN Connect the IR Receiver cable HDMI OUT Connect a display device such as TV, Monitor, etc. -
Page 10: Application Example
Application Example CAT OUT IR IN IR OUT DC 5V Transmitter Power Supply Blu-ray Player IR Blaster IR Receiver CAT6/6a Monitor Receiver CAT IN IR OUT IR IN The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. -
Page 11: Faqs & Troubleshooting
Receiver. They cannot be connected to a network switch. Still have some questions? Please feel free to contact us at: info@orei.com. OR Fill out the form on the ‘Contact Us’ page on the website. Our team will be more than happy to help you. - Page 12 HDMI Extender 50m with Bi-directional IR EX-165C www.orei.com © 2024...
