- Page 1 UHD-EX230-KVM 18Gbps HDMI Follow us on Youtube Extender (70m) with KVM and Facebook U S E R M A N U A L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this prod- uct. - Page 3 OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central Time Support Email - info@orei.com |Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momentarily.
-
Page 4: Introduction

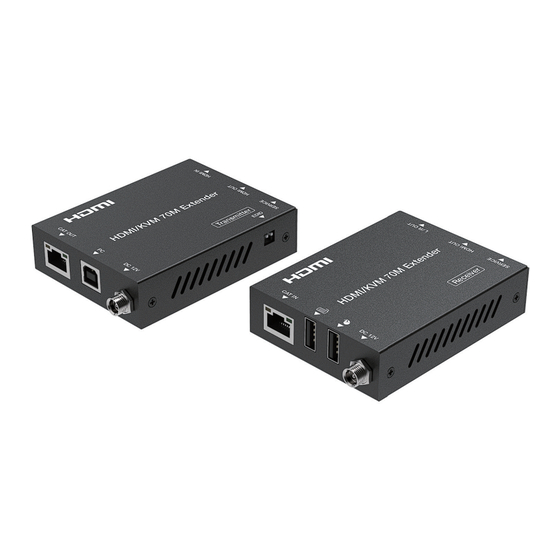

Introduction This 18Gbps HDMI Extender can extend HDMI HD signal to a distance up to 230ft / 70m via a single CAT6/6a cable, which can achieve zero-delay, uncompressed long-distance transmission between the transmitter and receiver. Video resolution is up to 4K2K@60Hz. The Extender supports KVM signal pass-through, which can remote control source device at display device. -
Page 5: Features
Features HDMI2.0b and HDCP 2.2 compliant Support 18Gbps video bandwidth Support video resolution up to 4K2K@60Hz RGB/YCBCR 4:4:4 The transmission distance can be extended up to 230ft / 70m via a single CAT6/6a cable Support HDR, HDR10, HDR10+, Dolby Vision, HLG Audio formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+) Support 3.5mm analog audio de-embedding, audio is output through... -
Page 6: Package Contents
Package Contents 18Gbps HDMI Extender (Transmitter) 1pcs 18Gbps HDBaseT Extender (Receiver) 1pcs USB-A to USB-B Cable (1.5 meters) 1pcs Mounting Ears 4pcs Machine Screws (KM3*4) 8pcs 12V/1A Locking Power Adapter 1pcs User Manual 1pcs page 06... -
Page 7: Specifications
Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 18Gbps Video Resolution Up to 4K2K@60Hz RGB/YCBCR 4:4:4 Transmission Distance 4K2K@60Hz 4:4:4--70m, 1080P--70m (CAT6 cable) Color Depth 8/10/12bit Color Space RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 HDR, HDR10, HDR10+, Dolby Vision, HLG Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,... - Page 8 Specifications Mechanical Housing Metal Enclosure Silkscreen Color Black Dimensions Transmitter / Receiver: 90mm (W)×68mm (D)×22mm (H) Weight Transmitter: 170g, Receiver: 169g Operating Temperature 32 - 104°F / 0 - 40°C Storage Temperature -4 - 140°F / -20 - 60°C Relative Humidity 20~90% RH (Non-condensing) Power Consumption (Max) 4.2W (Max)
-
Page 9: Operation Controls And Functions
Operation Controls and Functions Transmitter Panel Name Function Description SERVICE Firmware update port. HDMI signal loop output port. Connect to HDMI display devices with HDMI OUT HDMI cable. HDMI signal input port. Connect to HDMI source device with HDMI HDMI IN cable. - Page 10 Operation Controls and Functions Name Function Description Connect to PC. The computer can be accessed and controlled remotely through the USB port of the receiver (KVM function). DC 12V/1A power input port. Note that the extender supports POC function, it means that either DC 12V Transmitter or Receiver is connected to 12V/1A power supply, the other doesn’t need power supply.
- Page 11 Operation Controls and Functions Name Function Description SERVICE Firmware update port. HDMI signal output port. Connect to HDMI display devices with HDMI HDMI OUT cable. L/R OUT Analog audio output port, used for audio de-embedding output. RJ45 connector for connecting the CAT OUT port of the Transmitter CAT IN with CAT6/6a cable.
-
Page 12: Application Example
Application Example page 12... - Page 13 18Gbps HDMI Extender (70m) with KVM www.orei.com © 2022...
