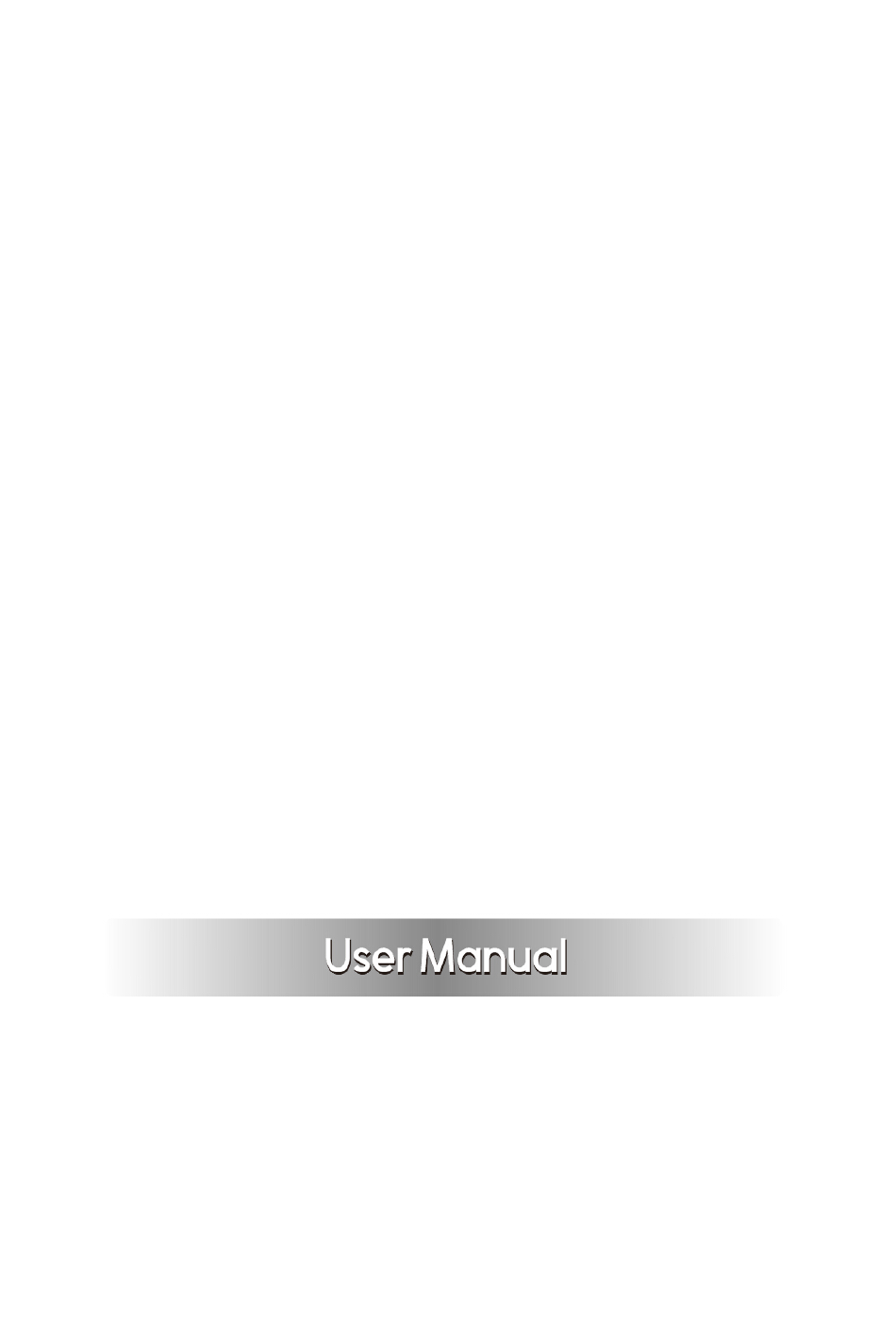

- Page 1 HDMI 150m Extender With Loopout VER 1.0 1 / 10...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions care- fully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. - Page 3 Caution The extender need to follow direct interconnection method CAT cable. The extender will go into protection mode automatically and no video out when using cross interconnection method CAT cable. 3 / 10...
-
Page 4: Introduction

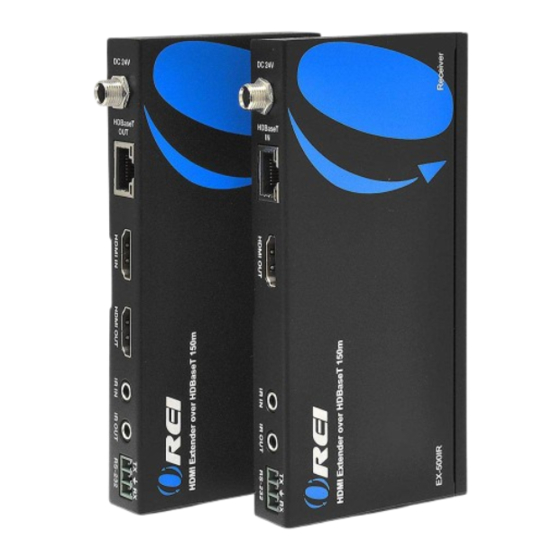

1. Introduction The HDMI Extender with Loopout can extend HDMI signal over 500 feet/150 meters to an HDMI compatible display via single Cat5e/6 cable. It also supports bi-directional Infrared control signal and RS-232 transmission together with HDMI signal, it can allow you to easily control your DVD player at TV side or control your TV at the DVD player side when using this extender. -
Page 5: Specifications
1 x Wideband IR Receiver cable 1 x 24V/1A Power Adaptor 1 x User Manual 4. Specifications Technical HDMI Compliance HDMI 1.4 HDCP Compliance HDCP 1.4 Video Bandwidth 225MHz up to1080P @60Hz YUV4:4:4、RGB4:4:4 Video Resolutions RGB, YUV4:4:4, YUV 4:2:2 Color Space Color Depth 8-bit... -
Page 6: Operation Controls And Functions
Input: AC100 - 240V 50/60Hz Power Supply Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) Power Consumption Operation 32 - 104°F / 0 - 40°C Temperature Storage temperature -4 - 140°F / -20 - 60°C Relative Humidity 20 - 90% RH (no condensation) 5. - Page 7 IR Out: Channel 1 IR Transmitter. Connect to an IR emitter cable. RS-232: Phoenix jack provide serial port control from transmitter to receiver. Connection Signal Indicator Lamp ※Illuminate: The Transmitter and Receiver are in good connections status. ※Flashing: The Transmitter and Receiver are in poor connections status. ※Dark: The Transmitter and Receiver are not connected.
- Page 8 DC 24V: Connect 24V/1A adaptor to AC wall outlet for power supply. HDBaseT In: Standard HDBaseT input port. Connect HDBaseT Transmitter with a UTP cable following the standard of direct interconnection method. HDMI Out: Connect to the HDTV or monitor HDMI input port. IR In: Channel 1 IR Receiver.
- Page 9 ※ Description 2 Bidirectional Infrared control Application Example ※ Description 3 Bidirectional RS232 control Application Example 9 / 10...
-
Page 10: Connection Diagram
6. Connection Diagram 10 / 10...
