Orei UHD-EXB350EAU-K User Manual

Orei UHD-EXB350EAU-K User Manual

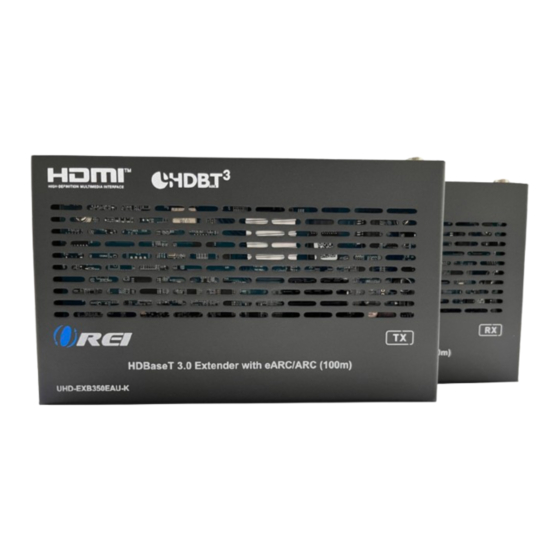

Hdbaset 3.0 extender

Advertisement

Quick Links

UHD-EXB350EAU-K
HDBaseT 3.0 Extender
Follow us on Youtube
and Facebook
with eARC/ARC (100m)
U S E R M A N U A L
www.orei.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the UHD-EXB350EAU-K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Orei UHD-EXB350EAU-K

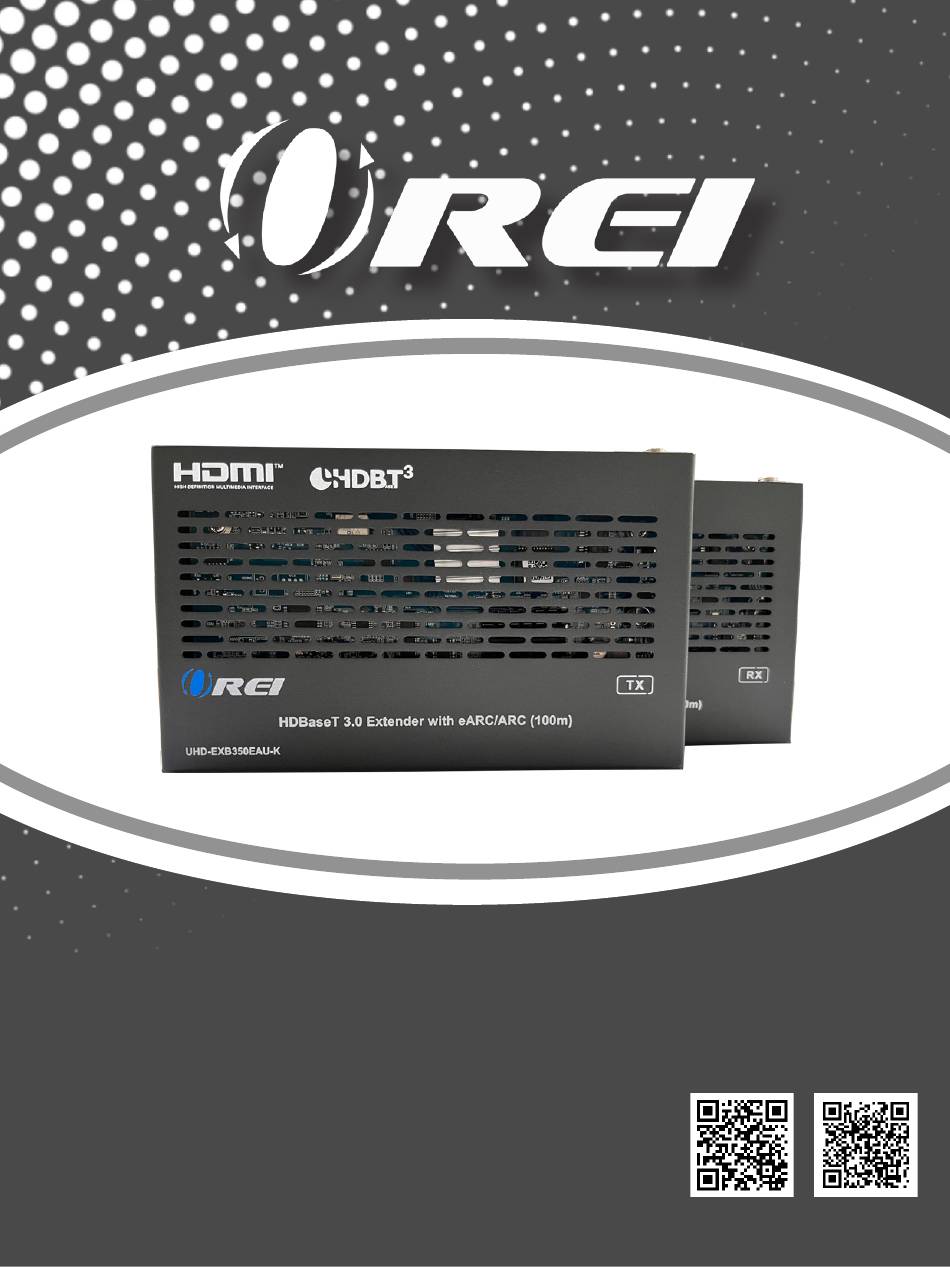

  • Page 1 UHD-EXB350EAU-K HDBaseT 3.0 Extender Follow us on Youtube and Facebook with eARC/ARC (100m) U S E R M A N U A L www.orei.com...
  • Page 2: Table Of Contents

    Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this prod- uct.
  • Page 3 OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central Time Support Email - info@orei.com |Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momentarily.
  • Page 4: Introduction

    Introduction This HDBaseT 3.0 Extender can extend uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet and USB2.0 signals up to 100m/328ft via a single CAT6A/7 cable. The Transmitter supports audio em- bedding or de-embedding. The Receiver supports audio de-embedding. It also supports eARC/ARC from RX’s HDMI output pass through to TX’s HDMI input or de-embedding to TX’s HDMI audio only and SPDIF output ports, USB 2.0 (Host/ Device is configurable) and bi-directional POC.
  • Page 5: Features

    Features HDMI 2.0b, HDCP 2.2 and HDBaseT 3.0 compliant Uncompressed 4K@60Hz 4:4:4 up to 18Gbps video bandwidth HDR, HDR10, HDR10+, Dolby Vision and HLG pass through LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD pass through Transmission distance up to 328ft/100 meters via a single CAT 6A/7 cable Supports eARC/ARC function (the audio is returned to the HDMI IN port, HDMI OUT (AUDIO ONLY) port and SPDIF OUT port of the transmitter.)
  • Page 6: Specifications

    Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 18Gbps Video Resolution Up to 4K@60Hz 4:4:4 HDBaseT Bandwidth 16Gbps on main and 2Gbps on return link HDR, HDR10, HDR10+, Dolby Vision, HLG pass through Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 Color Depth 8/10/12-bit Audio Formats...
  • Page 7 Specifications Connection Input: 1 x HDBT IN [RJ45, 8-pin female] 1 x SPDIF IN [S/PDIF] Output: 1 x HDMI OUT [Type A, 19-pin female] 1 x L/R OUT [3.5mm Stereo Mini-jack] Receiver Control: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3pin-3.81mm Phoenix jack] 1 x SERVICE [Mini-USB, Update port]...
  • Page 8: Operation Controls And Functions

    Operation Controls and Functions Transmitter Panel Name Function Description POWER LED Red LED indicates that the Transmitter is powered on. • Light on: Transmitter and Receiver are in good connection status. LINK LED • Light flashing: Transmitter and Receiver are in Low Power Mode. •...
  • Page 9 Operation Controls and Functions Name Function Description Switch to left (LOOPOUT), the HDMI OUT port is the loopout port LOOP OUT/ for the HDMI IN port; AUDIO ONLY Switch to right (AUDIO ONLY), the HDMI OUT port outputs 720P switch black screen image, and the audio is from ARC or SPDIF.
  • Page 10 Operation Controls and Functions Name Function Description SPDIF OUT Optical output port. IR IN IR signal input port, connected to IR Receiver cable. IR OUT IR signal output port, connected to IR Blaster cable. RS-232 RS-232 serial port, used for serial port command transmission. Receiver Panel Name Function Description...
  • Page 11 Operation Controls and Functions Name Function Description • Light on: The video is encrypted. VIDEO LED • Light flashing: The video is not encrypted. • Light off: No HDMI input. • Light on: The device is switched to the ARC mode. ARC LED •...
  • Page 12 Operation Controls and Functions Name Function Description Link Signal • Illuminating: Transmitter and Receiver are in good connection status. Indicator • Flashing: Transmitter and Receiver are in poor connection status. (Green) • Dark: Transmitter and Receiver are not connected. HDMI OUT HDMI signal output port, supporting eARC/ARC TV.
  • Page 13 Operation Controls and Functions Scene 1: Set the Extender to SPDIF Mode. Then switch the LOOP OUT/AUDIO ONLY switch to right, the HDMI OUT port of the transmitter is set to AUDIO ONLY. Scene 2: Set the Extender to SPDIF Mode. Then switch the LOOP OUT/AUDIO ONLY switch to left, the HDMI OUT port of the transmitter is set to LOOP OUT.
  • Page 14 Operation Controls and Functions Scene 3: Set the Extender to ARC Mode. Then switch the LOOP OUT/ AUDIO ONLY switch to right, the HDMI OUT port of the transmitter is set to AUDIO ONLY. Scene 4: Set the Extender to ARC Mode. Then switch the LOOP OUT/AUDIO ONLY switch to left, the HDMI OUT port of the transmitter is set to LOOP OUT.
  • Page 15 Operation Controls and Functions Scene 5: Set the Extender to eARC Mode. Then switch the LOOP OUT/AUDIO ONLY switch to right, the HDMI OUT port of the transmitter is set to AUDIO ONLY. Scene 6: Set the Extender to eARC Mode. Then switch the LOOP OUT/AUDIO ONLY switch to left, the HDMI OUT port of the transmitter is set to LOOP OUT.
  • Page 16 Operation Controls and Functions Audio Embedding and De-embedding The Transmitter supports audio embedding and de-embedding. The L/R IN/OUT port can be used for audio embedding or de-embedding through the L/R IN/OUT switch. • TX Audio Embedding When the L/R IN/OUT switch is switched to left, the audio from external audio device will be embedded to the L/R IN/OUT port.
  • Page 17 Operation Controls and Functions USB Mode Applications The Extender supports USB2.0 transmission, and Host/Device is configurable. Mode 1: USB forward from TX to RX Switch the HOST/DEVICE USB switch to left, then power off and reboot the transmitter to set to USB Host mode. Meanwhile, switch the DEVICE/HOST USB switch to left, then power off and reboot the receiver to set to USB Device mode.
  • Page 18 Operation Controls and Functions Mode 2: USB reverse from RX to TX Switch the HOST/DEVICE USB switch to right, then power off and reboot the transmitter to set to USB Device mode. Meanwhile, switch the DEVICE/HOST USB switch to right, then power off and reboot the receiver to set to USB Host mode.
  • Page 19 Operation Controls and Functions IR Pin Definition IR Receiver and Blaster pin’s definition as below: IR BLASTER IR RECEIVER IR BLASTER IR RECEIVER IR Signal Grounding Power 12V Note: When the angle between the IR receiver and the remote control is ± 45 °, the trans- mission distance is 0-5 meters;...
  • Page 20: Application Example

    Application Example The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. page 20...
  • Page 21 HDBaseT 3.0 Extender with eARC/ARC (100m) www.orei.com © 2022...
