Summary of Contents for Orei EX-330-KVM

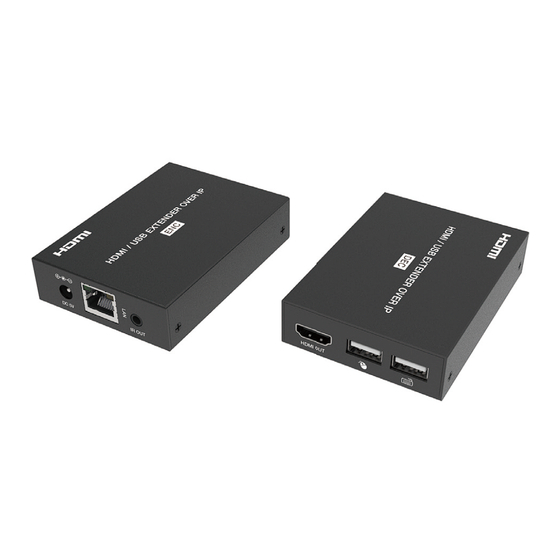

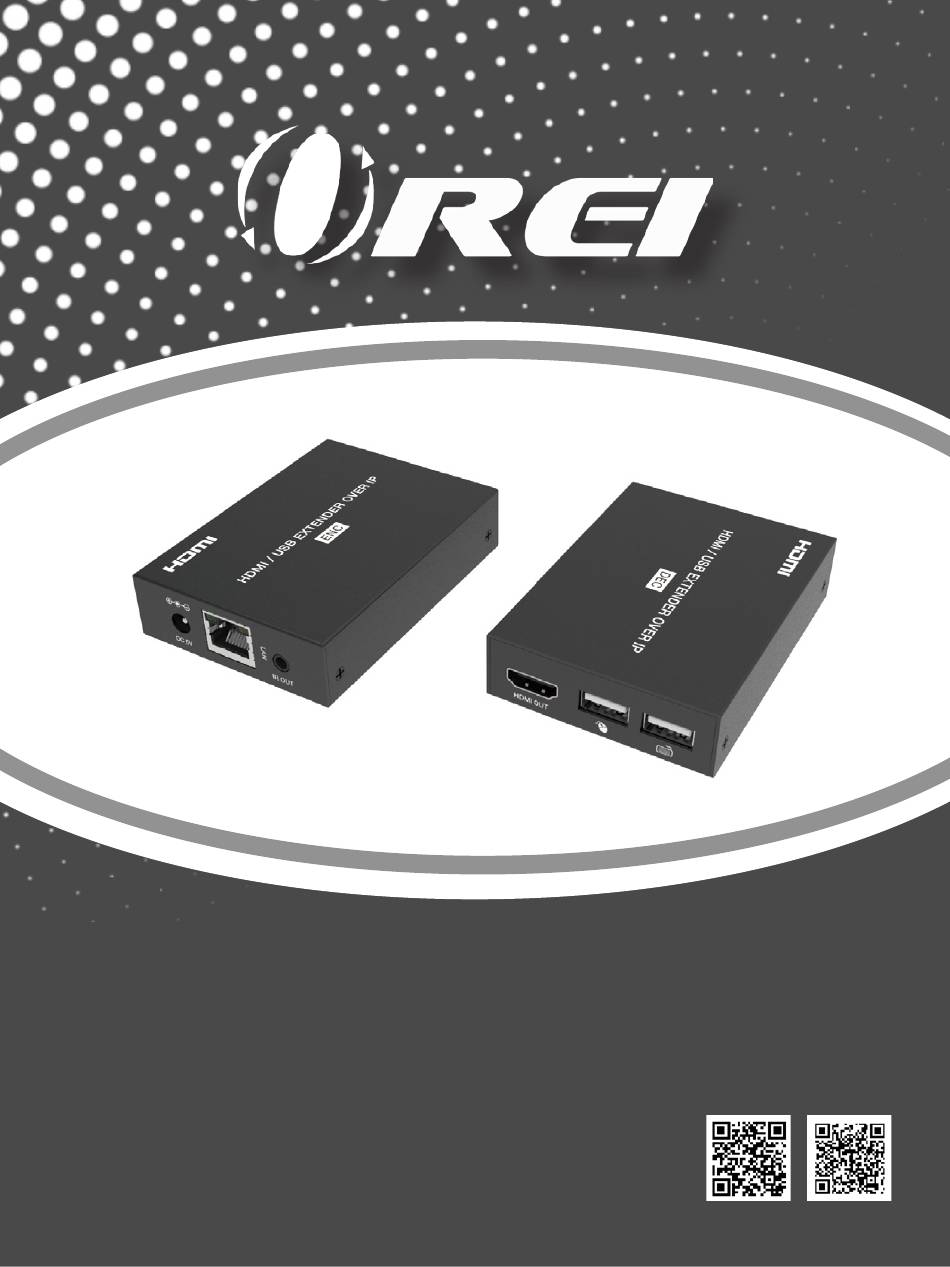

- Page 1 EX-330-KVM HDMI over IP Extender with USB KVM Function (150M) Follow us on Youtube and Facebook US E R MA NUA L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjust- ing this product. - Page 3 OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central Time Support Email - info@orei.com |Support Number - 877-290- 5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momentarily.
-
Page 4: Introduction
Introduction HDMI over IP Extender adopts standard H.265 encoding / decoding. It can distribute one HD content to one HD display device or to mul- tiple HD display devices over a standard 1G network switcher, and extends distance up to 150m/492ft between encoder and decoder via a Cat5e/6 cable. -
Page 5: Features
Features HDCP 1.4 compliant Support 6.75Gbps video bandwidth Input video resolution is up to 1920×1200@60Hz YCbCr 4:4:4; Output video resolution is up to 1080P@60Hz YCbCr 4:4:4 Extend transmission distance up to 150m/492ft between en- coder and decoder via a single Cat5e/6 cable Adopt standard H.265 encoding / decoding Support 1G standard IP swticher / router / hub Support one-way IR control signal transmission... -
Page 6: Specifications
Specifications Technical HDCP Compliance HDCP 1.4 USB Version USB 1.1 Video Bandwidth 6.75Gbps Input: Up to 1920×1200@60Hz Video Resolution Output: Up to 1080P@60Hz Input: LPCM 2.0CH 32KHz/44.1KHz/48KHz HDMI Audio Formats Output: LPCM 2.0CH 48KHz IR Frequency 20Hz ~ 60KHz Compression Tech- H.265 nology Request for Switcher... - Page 7 Specifications Mechanical Housing Metal Enclosure Silkscreen Color Black Dimensions 67mm (W) × 91.5mm (D) × 17.5mm (H) Weight Encoder: 155g, Decoder: 150g Input: AC100 - 240V 50/60Hz Power Supply Output: DC 5V/1A Power Consumption Encoder: 2.9W, Decoder: 3.65W (Max) Operation -10°C ~ 50°C / 14°F ~ 122°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F...
-
Page 8: Operation Controls And Functions
Operation Controls and Functions Encoder Panel Name Function Description DC 5V 5V 1A input port for power supply. The LAN port is connected to decoder’s LAN port or connected to switcher / router / hub with CAT cable. Connect to IR blaster cable. The IR blaster signal is from IR OUT IR IN of decoder. - Page 9 Operation Controls and Functions Decoder Panel Name Function Description DC 5V 5V 1A input for power supply. The LAN port is connected to encoder’s LAN port or connected to switcher / router / hub with CAT cable. Connect to IR receiver cable. The IR signal is sent to IR IR IN OUT port of encoder.
- Page 10 Operation Controls and Functions IR Pin Definition IR Receiver and Blaster pin’s definition as below: Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters.
-
Page 11: Application Example
Application Example page 11... - Page 12 Application Example page 12...
- Page 13 HDMI over IP Extender with USB KVM Function (150M) www.orei.com © 2023...
