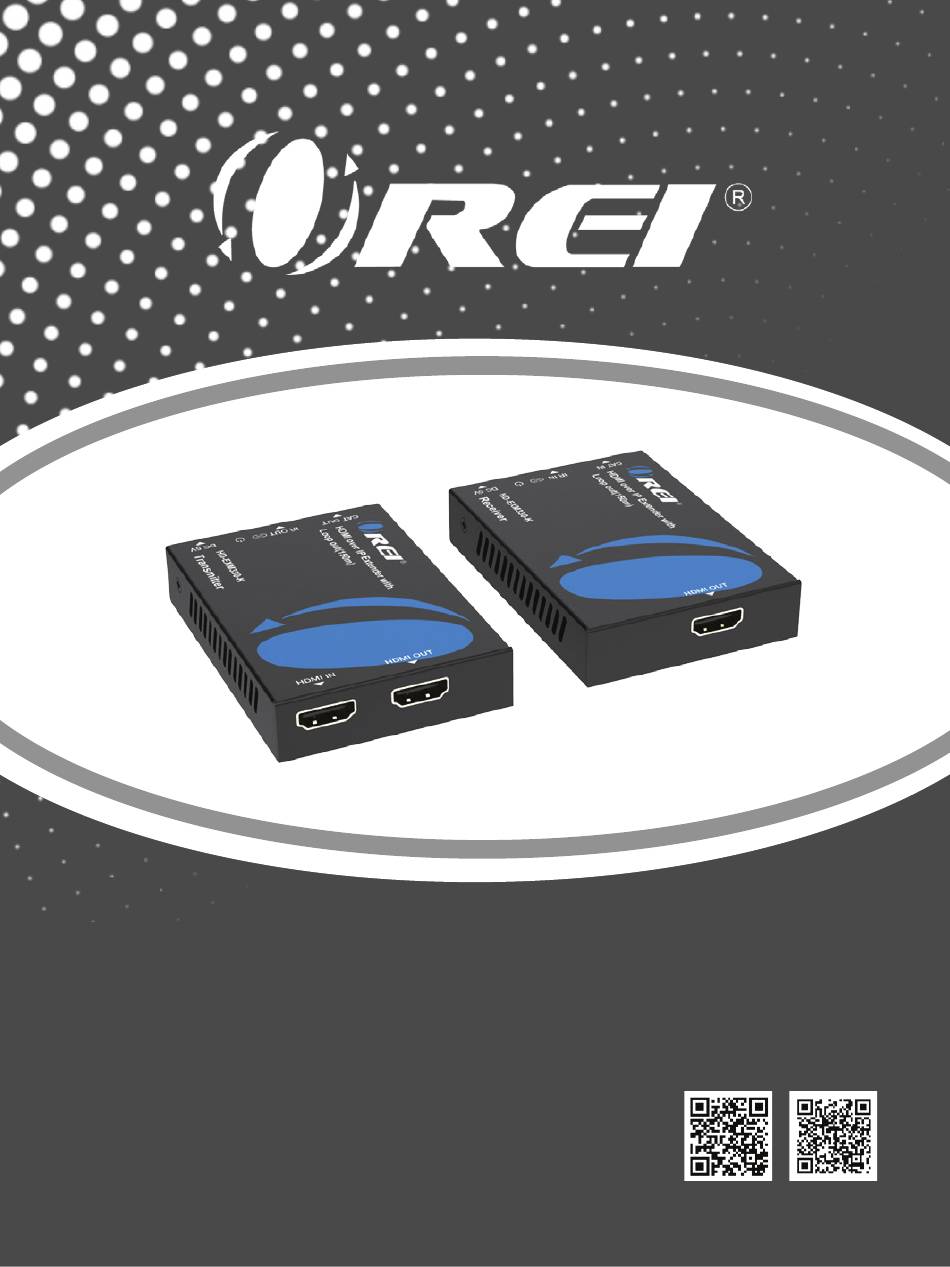

- Page 1 HD-EXM330-K HDMI over IP Extender Follow us on Youtube and Facebook with Loop Out (150m) US E R M ANUA L www.orei.com page 1...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. - Page 3 OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central Time Support Email - info@orei.com | Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momentarily.
-
Page 4: Introduction

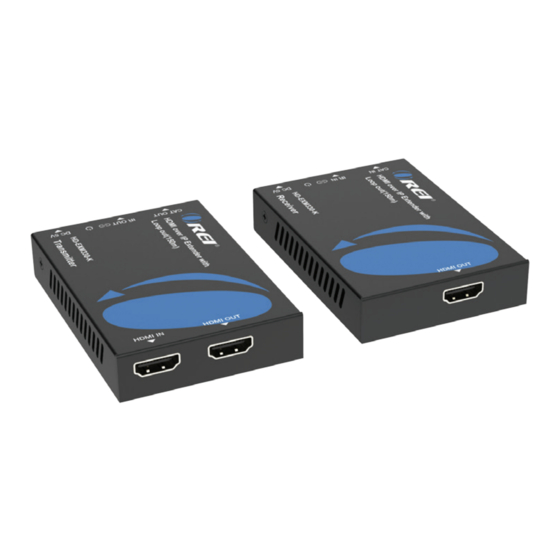

Introduction The HD-EXM330-K is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices over a standard 1G network Switch, and extends distance up to 150m/492ft between encoder and decoder via a CAT6 cable. -
Page 5: Features
ENC) Support PCM 2.0ch-32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz Compact design for easy and flexible installation Package Contents Item Item HD-EXM330-K (Encoder) 1pcs HD-EXM330-K (Decoder) 1pcs IR Blaster cable IR Wideband Receiver 1pcs or / and 1pcs (1.5 meters) cable (1.5 meters) -
Page 6: Specifications
Specifications Technical HDCP Compliance HDCP 1.4 HDMI Compliance HDMI 1.4 Video Bandwidth 6.75Gbps Video Network Bandwidth Up to 1920×1200@60Hz Video Resolution Note: This product does not support interlaced signals, that is, i-standard signals. Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Input: 8/10/12-bit;... - Page 7 Specifications Connection Input: 1 × HDMI IN [Type A, 19-pin female] Output: 1 × HDMI OUT [Type A, 19-pin female] Encoder 1 × CAT OUT [RJ45 connector] Control: 1 × IR OUT [3.5mm Stereo Mini-jack] Input: 1 × CAT IN [RJ45 connector] Decoder Output: 1 ×...
-
Page 8: Operation Controls And Functions
Operation Controls and Functions Encoder Panel HDMI IN HDMI OUT CAT OUT IR OUT DC 5V Name Function Description HDMI input port, connected to HDMI source device such HDMI IN as DVD or Set-top box with an HDMI cable. HDMI loop output port, connected to the HDMI display HDMI OUT device such as TV or Monitor with an HDMI cable. - Page 9 Operation Controls and Functions Decoder Panel HDMI OUT CAT IN IR IN DC 5V 3 4 5 Name Function Description HDMI output port, connected to the HDMI display device HDMI OUT such as TV or Monitor with HDMI cable. The CAT IN port is connected to the CAT OUT port of CAT IN encoder or connected to Switch / router / hub with CAT6 cable for receiving signal from encoder.
- Page 10 Operation Controls and Functions IR Pin Definition IR Receiver and Blaster pin’s definition is as below: IR Blaster IR Blaster Signal Power IR Receiver IR Signal IR RECEIVER IR BLASTER Power Grounding page 10...
-
Page 11: Application Example
Application Example DVD or Blu-ray Player HDMI IN HDMI OUT HDMI OUT Decoder Encoder CAT IN IR IN DC 5V CAT OUT IR OUT DC 5V Power Supply Power Supply Ethernet CAT6 IR Receiver IR Blaster Figure 1: Encoder connects Decoder directly The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. - Page 12 Application Example DVD or Blu-ray Player HDMI Cable HDMI Cable HDMI IN HDMI OUT CAT OUT IR OUT DC 5V Encoder Ethernet CAT6 L2 Switch HDMI Cable CAT IN IR IN DC 5V HDMI OUT Decoder HDMI Cable CAT IN IR IN DC 5V HDMI OUT...
- Page 13 HDMI over IP Extender with Loop Out (150m) HD-EXM330-K www.orei.com © 2023 page 13...
