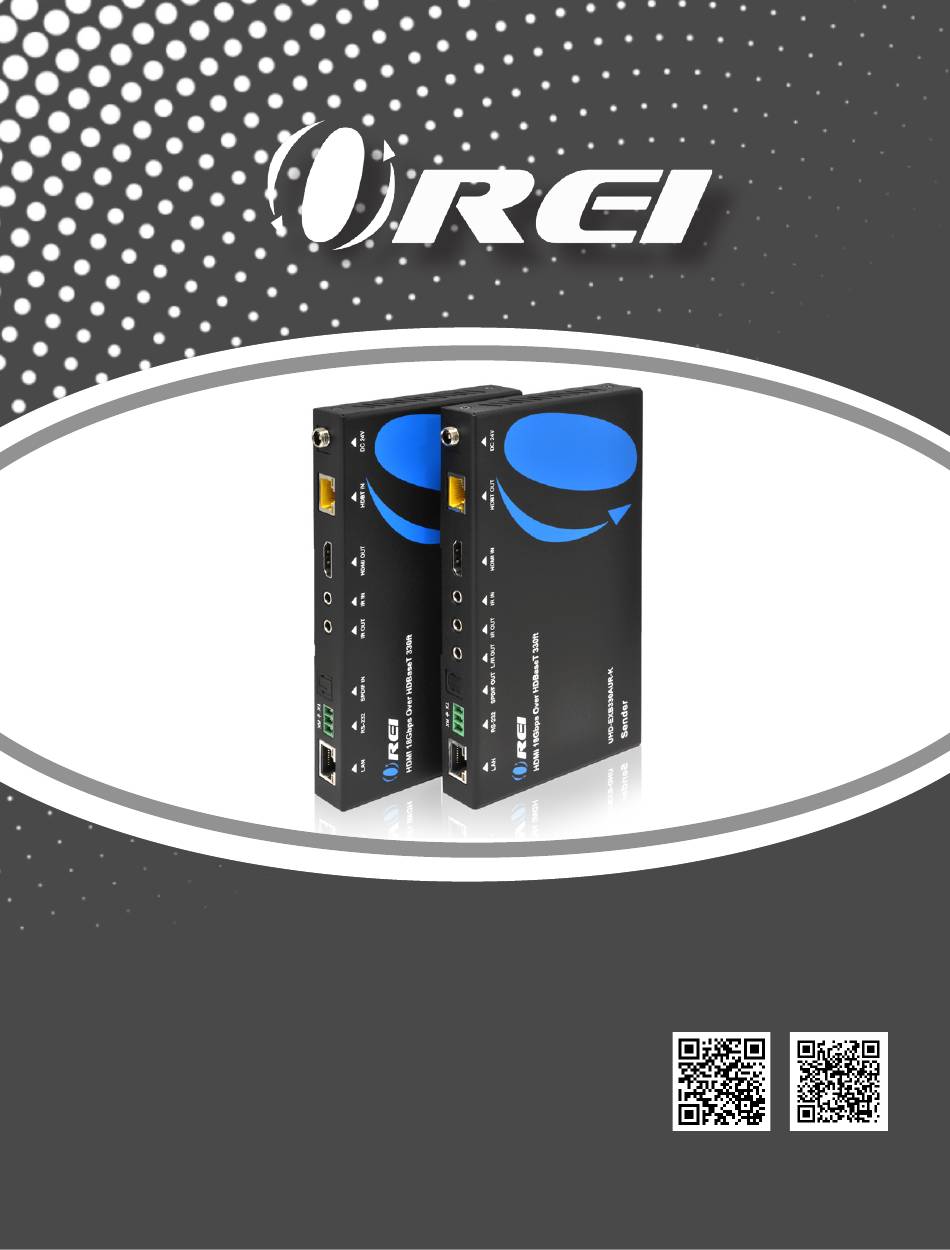

- Page 1 18Gbps HDMI over Follow us on Youtube and Facebook HDBaseT Extender with Bi-directional IR (100M) U S E R M A N U A L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction. Features. Package Contents. Specifications. Operation Controls and Functions. 5.1 Transmitter Panel. 5.2 Receiver Panel. 5.3 Audio Signal Output Switching. 5.4 IR Pin Definition. Application Example. Thank you for purchasing this product For optimum performance and safety, please read these instructions care-fully before connecting, operating or adjusting this product. - Page 3 OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central Time Sup- port Email - info@orei.com | Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momentarily.
-
Page 4: Introduction
Introduction This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR and internet signal, at the distance of up to 328ft / 100 meters be- tween transmitter and receiver via a single CAT6a/7 cable and support resolution up to 4K2K@60Hz 4:4:4. -
Page 5: Features
Features HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant Support 18Gbps video bandwidth Video resolution is up to 4k2k@60Hz YUV 4:4:4 The maximum transmission distance is 328ft / 100 meters via a single CAT6a/7 cable Support ARC (Audio Return Channel) function With bi-directional IR, RS-232 and CEC pass-through Support USB KVM function HDR, HDR10+, Dolby Vision and HLG function supported... -
Page 6: Specifications
Technical HDCP Compliance HDCP 2.2 / HDCP 1.4 Video Bandwidth 18Gbps Video Resolution 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All PC resolutions including 1920 x 1200 Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 Color Depth 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr... - Page 7 Connection Inputs: Transmitter 1x HDMI Type A [19-pin female] Outputs: 1x HDBT OUT [RJ45, 8-pin female] 1x SPDIF OUT [S/PDIF] 1×L/R OUT [3.5mm Stereo Mini-jack] 1×LAN [RG45] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini- jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port] 1×USB HOST [USB Type B]...
- Page 8 Mechnaical Storage Temperature I-4 - 140°F / -20 - 60°C Relative Humidity 20 - 90% RH (no condensation) Resolution Distance 4K2K 296ft /90M 1080P 328ft /100M Resolution / Cable 4K60 - 4K30 - 1080P60 - Length Feet / Meters Feet / Meters Feet / Meters HDMI IN / OUT 16ft / 5M...
-
Page 9: Operation Controls And Functions
Operation controls and functions 5.1 Transmitter Panel Name Function/Description Power LED Red LED is on when the transmitter is working. LED is off when the transmitter is on standby. ARC LED Connect to HDMI display device such as TV or Projector. SPIDIF LED Green LED is on when SPDIF OUT port outputs the audio signal returned from SPDIF IN on receiver. - Page 10 Operation controls and functions Name Function/Description Illuminate: Transmitter and Receiver are in good connection status. Connection Signal Indicator Flash: Transmitter and Receiver are in poor connection status. lamp (on the left side of the HDBT OUT port) Dark: Transmitter and Receiver are not connected. Illuminate: HDMI signal with HDCP.
-
Page 11: Receiver Panel
Operation controls and functions 5.2 Receiver Panel Name Function/Description Power LED Red LED is on when the receiver is working. LED is off when the receiver is on standby. ARC LED Green LED is on when ARC function is turned on. SPIDIF LED Green LED is on when SPDIF OUT port outputs the audio signal returned from SPDIF IN on receiver. - Page 12 Operation controls and functions Name Function/Description Illuminate: Transmitter and Receiver are in good connection status. Connection Signal Indicator Flash: Transmitter and Receiver are in poor connection status. lamp (on the left side of the HDBT IN port) Dark: Transmitter and Receiver are not connected. Illuminate: HDMI signal with HDCP.
-
Page 13: Audio Signal Output Switching
Operation controls and functions 5.3 Audio Signal Output Switching Switch the output audio signal source for SPDIF OUT and L/R OUT port via the “SWITCH” button on the panel (the corresponding LED will illuminate). The states of ARC LED and SPDIF LED indicate the audio output logic, as shown in the table below: ARC LED SPDIF LED State... -
Page 14: Application Example
Application Example page 14... - Page 15 Application Example page 15...
- Page 16 Application Example page 16...
- Page 17 page 17...
- Page 18 18Gbps HDMI over HDBaseT Extender with Bi-directional IR (100M) www.orei.com © 2020...
