A C C E S S O R Y I N S T A L L A T I O N
BARNDOORS
Please note: Barndoors are an optional accessory that must be purchased separately.
1. Install and secure the included
magnetic LED array cover. (Note:
Not required when using Barn-
doors)
2. Place the Barndoor attachment
over the front of the unit. Align
and insert the 4 barndoor thumb-
screws into the matching holes
located on each side of unit (2 on
each side). Tighten the thumb-
screws to secure the barndoors in
place. DO NOT overtighten.

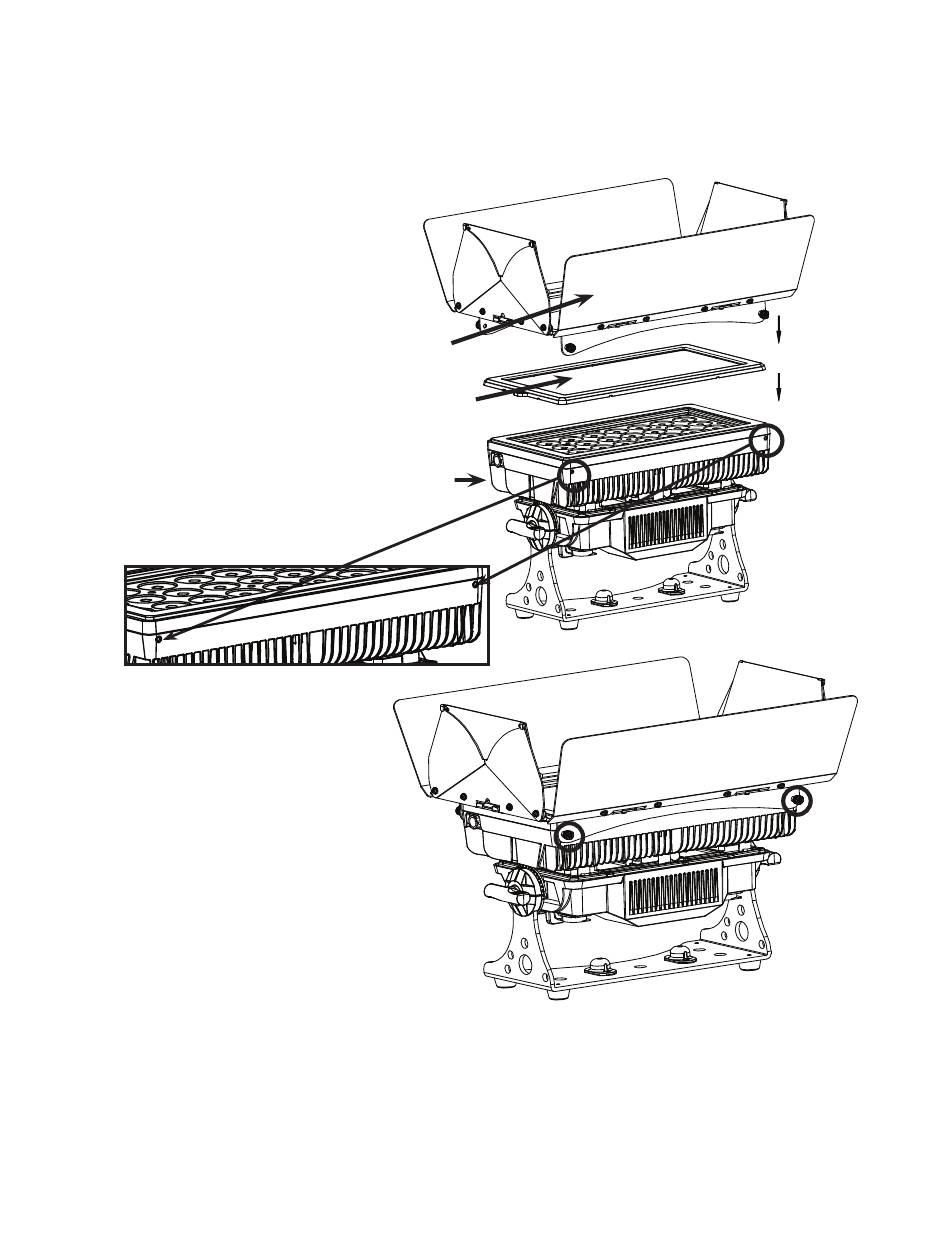

Barn Doors
LED Array Cover
32 Hex Panel IP
13
Barn Door Installation
