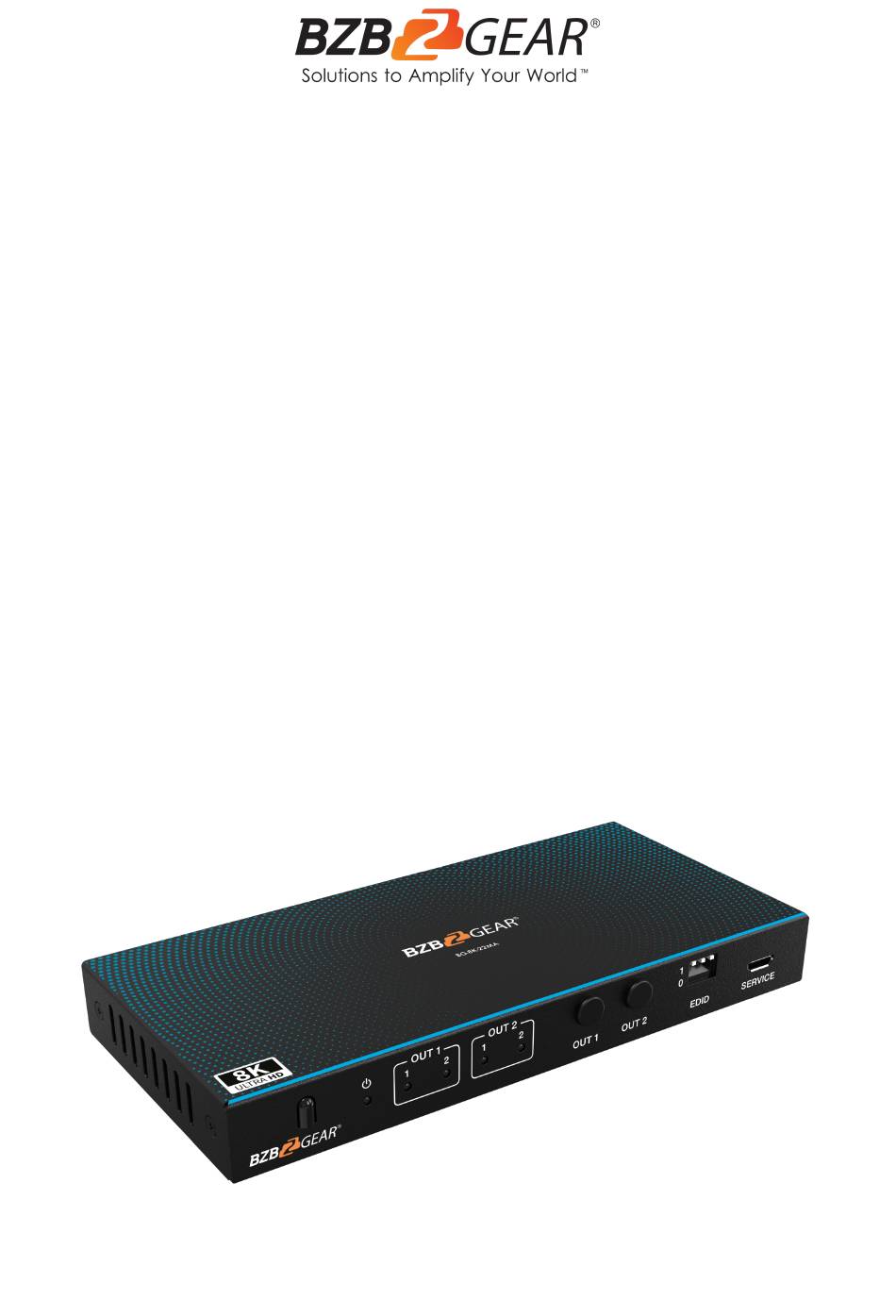

  • Page 1 BG-8K-22MA 8K HDMI 2x2 Matrix Switcher User Manual...
  • Page 2 BZBGEAR BG-8K-22MA PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-8K-22MA PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions IR Remote Application Diagram Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 4: Statement

    BZBGEAR BG-8K-22MA PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation.

  • Page 5: Introduction

    PRODUCT MANUAL Introduction The BG-8K-22MA is an 8K HDMI 2x2 matrix switcher that can switch any of the two HDMI input signals to either output and also distribute the a signal to two displays simultaneously. It supports video resolutions up to 8K@60Hz 4:2:0, features advanced EDID management, and audio de-embedding functionality (output through the optical and analog ports).

  • Page 6: Specifications

    BZBGEAR BG-8K-22MA PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 40Gbps Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, Video Resolution 4K@120Hz 4:4:4 10bit Color Depth 8/10/12-bit Color Space RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0...

  • Page 7: Operation Controls And Functions

    BZBGEAR BG-8K-22MA PRODUCT MANUAL Operation Controls and Functions Front Panel Rear Panel Name Function Description IR Window IR input signal receiving window. The power LED light is illuminated green when the device is working, and red POWER LED when the device is in standby.

  • Page 8: Ir Remote

    BZBGEAR BG-8K-22MA PRODUCT MANUAL IR Remote : Power on the product or set it to standby mode. 1 / 2 : Press 1 or 2 buttons to select an HDMI signal source to the corresponding OUTPUT port. : Press this button to cyclically switch HDMI signal sources on the corresponding OUTPUT port.

  • Page 9: Tech Support

    BZBGEAR BG-8K-22MA PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions.

  • Page 10: Warranty

    BZBGEAR BG-8K-22MA PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty.

  • Page 11: Mission Statement

    BZBGEAR BG-8K-22MA PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog.

  • Page 12: Copyright

    BZBGEAR BG-8K-22MA PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
