BZB Gear BG-UM88-150L-KIT User Manual

18gbps 8x8 hdbaset (150m) matrix
Hide thumbs Also See for BG-UM88-150L-KIT:
Table of Contents

Advertisement

Quick Links

Download this manual

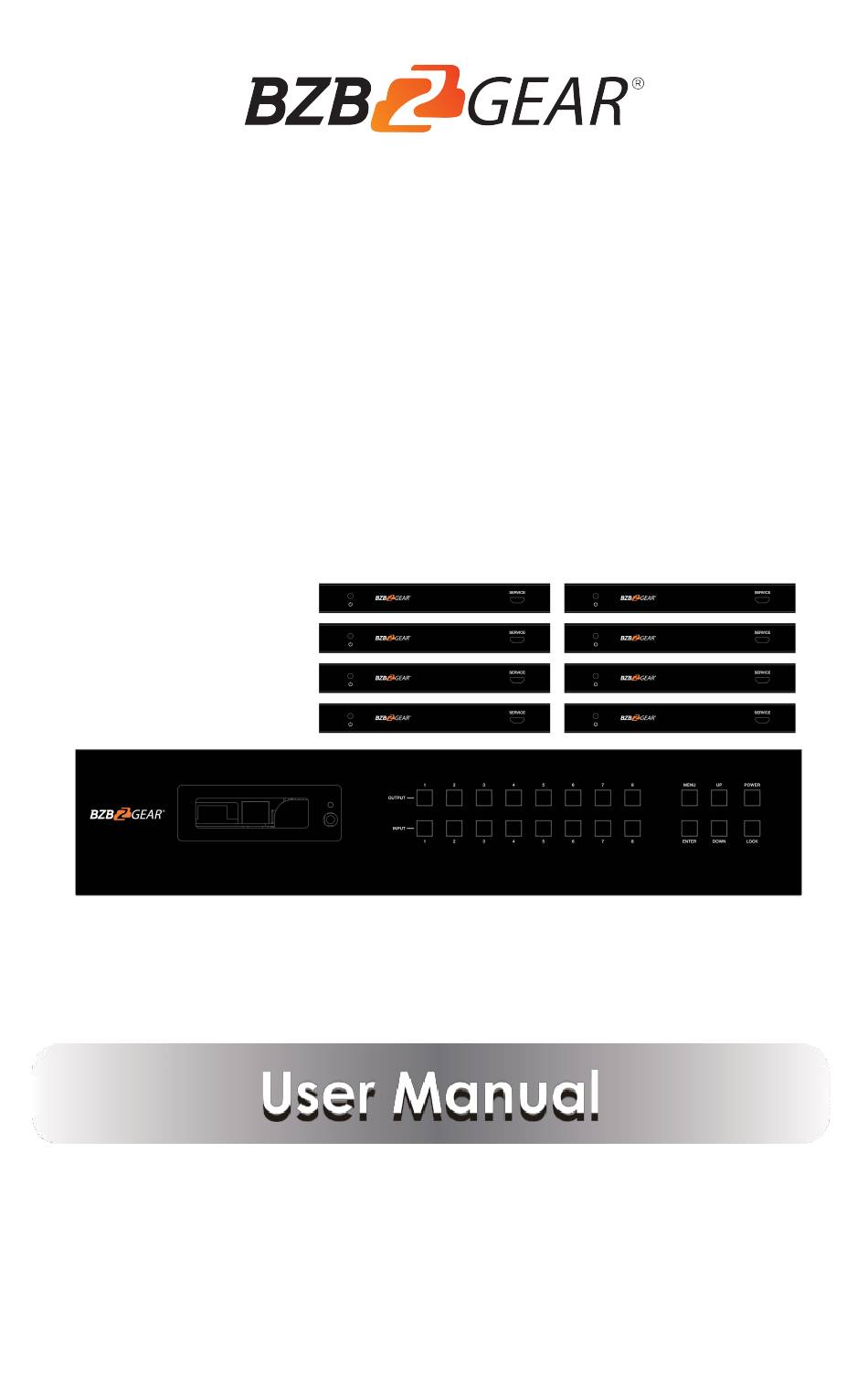

BG-UM88-150L-KIT
18Gbps 8x8 HDBaseT (150m) Matrix
Contact
1.888.499.9906 | support@bzbgear.com | bzbgear.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-UM88-150L-KIT and is the answer not in the manual?

Questions and answers

Related Manuals for BZB Gear BG-UM88-150L-KIT

Summary of Contents for BZB Gear BG-UM88-150L-KIT

  • Page 1 BG-UM88-150L-KIT 18Gbps 8x8 HDBaseT (150m) Matrix Contact 1.888.499.9906 | support@bzbgear.com | bzbgear.com...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction The BG-UM88-150L-KIT 18Gbps 8x8 HDBaseT(150M) Matrix can connect 8 HDMI sources to 16 displays. The eight HDMI outputs are mirrored to eight HDBaseT outputs that run simultaneously. The HDBaseT output can extend a 4K2K@60Hz 4:4:4 resolution signal up to 492ft /150m via a single Cat 5e/6/7 cable. Audio can be de-embedded via the analog and digital coax ports.

  • Page 4: Package Contents

    3. Package Contents ① 1 x BG-UM88-150L Matrix ② 8 x HDBaseT Receivers ③ 1 x Matrix IR Remote ④ 1 x 100~240V AC 50/60Hz Power cable ⑤ 1 x RS-232 serial cable (1.5 meters, male to female head) ⑥ 8 x 3-pin Phoenix Connectors & 8 x 5-pin Phoenix Connectors ⑦...
  • Page 5 Connection Inputs: 8 x HDMI Type A [19-pin female] Outputs: 8 x HDMI Type A [19-pin female] 8 × HDBaseT port [RJ45] 8 × Coaxial audio [3.5mm Stereo Mini-jack] 8 × connector] Matrix balanced analog audio [5-pin Phoenix Controls: 9 x IR IN [3.5mm Stereo Mini-jack] 9 x IR OUT [3.5mm Stereo Mini-jack] 1 ×...

  • Page 6: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Matrix Panel Front Panel Name Function Description Display matrix switching status, input / output port, EDID, OLED screen Baud rate, IP Address. The LED will illuminate green when functioning normally, Power LED and red when on standby. Press an output button (1~8) first, and then press an OUTPUT / input button (1~8) to select the corresponding input...
  • Page 7 Rear Panel Name Function Description Connect the IR blaster cable: The IR emit signal will IR OUT (1-8/ come from the “IR IN” port of the HDBaseT Receiver. ALL) ports Connect the IR receiver cable: The IR receive signal will emit IR IN (1-8/ALL) to the “IR OUT”...

  • Page 8: Hdbaset Receiver Panel

    5.2 HDBaseT Receiver Panel Name Function Description The red LED will illuminate when the receiver is powered on. Power LED SERVICE port Firmware update port. DC 24V/1A power supply input port. Note: The Matrix supports POC function which means that either DC 24V the transmitter or receiver is powered on by 24V/1A power adapter, and the corresponding unit doesn’t require power.

  • Page 9: Ir Remote

    6. IR Remote ① Power on or Standby: Power on, or set the Matrix to standby mode. ② Input 1/2/3/4/5/6/7/8: Select input source button. : Select the last or next input source button. ③ Output 1/2/3/4/5/6/7/8 button: Select output source button.

  • Page 10: Ir Control System

    7. IR Control System The BG-UM88-150L-KIT is not only a matrix switch but also an extender that supports bi- directional IR control. When the Matrix is connected to HDBaseT Receiver through Cat 5e/6/7 cable, the remote display device (HDBaseT), or input source device (Matrix) may be controlled through the IR signal transmission.
  • Page 11 At HDBaseT receiver (Remote end): The IR signal follows video switching. For example, the HDMI output signal on the HDBaseT Receiver 1 is from the HDMI INPUT 2 port, so the IR input signal of the HDBaseT Receiver 1 will emit to the IR OUT 2 port of the Matrix. The HDMI output signal on the HDBaseT Receiver 5 is from the HDMI INPUT 4 port.

  • Page 12: Ir Cable Pin Assignment

    8. IR Cable Pin Assignment 9. EDID Management The Matrix has 21 factory defined EDID settings, 2 user-defined EDID modes, and 16 copy EDID modes. Select "defined EDID" mode, or "copy EDID" mode to input port through on- panel button, RS-232 control or Web GUI. On-panel button operation: the initial OLED display screen, press the “MENU”...
  • Page 13 The defined EDID settings list of the product is shown below: EDID Mode EDID Description 1080p, Stereo Audio 2.0 1080p, Dolby/DTS 5.1 1080p, HD Audio 7.1 1080i, Stereo Audio 2.0 1080i, Dolby/DTS 5.1 1080i, HD Audio 7.1 3D, Stereo Audio 2.0 3D, Dolby/DTS 5.1 3D, HD Audio 7.1 4K2K30_444, Stereo Audio 2.0...

  • Page 14: Webgui User Guide

    10. WebGUI User Guide The Matrix may be controlled by using a WebGUI. The operation method is shown below: Step 1: Find the current IP Address. The default IP address is 192.168.1.100. The current Matrix IP address may be found in two ways: 1: Find the IP address via panel buttons.
  • Page 15 After entering the WebGUI page, the following login page will be displayed: Select the username from the list and enter the password. The default login information: User Admin Username user admin Password After entering the password, click the “LOGIN” button and the following Status page will display.
  • Page 16 ■ Video Page The following operations may be performed on the Video page: ① Output: The current OUTPUT port of the device. The input signal source may be selected. ② Input: Click the drop-down menu to select the input source for the corresponding OUTPUT port.
  • Page 17 Set EDID for the User Click the “Browse” button, then select the bin file. Selecting the wrong EDID file will cause the prompt below to display: Select the correct file, then check the name of the selected file. Select “User 1” or “User 2”, then click “Upload”.
  • Page 18 ■ CEC Page Perform the CEC management on this page: ① Input Control: Control the operation of each input source by pressing the icons on the page. Multiple inputs may be controlled simultaneously. ② Output Control: Control the operation of each display, such as power on/off, volume +/-, and active source switching.
  • Page 19 Click “OK” to search the IP Address again, as shown in the figure below: After searching has completed, it will switch to the login page, and the default network setting has been completed. Modify User Password Click the “User” button, enter the correct Old Password, New Password, and Confirm Password, then click “Save”.
  • Page 20 ■ System Page ① Panel Lock: Click to lock/unlock panel buttons. “On” indicates that panel buttons are unavailable; “Off” indicates panel buttons are available. ② Beep: Click to turn on/off the beep. ③ LCD: Turn the LCD on/off, and set the turn-on time (15s/30s/60s). ④...

  • Page 21: Rs-232 Control Command

    11. RS-232 Control Command The BG-UM88-150L-KIT supports RS-232 control. A serial cable with RS-232 male head and DB9 transfer USB male head is required. The RS-232 head of the serial cable is connected to the RS-232 control port with DB 9 at the rear of the Matrix, and the USB head of the serial cable is connected to a PC.
  • Page 22 Example Function Description Feedback Command Code Default Setting Get the connection status of the r link in x! r link in 1! hdmi input 1: connect x input port，x=0~8(0=all) Get the connection status of the hdmi output 1: connect r link out y! r link out 1! y output port，y=0~8(0=all) hdbt output 1: connect...
  • Page 23 Example Function Description Feedback Command Code Default Setting enable hdbt output 1 stream disable hdbt output 1 Set hdbt output y stream on/off, s hdbt 1 stream 1! stream s hdbt y stream z! y=0~8(0=all) enable z=0~1(0:disable,1:enable) s hdbt 0 stream 1! enable hdbt all outputs stream disable hdbt all outputs...
  • Page 24 Example Function Description Feedback Default Setting Command Code r edid data hdmi y! Get the EDID data of the hdmi r edid data hdmi 1! EDID: 00 FF FF FF FF FF FF 00 ……… output y port，y=1~8 Get the EDID data of the hdbt r edid data hdbt 1! EDID: 00 FF FF FF FF r edid data hdbt y! FF FF 00 ………...
  • Page 25 Example Function Description Feedback Command Code Default Setting Network Setting IP Mode: Static IP: 192.168.1.72 Subnet Mask: 255.255.255.0 r ipconfig! Get the Current IP Configuration r ipconfig! Gateway: 192.168.1.1 TCP/IP port=8000 Telnet port=10 Mac address: 00:1C:91:03:80:01 Mac address: r mac addr! Get network MAC address r mac addr! 00:1C:91:03:80:01...

  • Page 26: Application Example

    Example Function Description Feedback Command Code Default Setting Network reboot… IP Mode: Static IP: 192.168.1.72 Subnet Mask: 255.255.255.0 s net reboot! Reboot network modules s net reboot! Gateway: 192.168.1.1 TCP/IP port=8000 Telnet port=10 Mac address: 00:1C:91:03:80:01 Set the data length of x hdbt uart, hdbt uart1 data len is s uart x datalen y! s uart 1 datalen 1!

  • Page 27: Tech Support

    13. Tech Support Before contacting tech support, we may have answered your question already! Visit our BZBGEAR support page (bzbgear.com/support) for valuable information on our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) consisting of tutorials, quick start guides, and step-by-step troubleshooting instructions.

  • Page 28: Mission Statement

    Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual and live streaming industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank.
