BZB Gear BG-UHD-44M User Manual

4x4 hdmi 2.0a matrix
Hide thumbs Also See for BG-UHD-44M:
Table of Contents

Advertisement

Quick Links

Download this manual
BG-UHD-44M
4X4 HDMI 2.0a Matrix
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-UHD-44M and is the answer not in the manual?

Questions and answers

Related Manuals for BZB Gear BG-UHD-44M

Summary of Contents for BZB Gear BG-UHD-44M

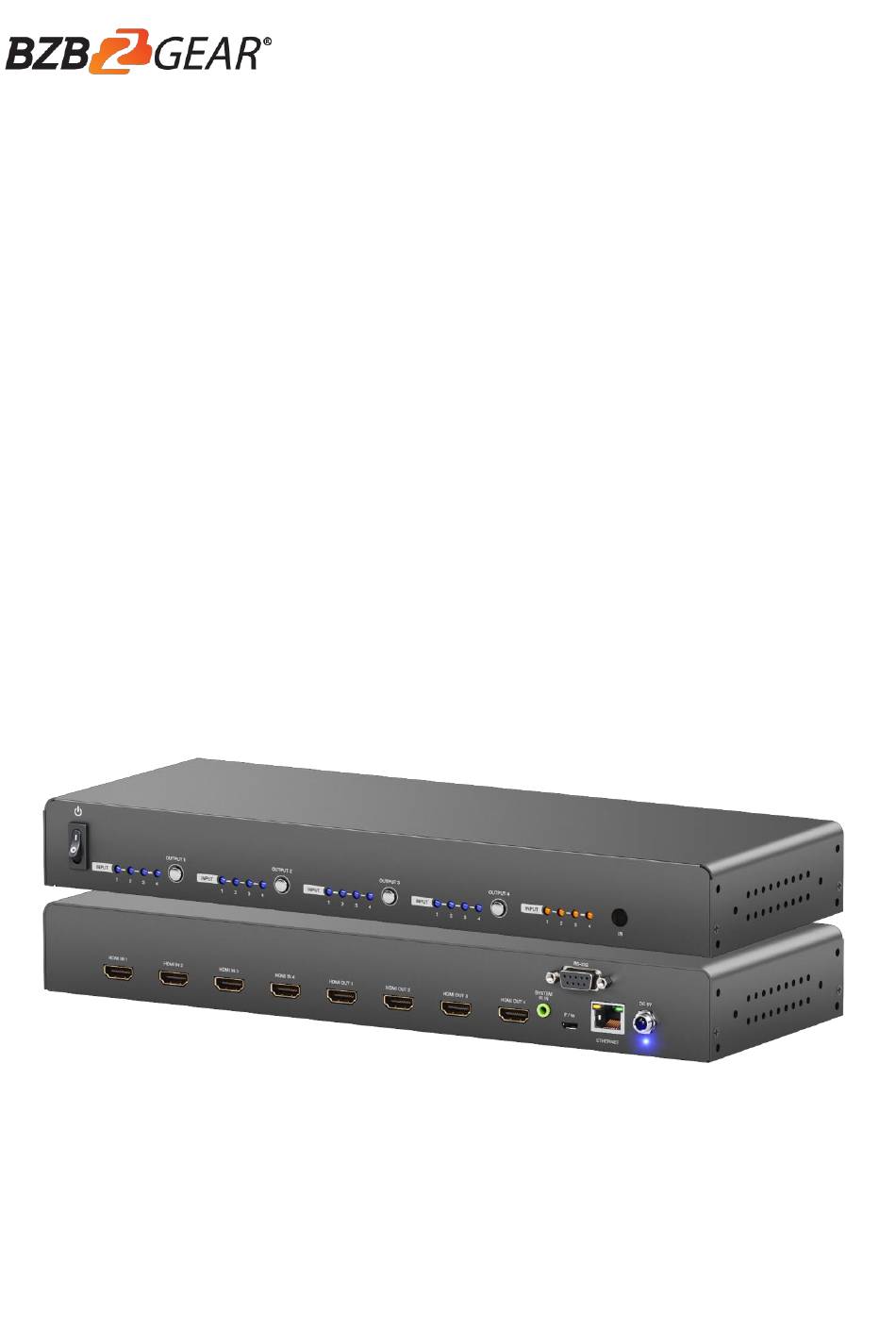

  • Page 1 BG-UHD-44M 4X4 HDMI 2.0a Matrix User Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ......................... 1 FEATURES ..........................1 SPECIFICATIONS ........................2 PACKAGE CONTENTS ......................3 PANEL DESCRIPTIONS ......................3 CONNECTION DIAGRAM ......................4 HARDWARE INSTALLATION ....................4 OPERATION APPROACH......................5 EDID LEARNING ........................20 FAQ ............................21 WARRANTY ..........................22 SECOND YEAR ASSURANCE…..…..…..…..…..…..…..…..…..…..…..…..…..…..…..…..23 MISSION STATEMENT…..…..…..…..…..…..…..…..…..…..…..…..…..…..…..…..…..……24...

  • Page 3: Introduction

    INTRODUCTION The BG-UHD-44M HDMI 2.0a Matrix provides the most flexible and cost-effective solution in the market to route high definition video sources plus multi-channel (up to 7.1-channel) digital audio from any of the four HDMI sources to the remote displays at the same time. BG-UHD-44M18G supports HDR and the true 4K2K video! Besides, BG-UHD-44M18G supports auto downscale from 4K2K to 1080P.

  • Page 4: Specifications

    SPECIFICATIONS BG-UHD-44M18G Model Name Technical Role of usage True 4x4 matrix HDMI compliance HDMI 2.0a HDCP compliance HDCP 2.2 / 1.4 Video bandwidth Single-link 600MHz [18Gbps] Video support HDR 4K2K@60(4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) DTS-HD Master Audio, Dolby TrueHD Dolby Digital, Audio support DTS, DVD-Audio, LPCM, SACD, MPCM ESD protection...

  • Page 5: Package Contents

    PACKAGE CONTENTS 1x BG-UHD-44M18G   1x Rack-mounting ear set   1x IR receiver 1x Installation software CD   1x DC 5V 4A 1x User Manual  1x IR Remote control* ○ Additional IR remote controllers and IR blasters can be purchased as optional accessories to control the HDMI sources located separately.

  • Page 6: Connection Diagram

    12. RS-232: RS-232 control port (for software control and firmware update) CONNECTION DIAGRAM HARDWARE INSTALLATION BG-UHD-44M18G as master 1. Connect all sources to HDMI Inputs on the 4x4 HDMI Matrix BG- UHD-44M18G. 2. Connect all displays to HDMI Outputs on the 4x4 HDMI Matrix BG- UHD-44M18G.

  • Page 7: Operation Approach

    OPERATION APPROACH Method A: Push-in Button IN/OUT MAP (1) Use Port 1-4 Channel Push Button to select the source (2) Input1~4 can be selected in order Method B: IR Remote Control Button Function Standby mode Power on the matrix switcher MUTE Turn off output’s video and audio STATUS...
  • Page 8 IN/OUT Switch Operation Procedure IN/OUT Switch Push the button on the checkerboard to select input & output port Ex: Input 2 Push the red circle button as below to select input 2 to output 3 To Output 3 Example of function key Operation Procedure Mute Output...
  • Page 9 Method C: Software Control through RS-232 port 1. System Requirement (1) OS Information: MS Win XP/7/8.1/10 (2) Baud rates: 115200 (3) Software size: 1 MB (4) Minimum RAM requirement: 256 MB Power ON/ Standby mode EDID Tab Control SW via RS-232 Rename I/O Tab Control SW via Network System Tab...
  • Page 10 I/O Mapping Tab ➢ I/O Mapping:  Switch the input for each output ➢ Recall Mapping:  Select the stored Mapping(1-8)  Click “Recall” button to recall previous mapping which are saved ➢ Save Mapping:  Select Mapping(1-8)  Click “Save” button to save current mapping...
  • Page 11 2. EDID Tab ➢ Learn EDID from Default to Input  Select Default EDID(1-17 Default EDID)  Select designated Input  Click “Apply” button to learn from default EDID ➢ Learn EDID from Display to Input  Select output  Select designated Input ...
  • Page 12 ➢ View EDID information  Select Input ,HDMI output or EDID file  Click “View” button to read and analyze the EDID information 3. Rename I/O Tab ➢ Rename I/O:  Rename the Inputs  Rename the Outputs ➢ Rename Mapping: ...
  • Page 13 4. System Tab ➢ Network-DHCP mode  Select DHCP and click “Read” button to automatically get the IP address ➢ Network-Static mode  Select Static and then key in the “IP”, “MASK”, “GATEWAY” information. After setting IP address, please click “Save” button to save IP address Information ➢...
  • Page 14 ➢ Cloud setting-Association Code  To get an “association code”. The device can use this code to pair with cloud server. ➢ Cloud-Reset Cloud  To reset cloud after a successful pairing ➢  Read the device’s MAC address information ➢...
  • Page 15 -13-...
  • Page 16 ➢ Main Board Using RS-232 to USB cable connect the device and your PC/laptop.  Click the button to open the Firmware Update Tool window.  Click the button to select the file which you want to write into device. ...
  • Page 17 Method D: Web Interface Control The default IP address: 192.168.1.70 I/O Routing Tab EDID Tab Rename I/O, Mapping Tab Power ON/Standby mode I/O Routing Tab ➢ I/O: Switch the input for each output ➢ Save Mapping  Select Mapping 1~8 ...
  • Page 18  Click “Recall” button to recall previous saved mapping Rename I/O, Mapping Tab ➢ Rename I/O:  Rename the Inputs  Rename the Outputs ➢ Rename Mapping:  Rename the Mappings -16-...
  • Page 19 EDID Tab ➢ Learn EDID from Default  Select Default EDID (1-17 default EDID)  Select input  Click “Send” button to learn default EDID ➢ Learn EDID from Display  Select output  Select input  Click “Send” button to learn display EDID Power ON / Standby mode -17-...
  • Page 20 Method E: Cloud Control (Eagleyes) through Ethernet port Create Account The first time to use the Eagleyes service, please create a new account. 1. Access Eagleyes (http://www.eagleyes.io) and click “Create new account”. 2. The Registration page will pop up and please fill in your email and password information to create your private account.
  • Page 21 Add Device to Eagleyes 1. Firstly, please make sure the device is connected to the Ethernet. Then please executing the software with device to get the association code (Note: the status of software is connected). 2. Access Eagleyes (http://www.eagleyes.io) or download Eagleyes APP and then log in your account on the right top corner.

  • Page 22: Edid Learning

    EDID LEARNING The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI source devices and displays may have various level of capability in playing audio and video, the general principle is that the source device will output the lowest standards in audio format and video resolutions to be commonly acceptable among all HDMI displays.

  • Page 23: Faq

    Q Can every TV work with the HDMI matrix? A Basically, the answer is YES. But if your TV cannot support 1080p, please refer the EDID LEARNING section to learn EDID from your TV. Q What is EDID? Why do I need to learn EDID? A EDID contains the whole information of the display such as the resolution and audio setting which this display can support.

  • Page 24: Warranty

    WARRANTY The SELLER warrants the BG-UHD-44M18G 4x4HDMI 2.0a matrix free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1-year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surge.

  • Page 25: Second Year Assurance

    SECOND YEAR ASSURANCE BZB Gear wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*! Taking advantage of this program is simple, just follow the steps below: 1.

  • Page 26: Mission Statement

    We live in a DIY era where resources are abundant on the internet. With that in mind, our team offers system design consultation and expert tech support seven days a week for the products in our BZB Gear catalog. You’ll notice comparably lower prices with BZB Gear solutions, but the quality of the products is on par with the top brands in the industry.
