BG-8K-42MA
8K HDMI 4x2 Matrix
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-8K-42MA and is the answer not in the manual?

Questions and answers

Related Manuals for BZB Gear BG-8K-42MA

Summary of Contents for BZB Gear BG-8K-42MA

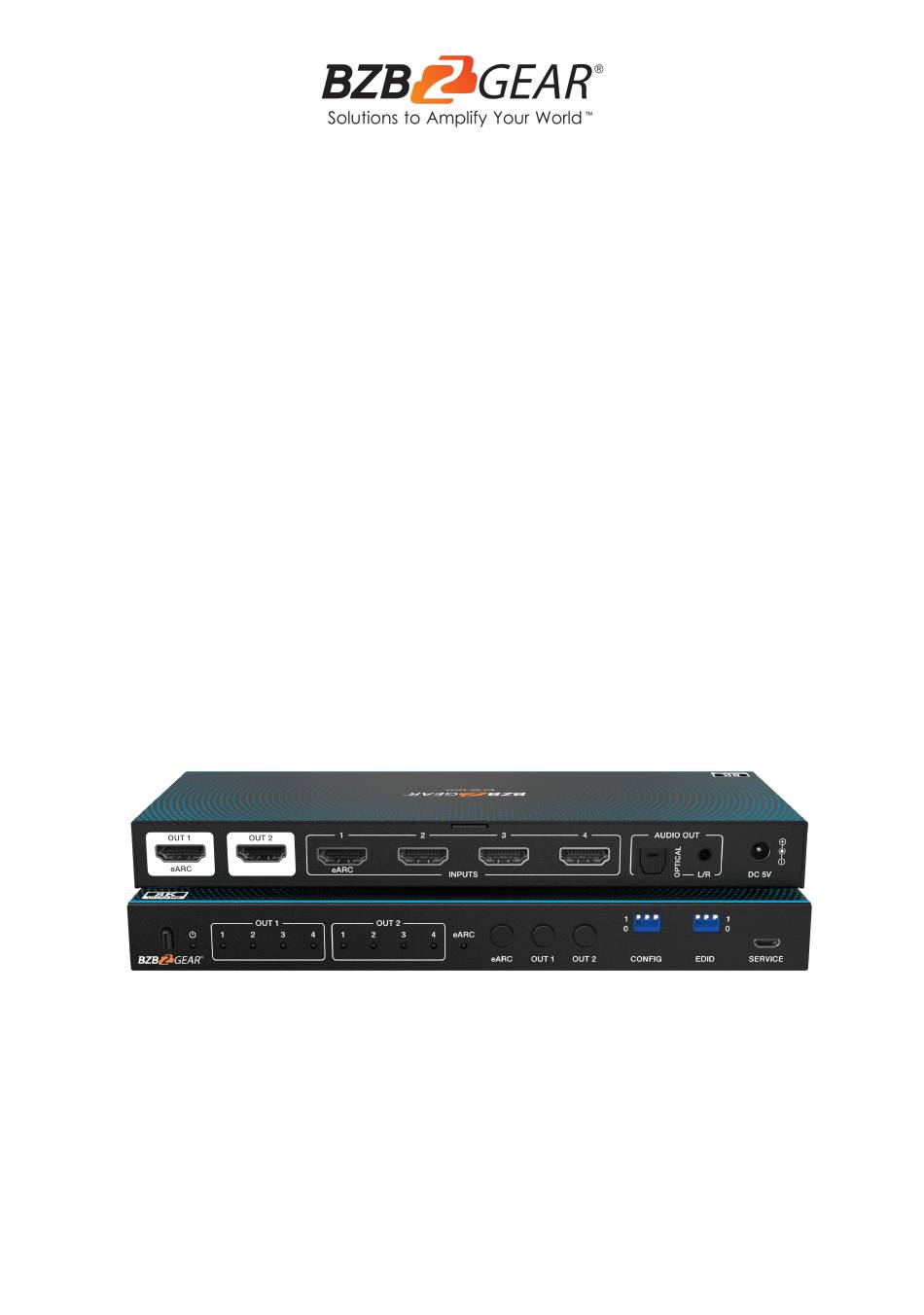

  • Page 1 BG-8K-42MA 8K HDMI 4x2 Matrix User Manual...
  • Page 2 BZBGEAR BG-8K-42MA PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-8K-42MA PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions IR Remote Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 4: Statement

    BZBGEAR BG-8K-42MA PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation.

  • Page 5: Introduction

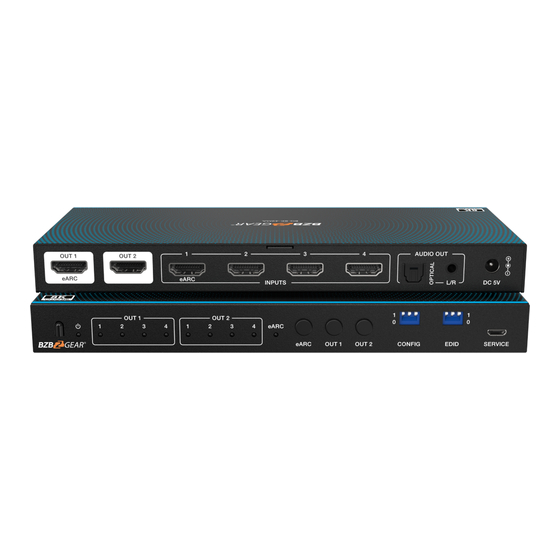

    PRODUCT MANUAL Introduction The BG-8K-42MA is an 8K HDMI 4x2 matrix that can switch any of the four HDMI input signals to either output and it can also distribute a single signal to two displays simultaneously. With video resolutions up to 8K@60Hz 4:2:0 it also supports eARC functionality (only for INPUT 1 port and OUTPUT 1).

  • Page 6: Specifications

    BZBGEAR BG-8K-42MA PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 40Gbps Video Resolution Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit Color Depth 8/10/12-bit Color Space RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 HDMI input/output:...

  • Page 7: Operation Controls And Functions

    BZBGEAR BG-8K-42MA PRODUCT MANUAL Operation Controls and Functions Front Panel Name Function Description IR Window IR input signal receiving window. The power LED lights in green when the device is working, and red when the device is in POWER LED standby.

  • Page 8: Ir Remote

    BZBGEAR BG-8K-42MA PRODUCT MANUAL Rear Panel Name Function Description HDMI signal output ports, connect to an HDMI display device such as a TV or Monitor with an HDMI cable. OUT (1~2) port Note: When the eARC function is turned off, connect the “OUT 1 (eARC)” port to HDMI display device to work as an output port;...

  • Page 9: Application Example

    BZBGEAR BG-8K-42MA PRODUCT MANUAL Application Example Situation 1 When the eARC function is turned off connected devices will function as normal. Situation 2 When the eARC function is turned on, connect the “INPUTS 1 (eARC)” port to a Soundbar to output the audio signal returned from the “OUT 1 (eARC)” port, the INPUTS 1 LED for OUT 1 will illuminate.

  • Page 10: Tech Support

    BZBGEAR BG-8K-42MA PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions.

  • Page 11: Mission Statement

    BZBGEAR BG-8K-42MA PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog.

  • Page 12: Copyright

    BZBGEAR BG-8K-42MA PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
