BZB Gear BG-UM-88ANS User Manual

8x8 hdmi 18gbps matrix with audio de-embedded
Hide thumbs Also See for BG-UM-88ANS:
Table of Contents

Advertisement

Quick Links

Download this manual
BG-UM-88ANS
8x8 HDMI 18Gbps Matrix
with Audio De-embedded

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-UM-88ANS and is the answer not in the manual?

Questions and answers

Related Manuals for BZB Gear BG-UM-88ANS

Summary of Contents for BZB Gear BG-UM-88ANS

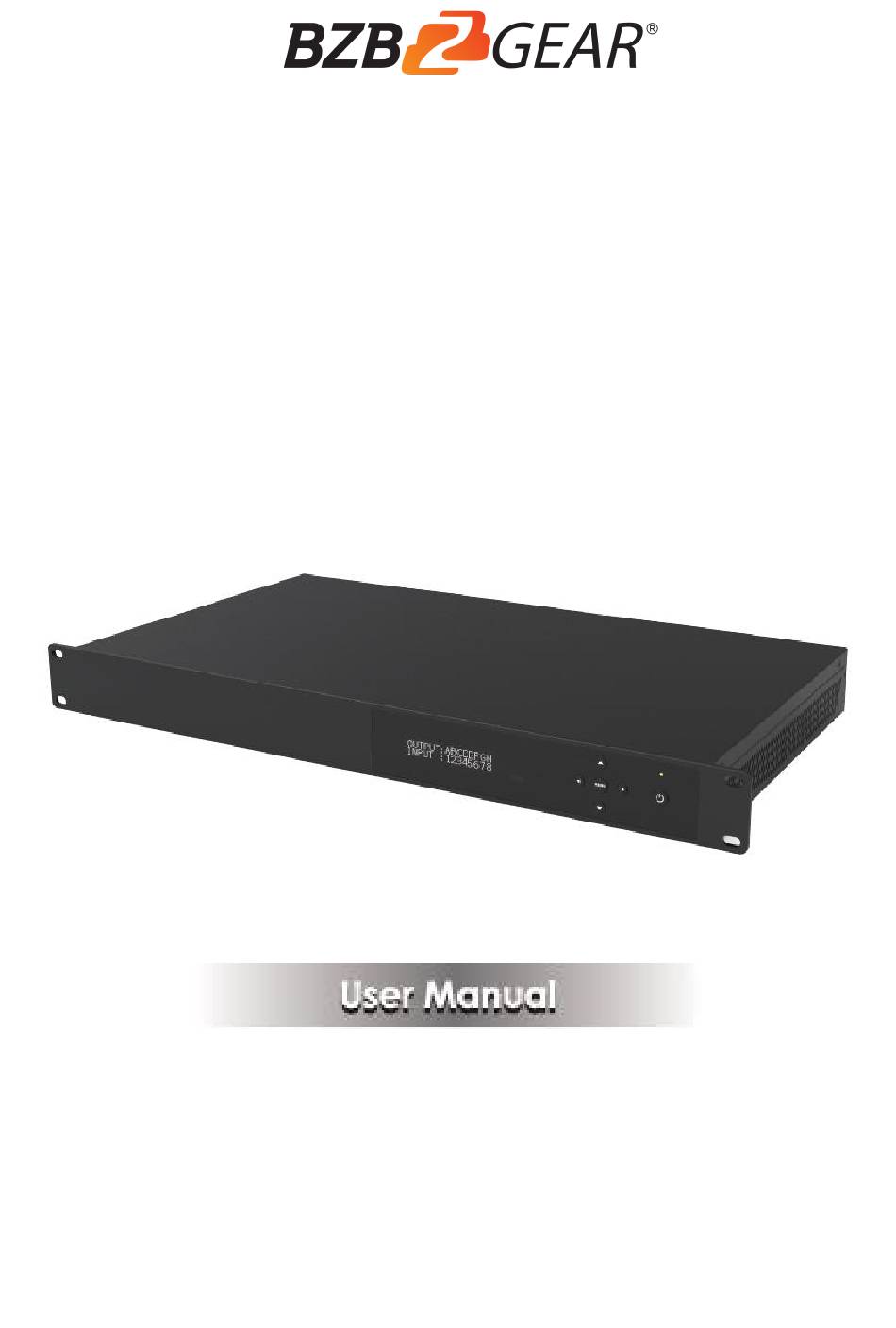

  • Page 1 BG-UM-88ANS 8x8 HDMI 18Gbps Matrix with Audio De-embedded...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shook, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction The 8x8 HDMI Matrix supports the transmission of video (up to 4K2K@60Hz YUV 4:4:4, 18Gbps, HDCP 2.2) and multi-channel digital audio from 8 HDMI sources to 8 HDMI displays. Audio de-embedded is supported from 8 HDMI output ports. Control is via button, IR, RS-232, LAN and Web GUI. 2.

  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps Video Resolutions Up to 4K2K@50/60Hz (YUV 4:4:4), 4K2K@30Hz, 1080p@120Hz, and 1080p 3D@60Hz Color Depth 8-bit, 10-bit, 12-bit Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 HDMI Audio LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Formats...

  • Page 5: Operation Controls And Functions

    Storage -20°C ~ 60°C / -4°F ~ 140°F Temperature Relative Humidity 20~90% RH (non-condensing) 5. Operation Controls and Functions 5.1 Front Panel Number Name Function descriptions OLED display Display system input/output port status, EDID management and matrix IP address. IR Window IR receiver window, it receives IR remote control signal to control this device.
  • Page 6 below table. Once you complete EDID selection, press the‘Right’button then press the 'Left’or‘Right’ button to select which input port to copy EDID , press the‘Right’button to confirm this operation. 2. PTP Set: Press the 'Right’button to set PTP mode (point to point, means IN1-OUT A, IN2-OUT B, IN3-OUT C...). 3.
  • Page 7 1080P 5.1 CH 1080P 7.1CH 1080I 2.0 CH 1080I 5.1 CH 1080I 7.1CH 3D 2.0 CH 3D 5.1 CH 3D 7.1 CH 4K*2K@30 2.0 CH 4K*2K@30 5.1 CH 4K*2K@30 7.1 CH 4K60_420 2.0CH 4K60_420 5.1CH 4K60_420 7.1CH 4K*2K@60 2.0 CH 4K*2K@60 5.1 CH 4K*2K@60 7.1 CH Copy HDMI Out A...

  • Page 8: Rear Panel

    5.2 Rear Panel Number Name Function descriptions HDMI INPUT Connect to the HDMI input source devices such as a DVD player or Set-top Box. HDMI OUTPUT Connect to the HDMI output source devices such as a TV player or monitor. IR EXT If the front IR sensor of unit is obstructed or the unit is installed in a closed area out of infrared line of...

  • Page 9: Remote Control

    6. Remote Control Power on or set it to standby status. Input 1/2/3/4/5/6/7/8:Press these button to select input signal source. : Press these button to select the last or the next input signal source. Output 1/2/3/4/5/6/7/8: Press these button to select output signal source.
  • Page 10 The first way: The Matrix gets IP address via Upper Controller. The RS-232 port connects USB port on PC. The LAN port and the PC connect via a router. At this time, you need to open the Upper Computer software of the product. The page looks as below: Select “TCP Control Mode”port, then click the“Search”button.
  • Page 11 Select the "View IP" function, then press the "Right" button to check current IP address and DHCP status. At this point, you can get the current IP address. Step 1: The LAN port connects directly PC with an UTP cable. Step 2: On the PC, go to Control Panel>...
  • Page 12 Choose Use the following IP address, input 192.168.1.200 as IP address, 255.255.255.0 as Subnet mask, and then click on OK, click on OK again.
  • Page 13 Note: The IP address of the computer and matrix should be in the same network segment. As the matrix's IP address is 192.168.10.100, the computer's IP should be 192.168.10.X (X contains 1~255 except 100). Step 3. Input the IP address from front panel into a brower on the PC to enter Web GUI page, The pages like below.
  • Page 14 The Web GUI : General page ① Click this button to check current the Matrix connection status. ② Display currently the Matrix input and output port status. The “yes” have connected input or output source and “no” represent not connection. ③...
  • Page 15 Matrix page ① You need click green area and then choose one input source to the OUTPUT A port. (The others OUTPUT ports have similar to function about Tab ①.) EDID page ① Select EDID mode to input source, then click “Set” button.
  • Page 16 ② Copy EDID from output display to input source, then click “Set” button. ③ Open EDID file to input source. ④ Display the input source EDID mode status. Network page ① Network Configuration ◆ In DHCP open status: DHCP switch: Obtian the network configuration information, including IP address, Subnet, Gateway and MAC.

  • Page 17: Faq

    Upgrade page ① Open upgrade file, then click the “Upgrade” button. 8. FAQ 1. Q: Does this product require an HDMI line length for the connection interface? A: According to HDMI line length test, HDMI input / output with 4K2K@60Hz YUV 4:4:4 is the longest line length up to 16.4ft / 5m.

  • Page 18: Application Example

    9. Application Example...

  • Page 19: Warranty / Mission Statement

    10. Warranty BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*. Taking advantage of this program is simple, just follow the steps below: 1.
