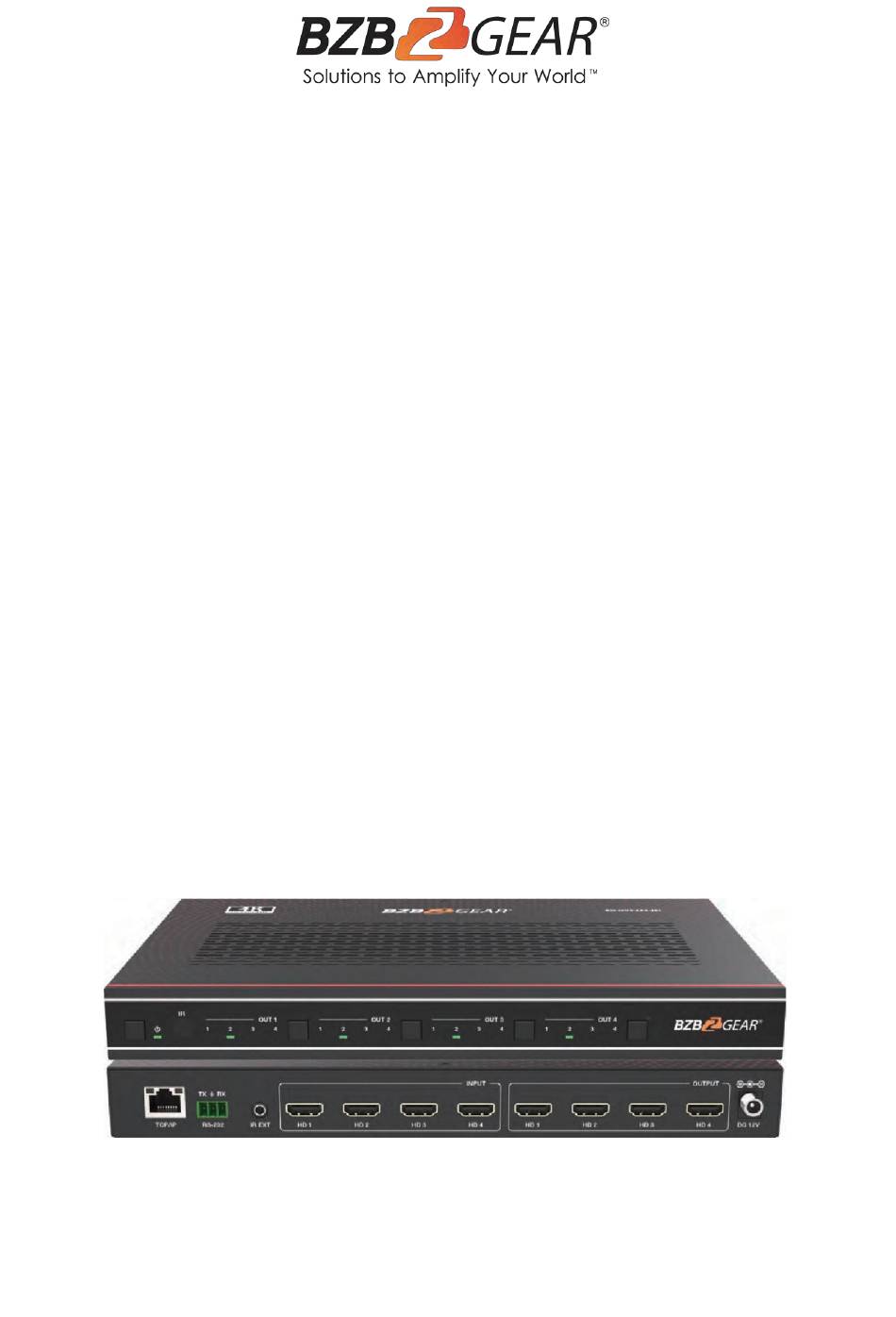

- Page 1 BG-MVS4X4-4KL 4K@60 HDMI Matrix Switcher and Video Wall Processor User Manual...
-
Page 2: Table Of Contents
BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions IR Remote IR Pin Definition EDID Management Video Wall Web GUI User Guide RS-232 Control Commands Application Diagram Tech Support Warranty... -
Page 3: Statement
BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 4: Introduction
PRODUCT MANUAL Introduction The BG-MVS4X4-4KL 4K60 4:4:4 HDMI matrix is a versatile high-speed matrix switcher and video wall processor with multiple applications. This system can be configured for two different output modes, serving as a 4×4 seamless matrix switcher, or as a 2×2, 4×1 or 1×4 video wall solution, among other possibilities. -
Page 5: Specifications
BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.4 Video Bandwidth 594MHz/18Gbps Input: VGA-WUXGA (up to 1920×1200@60Hz), 480i-4K (3840x2160@60Hz 4:4:4, 4096x2160@60Hz 4:4:4) Output: 4096x2160p60, 4096x2160p50, 3840x2160p60, Video Resolution 3840x2160p50, 3840x2160p30, 1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50, 1920x1200p60rb, 1360x768p60, 1280x800p60,... -
Page 6: Operation Controls And Functions
BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL Operation Controls and Functions Front Panel Name Function Description ▪ Short press this button to power on the device. Power button ▪ Press this button for 1 seconds to enter the standby mode. The LED will illuminate in green when the product is working normally, Power LED and red when the product is on standby. -
Page 7: Ir Remote
BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL IR Remote ① Power on or Standby: Power on the Matrix or set it to standby mode. ② INFO: Press this button to display the serial port baud rate and IP address in the upper right corner of the screen. (The information will disappear after 5 seconds.) ③... -
Page 8: Ir Pin Definition
BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL IR Pin Definition IR Receiver pin’s definition is as below: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance Note: is 0-5 meters; when the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters. -
Page 9: Video Wall
BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL EDID Settings List: EDID Mode EDID Description 4k2k60_444,stereo audio 2.0 4k2k60_444,dolby/dts 5.1 4k2k60_444,hd audio 7.1 4k2k30_444,stereo audio 2.0 4k2k30_444,dolby/dts 5.1 4k2k30_444,hd audio 7.1 1080p,stereo audio 2.0 1080p,dolby/dts 5.1 1080p,hd audio 7.1 1920x1200,stereo audio 2.0 1360x768, stereo audio 2.0 1024x768, stereo audio 2.0... -
Page 10: Web Gui User Guide
BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL Web GUI User Guide The BG-MVS4X4-4KL may be controlled via a Web GUI. The operation method is shown as below: Step 1: Get the current IP Address. The default IP address is 192.168.0.100. You can get the current Matrix IP address in two ways: You can get the IP address via remote controller. - Page 11 BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL Enter the Username and Password. The default passwords are: Username User Admin Password user admin Then click the “Login” button and the following Main page will appear. Main Page The Main page provides the product information about the product picture, product overview and technical device information.
- Page 12 BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL Click the “Matrix Switcher” tab to enter the Matrix Switcher interface. ① Matrix Switcher: In Matrix Switcher mode, you can click the window to select an output (1~4) firstly, and then click the Input1/2/3/4 button select an input source (1~4) which will appear on the selected output area. One route of video output configuration is completed.
- Page 13 BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL Page Settings You can set the input, output, network and system on this page. Input Settings Click the “Input Settings” tab to enter the Input Settings interface. ① Inputs: Input channel of the device. ② Active: It indicates whether the channel is connected to a signal source.
- Page 14 BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL Click the “Output Settings” tab to enter the Output Settings interface. ① Outputs: Output channel of the device. ② Cable: It indicates the connection status of output ports. When the output port is connected to the display, it shows green, otherwise, it shows red.
- Page 15 BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL ① Modify User Password On the Web Login Settings interface, You can click the “User” button, enter the correct Old Password, New Password and Confirm Password, then click “Save” to modify the password. Note: Input rules for changing passwords: (1) The password can’t be empty.
-
Page 16: Rs-232 Control Commands
BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL RS-232 Control Commands The BG-MVS4X4-4KL supports RS-232 command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable and an RS-232 to USB cable. The connection method is as follows. - Page 17 BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL Example Function Description Feedback Command Code Default Setting reboot… Reboot the device s reboot! s reboot! system initializing... initialization finished! mcu fw version x.xx.xx reset to factory defaults system initializing... Reset to factory defaults s reset!
- Page 18 BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL Example Function Description Feedback Command Code Default Setting Set output y color space (y=0~4, x=1~4) y=0. output all y=1. output 1 y=2. output 2 y=3. output 3 s output y csc x! s output 1 csc 1! output 1 csc: rgb444 rgb444 y=4.
- Page 19 BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL Example Function Description Feedback Command Code Default Setting Set output y stream enable/disable (y=0~4, x=0~1) y=0. output all y=1. output 1 s output y stream s output 1 y=2. output 2 output 1 stream: enable enable stream 1! y=3.
- Page 20 BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL Example Function Description Feedback Command Code Default Setting Video wall setting Set tv wall display mode(x=1~10) x=1. 2x2 mode x=2. 2x1 mode x=3. 2x1-2 mode x=4. 1x2 mode x=5. 1x2-2 mode s tw mode x! s tw mode 1!
- Page 21 BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL Example Function Description Feedback Command Code Default Setting Network setting ip mode: static ip: 192.168.0.100 subnet mask: 255.255.255.0 r ipconfig! Get the current ip configuration r ipconfig ! gateway: 192.168.0.1 tcp/ip port=8000 telnet port=23 mac address:...
-
Page 22: Application Diagram
BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL Application Diagram The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 23: Tech Support
BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. Or explore our YouTube channel, BZB TV (youtube.com/c/BZBTVchannel), for help setting up, configuring, and... -
Page 24: Mission Statement
BZBGEAR BG-MVS4X4-4KL PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog.
