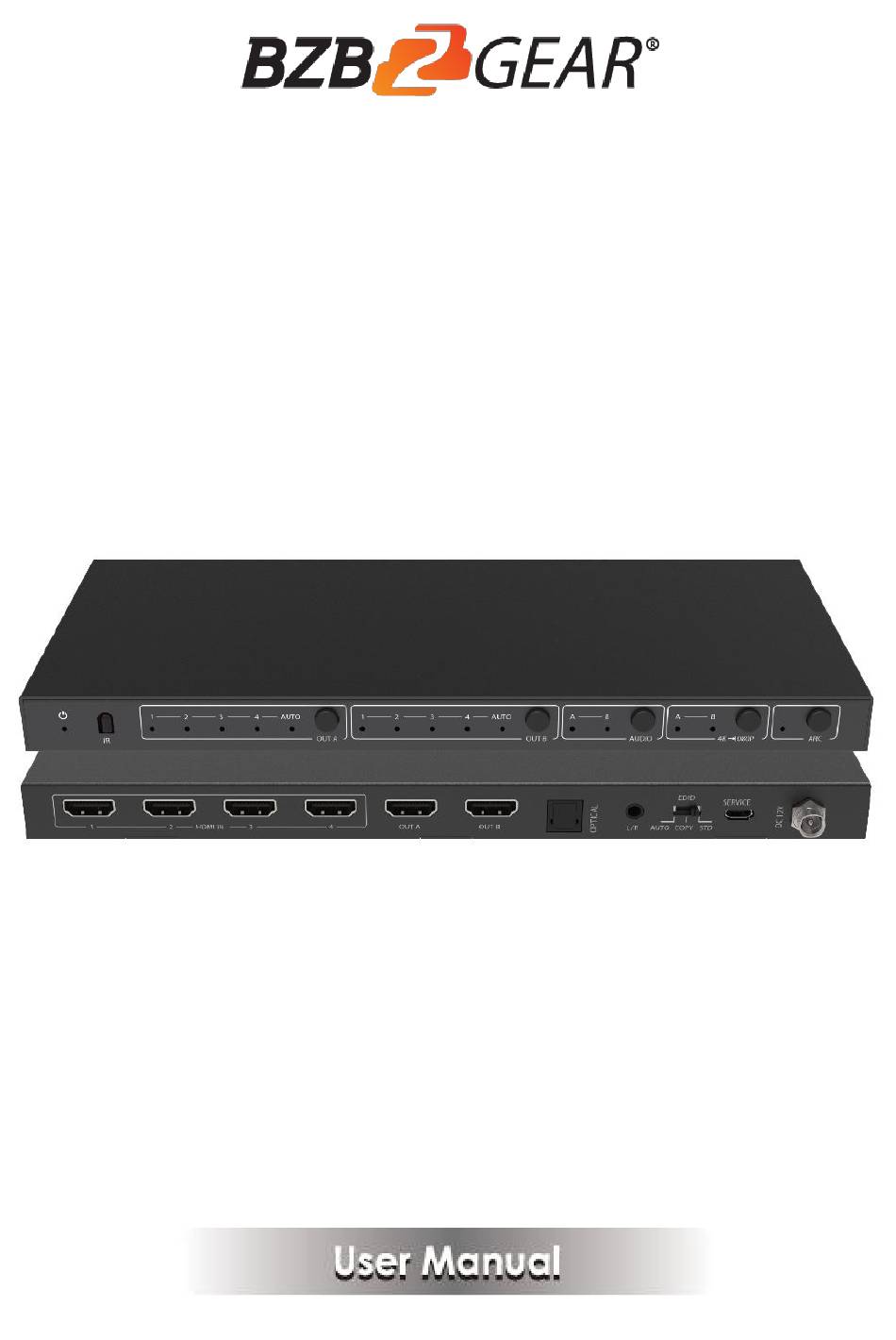

- Page 1 BG-UHD-42M 4x2 HDMI 2.0 Matrix Switcher with Audio Extract/Scale/ARC/EDID function...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The BZ-UHD-42M HDMI Matrix Switcher can switch any of four HDMI sources to two HDMI displays. It supports resolution up to 4K2K@60Hz YCbCr 4:4:4 and HDCP 2.2. It can extract HDMI source device audio to optical and analog L/R output. -
Page 4: Specifications
③ 2× Mounting Ears ④ 1× IR Remote ⑤ 1× User Manual 4. Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18 Gbps Video Resolution Up to 4K2K@50/60Hz (YCbCr 4:4:4),4K2K@30Hz.All HDMI 3D TV format, etc. Color Space RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0 Color Depth... -
Page 5: Operation Controls And Functions
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) 5. Operation Controls and Functions 5.1 Front Panel Number Name Function description Power LED The blue LED will illuminate when the product is connected power supply. -
Page 6: Rear Panel
signal from the last connected input source. AUDIO button ▪ Press AUDIO button to select extract the input source audio from OUT A port or OUT B port to optical and analog L/R output, the corresponding blue LED will illuminate. ▪... -
Page 7: Ir Remote
information again to Out A and Out B display device output. COPY: Copy Out A display device’s EDID information to source device of Out A and Out B. Then the source device of Out A and Out B will send the EDID information again to Out A and Out B display device output. - Page 8 will illuminate. Select the last or next input source signal to OUT A port output, the corresponding blue LED on the front panel will illuminate. AUTO Detect input signal source. The Auto function is turned on, if an or a few HDMI IN ports are connected source device, Out A port will output the signal from the last connected input source.
- Page 9 example, if source is 4K but TV only supports 1080P, at this time the input resolution with 4K will downscale to 1080P to TV output Audio function Turn on / off ARC function. Audio A / B ▪ If ARC function is turned on, press Audio A or B button to select return the audio signal from Out A or Out B display device to optical port (TOSLINK) output.
-
Page 10: Application Example
7. Application Example 8. FAQ Q: Does this product require an HDMI line length for the connection interface? A: According to HDMI line length test, HDMI input / output with 4K60Hz YCbCr 4:4:4 is the longest line length up to 8m / 3m. The use of “Premium High Speed HDMI”... -
Page 11: Mission Statement
10. Warranty Information BZB Gear | Second Year Assurance BZB Gear wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*! - Page 12 Taking advantage of this program is simple, just follow the steps below: 1. Register your product within 90 days of purchase by visiting BZBGear.com/warranty. 2. Complete the registration form. Provide all necessary proof of purchase details, including serial number and a copy of your sales receipt. For questions, please call 1.888.660.2962 or email support@bzbgear.com.
