BZB Gear BG-UM44-150L-KIT User Manual

4x4 4k 18gbps uhd hdmi/hdbaset matrix switcher with 2-way ir/advance edid/downscaling/ip and rs-232 control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BG-UM44-150L-KIT
4X4 4K 18Gbps UHD HDMI/HDBaseT Matrix Switcher with 2-Way
IR/Advance EDID/Downscaling/IP and RS-232 Control
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-UM44-150L-KIT and is the answer not in the manual?

Questions and answers

Related Manuals for BZB Gear BG-UM44-150L-KIT

Summary of Contents for BZB Gear BG-UM44-150L-KIT

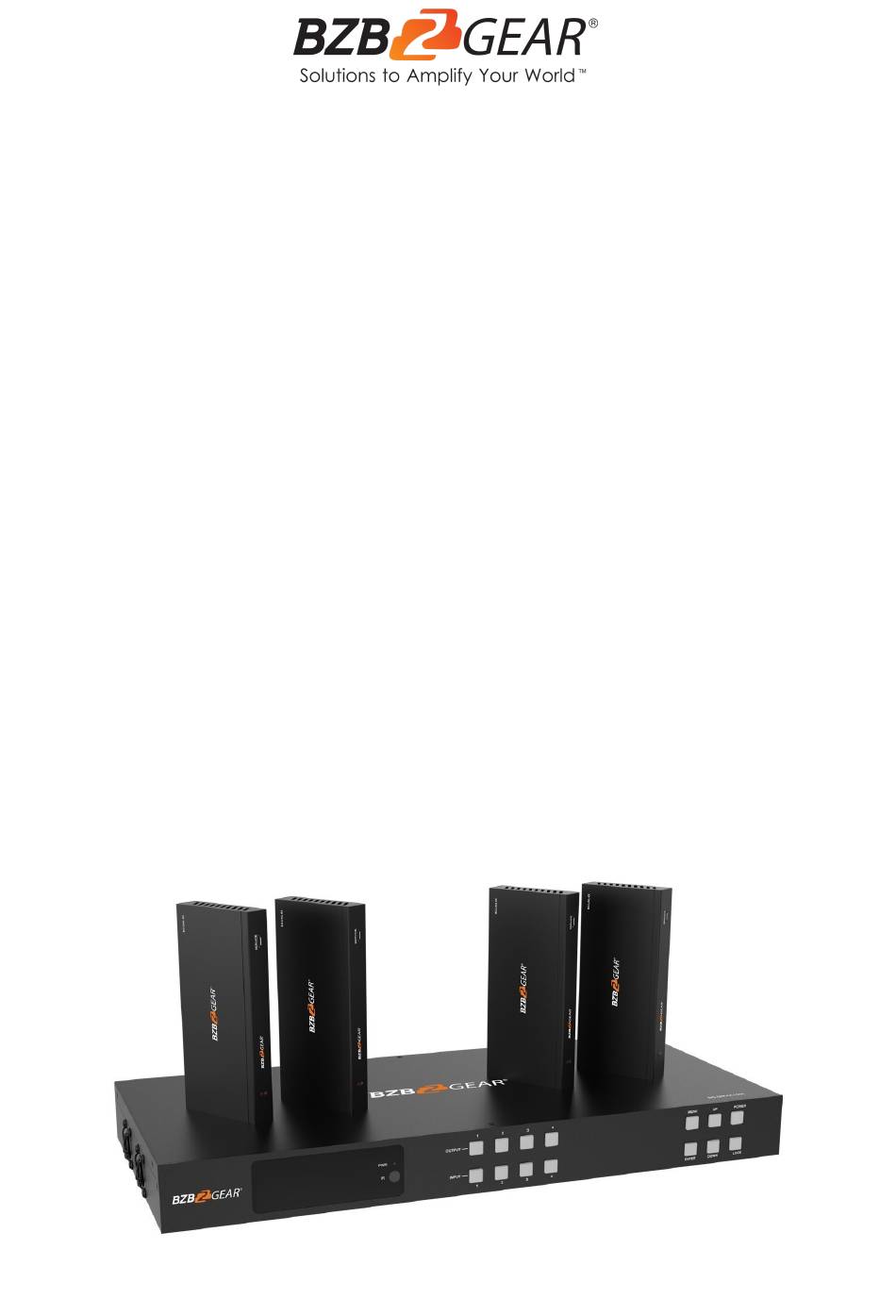

  • Page 1 BG-UM44-150L-KIT 4X4 4K 18Gbps UHD HDMI/HDBaseT Matrix Switcher with 2-Way IR/Advance EDID/Downscaling/IP and RS-232 Control User Manual...
  • Page 2 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions IR Remote IR Control System IR Cables EDID Management Web GUI User Guide RS-232 Control Commands Application Example Tech Support Warranty...

  • Page 4: Statement

    BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation.

  • Page 5: Introduction

    BG-UM44-150L also supports a variety of HDR formats such as HDR10+, Dolby Vision, and HLG for rich colors. The BG-UM44-150L-KIT can de-embed audio to stereo analog and digital coaxial on the transmitter and 3.5mm stereo on the HDBaseT receivers. HDMI audio pass-through supports up to 7.1CH HD audio in a variety of formats like Dolby TrueHD.

  • Page 6: Packing List

    BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Packing List ● 1 x 18Gbps 4x4 HDBaseT (150M) ● 4 x 3-pin Phoenix Connector & 4 x 5-pin Matrix Phoenix Connector ● 4 x HDBaseT Receiver ● 5 x IR Blaster cable (1.5 meters) ● 1 x Matrix IR Remote ●...

  • Page 7: Specifications

    BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.x Video Bandwidth 18Gbps Video Resolution Up to 4K2K@50/60Hz (4:4:4) Color Space RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) Color Depth 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0）...

  • Page 8: Operation Controls And Functions

    BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Operation Controls and Functions Matrix Panel Front Panel Name Function Description LED screen Display matrix switching status, input / output port, EDID, Baud rate, and IP Address. The LED will illuminate green when the unit is working normally and red when the unit is in Power LED standby.
  • Page 9 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Rear Panel Name Function Description IR IN (1/2/3/4/ ALL) Connect to the IR receiver cable, the IR receive signal will be sent to the “IR OUT” port of the ports HDBaseT receiver. IR OUT (1/2/3/4/ Connect to the IR blaster cable, the IR emit signal will be from the “IR IN” port of the ALL) ports HDBaseT receiver.
  • Page 10 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL HDBaseT Receiver Panel Name Function Description Power LED Red LED will be on when the receiver is powered on. SERVICE port Firmware update port. DC 24V/1A power supply input port. DC 24V Note: The Matrix supports PoC functionality which means that the receiver does not need a power supply.

  • Page 11: Ir Remote

    Select the last ◀ or next ▶ input source button. IR Control System The BG-UM44-150L-KIT is not only a matrix switch but also an extender that supports bi-directional IR control. When the matrix is connected to a HDBaseT receiver through a Cat 5e/6/7 cable, you can control the remote display device (HDBaseT) or input source device (matrix) through an IR signal transmission.
  • Page 12 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL At HDBaseT Receiver (Remote end): IR signal follows video switch/change. For example, the HDMI output signal on the HDBaseT Receiver 1 is from the HDMI INPUT 2 port, so the IR input signal of the HDBaseT Receiver 1 will emit to IR OUT 2 of the matrix.

  • Page 13: Ir Cables

    BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL IR Cables · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 14: Edid Management

    PRODUCT MANUAL EDID Management This BG-UM44-150L-KIT has 21 factory defined EDID settings, 2 user-defined EDID modes and 8 copy EDID modes. You can select a defined EDID mode or copy EDID mode through the on-panel buttons, RS-232 control, or web interface.
  • Page 15 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL EDID Settings: EDID Mode EDID Description 1080p, Stereo Audio 2.0 1080p, Dolby/DTS 5.1 1080p, HD Audio 7.1 1080i, Stereo Audio 2.0 1080i, Dolby/DTS 5.1 1080i, HD Audio 7.1 3D, Stereo Audio 2.0 3D, Dolby/DTS 5.1 3D, HD Audio 7.1 4K2K30_444, Stereo Audio 2.0...

  • Page 16: Web Gui User Guide

    BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Web GUI User Guide The matrix can be controlled through a web interface and operation is shown below. Step 1: Get the current IP Address. The default IP address is 192.168.1.100. You can get the current matrix IP address in two ways: 1.
  • Page 17 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Click on the bubble for “Use the following IP address” In the IP address field enter a non-conflicting IP address on the same subnet as the camera. If there is another device with the same IP address you will not be able to connect.
  • Page 18 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL After entering the IP address of the unit in the browser the Login page will appear as shown below: Select the Username from the list and enter the password. The default passwords are: Username User Admin...
  • Page 19 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Video Page 1. Output: The current device’s OUTPUT port. 2. Input: You can click the drop-down menu to select a signal source for the corresponding OUTPUT port . 3. Presets Name: You can name the current scene with a maximum length of 12 characters.
  • Page 20 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Input Page 1. Inputs: Input channel of the device. 2. Active: It indicates whether the channel is connected to a signal source. 3. Name: The input channel’s name. You can modify it by entering the corresponding name (max length: 12 characters) in the input box.
  • Page 21 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Make sure to select the correct file, then you can check the name of the selected file. Select “User 1” or “User 2”, then click “Upload”. After successful setting, it will prompt as follows: Download the EDID File for the Corresponding Input Channel Click the drop-down box of “Select EDID File”...
  • Page 22 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL CEC Page 1. Input Control: You can control the operation of each input source by pressing the icons on the page. (You can control multiple inputs simultaneously.) 2. Output Control: You can control the operation of each display, such as power on/off, volume +/-, active source switching.
  • Page 23 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Network Page Set the Default Network Click “Set Network Defaults” button, there will be a prompt, as shown in the following figure: Click “OK” to search the IP Address again, as shown in the following figure: After the search is completed, it will switch to the login page with the default network settings.
  • Page 24 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Modify User Password Click the “User” button, enter the correct old password, new password, and confirm the new password, then click “Save.” After successful modification, there will be a prompt, as shown in the following figure: Note: Input rules for changing passwords: 1.
  • Page 25 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL System Page 1. Panel Lock: Click to lock/unlock panel buttons. “On” indicates that panel buttons are unavailable; “Off” indicates panel buttons are available. 2. Beep: Click to turn on/off the beep. 3. LCD: You can turn on/off the LCD, and set the turn-on time (15s/30s/60s).

  • Page 26: Rs-232 Control Commands

    BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL RS-232 Control Commands The product supports RS-232 control. You will need a serial cable with RS-232 male head and DB9 transfer USB male head. The RS-232 head of the serial cable is connected to the RS-232 control port with DB 9 at the rear of the Matrix, and the USB head of the serial cable is connected to a PC.
  • Page 27 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Command Default Function Description Example Feedback Code Setting s reset! Reset to factory defaults s reset! Reset to factory defaults System Initializing... Initialization Finished! FW version x.xx.xx s beep z! Enable/Disable buzzer function, s beep 1!
  • Page 28 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Command Default Function Description Example Feedback Code Setting r hdmi y scaler! Get hdmi output y port output mode r hdmi 1 scaler! hdmi output 1 set to bypass y=0~4(0=all) mode s hdbt y scaler z! Set hdbt output y port output scaler...
  • Page 29 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Command Default Function Description Example Feedback Code Setting s cec in x stop! set input x stop by CEC, x=0~4(0=all s cec in 1 stop! input 1 stop operation input) s cec in x rew! set input x rewind by CEC, x=0~4(0=all...
  • Page 30 BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Command Default Function Description Example Feedback Code Setting s ip addr Set network IP address s ip addr Set IP address: 192.168.1.100 xxx.xxx.xxx.xxx! 192.168.1.100! (Please use "s net reboot!" command or repower device to apply new config!)

  • Page 31: Application Example

    BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 32: Tech Support

    BZBGEAR BG-UM44-150L-KIT PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions.
