BZB Gear BG-4K-VP88 User Manual

4k60hz hdmi 8x8 seamless matrix, video wall, & multi-viewer with audio embedding and extraction
Hide thumbs Also See for BG-4K-VP88:
Table of Contents

Advertisement

Quick Links

Download this manual

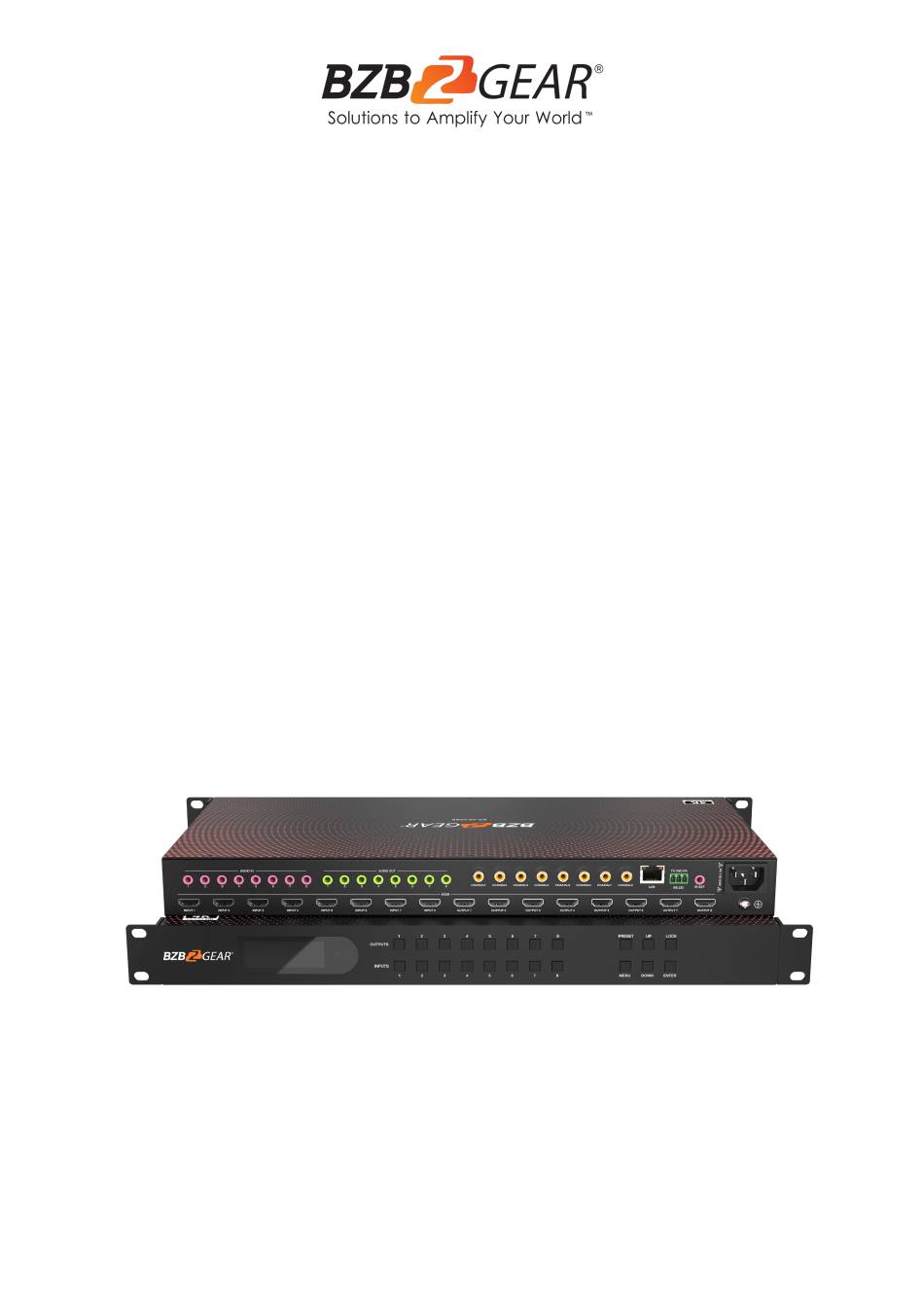

BG-4K-VP88
4K60Hz HDMI 8X8 Seamless Matrix, Video Wall, & Multi-Viewer
with Audio Embedding and Extraction
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-4K-VP88 and is the answer not in the manual?

Questions and answers

Related Manuals for BZB Gear BG-4K-VP88

Summary of Contents for BZB Gear BG-4K-VP88

  • Page 1 BG-4K-VP88 4K60Hz HDMI 8X8 Seamless Matrix, Video Wall, & Multi-Viewer with Audio Embedding and Extraction User Manual...
  • Page 2 BZBGEAR BG-4K-VP88 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions OSD Information Video Wall Mode Multi-Viewer Mode Image Cropping and TV Coordinate Changes Audio Description Remote Control HDCP Factory Default Setting...

  • Page 4: Statement

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation.

  • Page 5: Introduction

    PRODUCT MANUAL Introduction The BG-4K-VP88 is a 4K60hz HDMI 2.0 seamless matrix with 8 hdmi inputs and 8 hdmi outputs that also supports Multi-viewer & Video wall modes. The unit can be controlled through TCP / IP, RS232, the included remote controller or the front panel buttons. The BG-4K-VP88 has the ability to equalize and amplify HDMI signals to ensure that they are transmitted without loss of quality.

  • Page 6: Specifications

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Specifications HDMI Ports 16x HDMI Type A 19 pin, HDMI 2.0b Standard HDMI Audio LPCM 5.1, DTS 5.1, Dolby 5.1 4K60/50/30/25/24hz HDMI Resolution 1080P60/50/30/25/24hz 720P60/50/30hz HDMI Version HDMI 2.0b/HDCP1.4/2.2 Max Resolution 4K60Hz (4:4:4) Data Speed 18Gbps (6Gbps per color)

  • Page 7: Rear Panel

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Rear Panel Name Function Description Audio Embedded 1~8 3.5MM ports, Sampling Rate: 32K~192Khz Audio Extraction 1~8 3.5MM ports, Sampling Rate: 32K~192Khz SPDIF Extraction 1~8 Coaxial Port, Sampling Rate: 32K~192Khz RS232 Port 3PIN Phoenix port：TX - GND - RX IR EXT 3.5mm ports, supports 38~52Khz frequency...
  • Page 8 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Output includes 9 sub-menus：output 1~8 & all, each channel with video, audio, and power options. Video has 10 options：source, on/off, pattern, formart, genlock, mirror, coord, PIP, wall, image. Audio has 4 options：HDMI on/off, HDMI SRC, DEC on/off, DEC SRC to control audio switching, turn on or off.
  • Page 9 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Power: Turns on or off the HDMI Output 5V. Input contains video, audio, and EDID options. · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 10 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Video has on/off and Pattern options. Pattern is used to replace the picture of the signal with a static image. Audio delay range (0~50, auto), Default setting: auto EDID includes Built-in EDID, User EDID, Copy EDID, Temp, Default setting is using: Default1 With Modify on and after copying the TVs EDID, the audio parameters are automatically changed to LPCM 2.0.
  • Page 11 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Preset can save the current video, audio, EDID, system settings, and supports 8 different scenes/presets. Presets can be modified and called using the web interface, RS-232 commands and the front panel. The default preset is consistent with the factory settings.
  • Page 12 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Demo： Timer can set the demo’s switching time Select function for selecting the demo modes · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 13 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Config contains the Network, RS-232, LCD, OSD, MENU, user EDID, and system setting pages. Network contains options for DHCP, IP, mask, gateway, port, and Mac ID. Default IP：192.168.1.200 TCP/UDP default Port：TCP 5000, UDP 5001 · ·...
  • Page 14 BZBGEAR BG-4K-VP88 PRODUCT MANUAL LCD contains settings for screen brightness levels and screen idle time off settings. · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 15 BZBGEAR BG-4K-VP88 PRODUCT MANUAL There are 4 options in OSD: User, Time, Menu, and Info. User indicates the output coordinate time of OSD. Time indicates the running time after the device is powered on. Menu indicates that the LCD is mapped to the TV.
  • Page 16 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Timer is used to set the idle time before the system sends users back to the main menu (default is 30s). “Select Run” is used to determine whether the confirm button of the last sub-menu is enabled.
  • Page 17 BZBGEAR BG-4K-VP88 PRODUCT MANUAL User EDID: Users can store the EDID information of a connected output display device in the connection matrix to user 1~4, which can be stored in default, output, temp1, and then used in the EDID list.
  • Page 18 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Timed Off indicates timed standby, Timed On indicates timed wake up, and Auto Sleep. Factory contains two options for factory reset. Simple: Partially restores factory settings. User: Restores all factory settings. Query device information including input, output, system, and log. The information can only be queried and cannot be set or changed.

  • Page 19: Video Wall Mode

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Video Wall Mode 1. Supports margin/bezel adjustments. 2. Supports seamless switching of the video wall (displays must have same resolution) 3. Support mirroring of displays in the video wall. 4. Supports multiple simultaneous video wall settings.
  • Page 20 BZBGEAR BG-4K-VP88 PRODUCT MANUAL W-1x3 W-1x4 · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 21 BZBGEAR BG-4K-VP88 PRODUCT MANUAL W-2x1 W-2x1 W-3x1 · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 22: Multi-Viewer Mode

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL W-4x1 Multi-Viewer Mode There are 6 different modes when the Multi-Viewer mode is enabled as shown below: Mode 1 · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 23 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Mode 2 Mode 3 · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 24 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Mode 4 Mode 5 · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 25: Image Cropping And Tv Coordinate Changes

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Mode 6 Image Cropping and TV Coordinate Changes ● Input starting point：CROP X0(0), CROP Y (0), ● Input ending point：CROP X1(3000), CROP Y0(3000) ● Input scaling starting point：ZOOM X0(0), ZOOM Y0(0), ● Input scaling ending point：ZOOM X1(6000), ZOOM Y0(6000) Changing coordinates is only supported in the on-screen display menu;...

  • Page 26: Audio Description

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Audio Description By default the HDMI outputs support uncompressed audio PCM, LPCM 2.0, and SPDIF: 5.1. The maximum sampling rate supports 192KHZ. COPY EDID audio formats are forced into LCPM 2.0. HDMI Source: 1. ENC1~8 indicates which HDMI outputs have selected the embedded audio.

  • Page 27: Remote Control

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Remote Control ：Standby or power on ：Mute button ：Return to upper level ：Move to next level ：Picture off ：Page turn by 100 of the last sub-menu ：Page turn by 10 of the last sub-menu ：Menu ：All output ：Up...

  • Page 28: Hdcp

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL HDCP HDMI Device1 Device2 Device3 Output HDCP2.2/1.4 HDCP1.4 NO HDCP HDCP2.2 HDCP2.2 No signal HDCP1.4 HDCP1.4 HDCP1.4 No signal Off HDCP NO HDCP NO HDCP NO HDCP Factory Default Setting 1）Video：P-to-P, 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8 2）Audio：Audio Embedding turn off, HDMI Output audio on, Extraction on...

  • Page 29: Tech Support

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions.

  • Page 30: Mission Statement

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog.
