SAFETY NOTICE:

If this appliance is not properly installed, a house fire may result.

For your safety, follow the installation directions. Contact local

building or fire officials about restrictions and installation

inspection requirements in your area.

NexGen-Hybrid

 Freestanding Stove

 Mobile-Home Approved

 Alcove Approved

 Hearth-Stove Approved

Save these instructions for future reference

French language manuals at

lopistoves.com.

Manuels de langue Française à

lopistoves.com

$10.00

100-01574

1/12/2023

Endeavor

Wood Stove

Manual

Omni-Test Laboratories, Inc.

Report #0028WS131E & 0028WS131S

Certified to UL-1482 & CAN/ULC-S627

Listed by

Table of Contents

Need help?

Do you have a question about the Endeavor NexGen-Hybrid and is the answer not in the manual?

Questions and answers

Summary of Contents for Travis Industries Endeavor NexGen-Hybrid

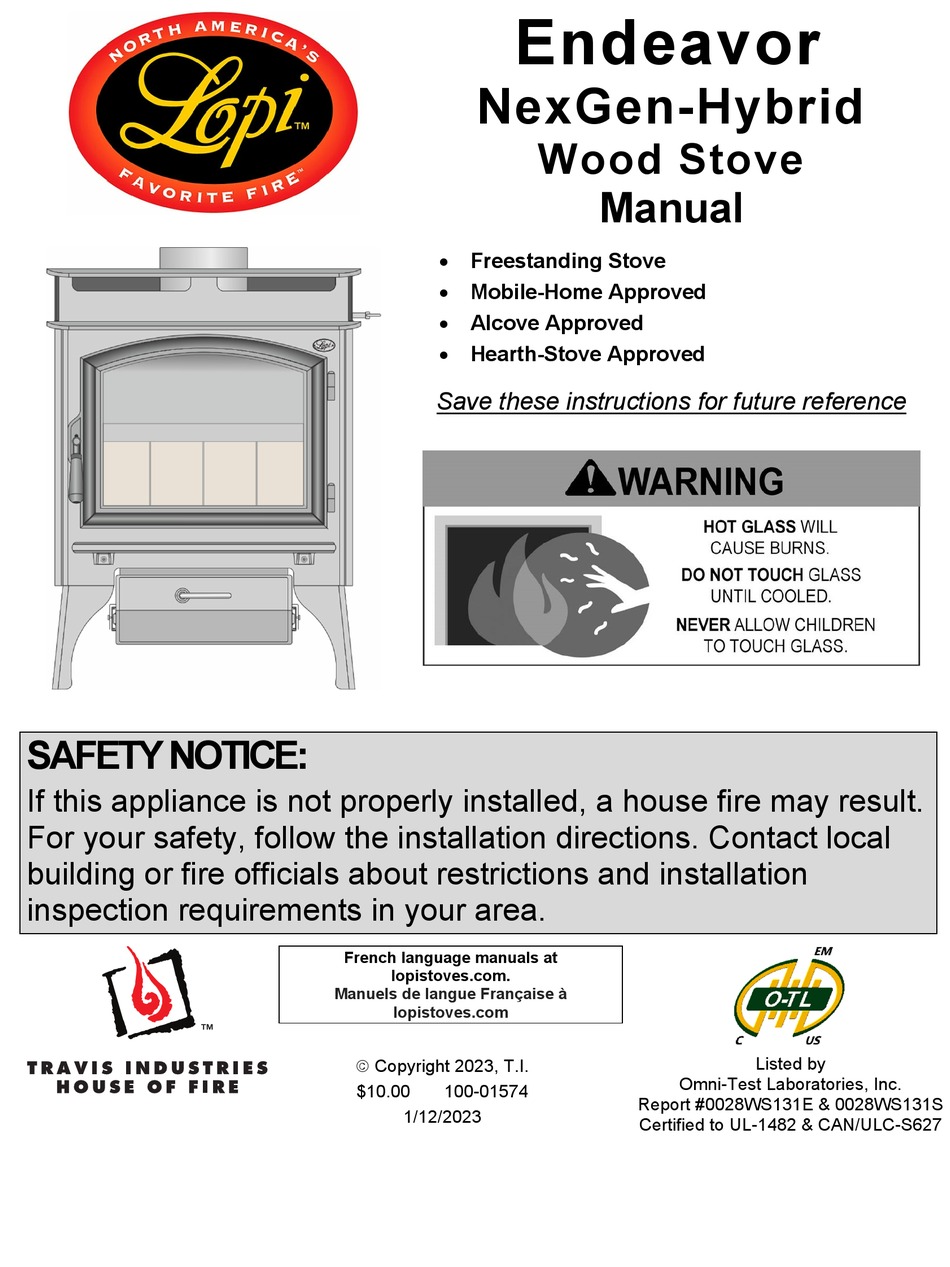

Page 1 Endeavor NexGen-Hybrid Wood Stove Manual  Freestanding Stove  Mobile-Home Approved  Alcove Approved  Hearth-Stove Approved Save these instructions for future reference SAFETY NOTICE: If this appliance is not properly installed, a house fire may result. For your safety, follow the installation directions. Contact local building or fire officials about restrictions and installation inspection requirements in your area.
Page 2: Introduction
Model: Lopi Endeavor NexGen-Hybrid We suggest that you attach your Bill of Sale to this page so that you will have all the information you need Serial Number: in one place should the need for service or information occur.
Page 3: Table Of Contents
GreenStart™ Woodstove Igniter (Part # Understanding Your Heater’s Combustion 94400955) ............51 System ............. 24 Optional Outside Air Kit (Part # 99200139) 52 Burning Your Heater ........24 © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 4: Safety Precautions
Do not place clothing or other air, and not be installed in the flammable items on or near this Mobile bedroom (Per H.U.D. appliance. Home requirements). Check with local building officials. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 5 Avoid placing wood against the glass when loading. Do not slam the door or strike the glass. Travis Industries, Inc. grants Do not throw this manual away. no warranty, implied or This This manual has important...
Page 6: Installation Options
This heater meets the 2020 U.S. EPA’s emission limits for wood heaters. Tested to ASTM 2780-10, ASTM 2515-11, CSA B415.1-10 this heater has been shown to deliver heat at rates ranging from 10,252 to 31,922 BTU/hr. and an emission value of 1.2g/h. Report No. 0028WS131E © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 7: Planning The Installation
Planning the Installation We suggest that you have an authorized Travis Industries dealer install your stove. If you install the stove yourself, your authorized dealer should review your installation plans.
Page 8: Packing List
 Temperature Reader (w. installation inst.) Floor Protection Requirements  The stove must be placed on the Travis Industries legs.  Floor protection must extend to the sides, rear, and front of the stove (see “Clearances” for minimum floor protection).
Page 9: Clearances - Single Wall Connector
Clearances – Single Wall Connector NOTE: Measure rear and side stove clearances from the nearest edge of the stove top. NOTE: Measure front floor protection from the face of the stove (unibody). © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 10: Clearances - Reduced Clearance Connector10
 SECURITY model DP or DL connector with SECURITY model ASHT or S2100 chimney  SELKIRK METALBESTOS model DS connector with model SSII chimney  Standard Masonry Chimney with any one of the above-listed connectors © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 11: Chimney Connector Requirements
Offsets must be used to maintain the stove-to-wall clearance. Mobile homes must use the clearances listed in this manual under "Additional Requirements for Mobile Home Installations".  The Chimney connector must be in good condition and kept clean. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 12: Chimney Requirements
`plugging' of the chimney. Inadequate draft will cause the appliance to leak smoke into the room through the appliance and chimney connector joints. An uncontrollable burn or excessive temperature indicates excessive draft. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 13: Chimney Termination Requirements
Requires the optional outside air kit (sku# 99200139) – see below.  Air duct maximum length is 15’ (4.57M) with a minimum cross section of 16 square inches (10323mm) or 6’ (1.83M) with a minimum cross section of 7 square inches (4517mm). © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 14: Alcove Installation Requirements
All other alcoves are considered combustible. The clearances below must be met: Non-combustible alcove construction (on walls and ceiling) - see the explanation above. Ventilated air space Min. 3 1/2" (89mm) non- combustible material 1" (25mm) Min. Non-combustible reinforcer IDB1121 © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 15: Mobile Home Requirements
(consult your building official). (as outlined above)  WARNING: DO NOT INSTALL IN A SLEEPING ROOM. CAUTION: THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL, AND CEILING/ROOF MUST BE MAINTAINED. IDB1166 © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 16: Standard Ceiling With A Factory Built Chimney
Minimum 15' (4.57M) Maximum 33' (10.06M) Connector Pipe Sections Stove Clearances (See the section "Stove Floor Protection Placement Requirements" (See the section "Floor for more details) Protection Requirements" for more details) IDB1123 © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 17: Exterior Factory-Built Chimney
‘A’ chimney wall penetration (see below). Note that the measurement is to the centerline of the flue when it makes a 90-degree bend. Follow the clearances specified by the manufacturer of the double-wall connector (or 18” if using single-wall connector). © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 18: Hearth Stove Positive Connection
NFPA 211 Standard. See Chimney Connector Requirements on page 10 for further details. WARNING: We recommend that a minimum 3’ chimney be added to the minimum system height for every 1’ of horizontal run. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 19: Safety Notice
Overfiring may lead to damage to plated surfaces. If you are uncertain of over-firing conditions, we suggest placing a stove thermometer (e.g., Rutland® Model 710) directly over the door on the stove top - temperatures exceeding 800° are generally considered over-firing and will void the warranty. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 20: Opening The Door
 Pull the bypass control out when re-loading the stove if needed to prevent smoke spillage.  During normal operation (when the combustor is hot enough), push the bypass in. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 21: Maintaining Combustor Burn-Off
500° F (260° C) indicate the combustor is working and igniting unburnt fuel. The combustor can also be viewed through the glass from below. You will notice the combustor glowing red when the combustor is working effectively. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 22: Before Starting A Fire
This should start the chimney drafting (this eliminates "cold air blockage"). Use plenty of kindling to ensure the stove reaches a proper temperature. Once the kindling is burning rapidly, place a few larger pieces of wood onto the fire. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 23: Adjusting The Burn Rate
The air control may become hot during operation - use gloves or a tool to prevent burns. The air control may take several minutes to influence the burn rate. When making adjustments, you may wish to let the stove burn for 10 minutes to gauge performance. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 25: Ash Removal
1. Twist the ash pan handle down and pull out the ash pan. 2. Lift out the ash pan by the edges and use the handle to transport the ash pan to the metal container. © Travis Industries 1/12/2023 - 1574...
Page 26: Optional Blower Operation
4. In the morning, the stove should still be hot, with embers in the coal bed. Stir the coals and load small pieces of wood to re-ignite the fire, if desired. Differences in chimney height and draft may lower overall burn times. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 27: Normal Operating Sounds
When burned wet wood must release water stored within the wood. This cools the fire, creates creosote, and hampers a complete burn. Ask any experienced wood burner and he or she will agree: dry wood is crucial to good performance. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 28: Wood Cutting And Storage
Burning these materials may result in the release of toxic fumes or render the heater ineffective and cause smoke. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 29: Troubleshooting
By raking these into a pile you can re-start your stove quickly.  Check the ashpan seal, the drawer must close tight and the gasket must seal © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 30: Daily Maintenance (While Stove Is In Use)
The ash acts as a light abrasive. The glass will develop a very slight haze over time. This is normal and will not affect the viewing of the fire. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 31: Monthly Maintenance (While Appliance Is In Use)
Tighten the nut and test the operation. You may need to repeat this process, either moving the nut inwards or outwards until the Door Handle door catch is in the correct position. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 32: Creosote - Formation And Need For Removal
Secondary Air Tubes - Check the (2) air tubes and pins to make sure they are intact and not severely deteriorated. Slight scaling or rusting of the metal is normal. Floor and Wall Firebricks - replace any severely damaged firebrick along the side or floor of the firebox. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 33: Cleaning The Combustor
2. Carefully place the brush surface of the nozzle over the combustor openings and remove any ash or debris. Take care to prevent damage to the combustor (the surface is fragile). © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 34: Combustor Inspection
Step 3 - Engage the bypass mechanism and again observe the emissions leaving the chimney. Significantly more smoke will be seen when the exhaust is not routed through the combustor (bypass mode). Example of combustor Thermal Cracking Example of combustor Masking © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 35: Door Parts
You may need to open and close the door repeatedly to get the gasket to seat fully. Replacing the Door Handle See the illustration above for a component list (see pg. 31 for details on adjusting the door). © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 36: Firebox Parts
Do not pry firebrick - they chip and crack easily. Remove the floor firebricks first. The side firebricks are removed later because they are held in place by the floor firebrick. Clean the firebox prior to replacing the firebrick. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 37: Air Tube Identification
Maintaining Your Appliance Air Tube Identification Air Tube Removal & Replacement © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 38: Baffle Removal & Replacement
(the baffle shown without the body of the stove for clarity). Remove the air tubes as detailed in section “Air Tube Removal & Replacement” on page 37 2. Remove the floor firebricks from the firebox. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 39 Maintaining Your Appliance 3. Remove the side firebricks from the firebox. 4. Release the combustor retainer from the front baffle plate by lifting it. Remove it from the firebox. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 40 7. Remove the bypass extension rod. Gently unscrew the extension rod from the bypass yoke. When it is free of the yoke slide it out of the hole in the side of the stove. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 41 10. Remove the slide plate. Lift the slide plate over the guides on the rear baffle plate and remove it from the firebox. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 42 13. To reinstall the baffle components, follow the above steps in reverse. NOTE: Make sure to use a new gasket when replacing the combustor. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 43 17. If for any reason any section of this warranty is declared invalid, the balance of the warranty remains in effect and all other clauses shall remain in effect. 18. This 7-year warranty is the only warranty supplied by Travis Industries, Inc., the manufacturer of the appliance. All other warranties, whether express or implied, are hereby expressly disclaimed and the purchaser’s recourse is expressly limited to the warranties set forth herein.
Page 45: Optional 400Cfm Blower (Part # 99000144)
(4) 10-24 X 5/8” Screws Convection Blower (3) #8 X 3/8” Screws  Junction Box Bracket (4) #10 Washers  Snap Disc Bracket (1) 1/2” Loop Clamp  Wire Loom (1) Self-drilling screw © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 46: Installation
Use wire cutters to remove one of the tabs securing the blower knock-out in place. Press on opposite sides of the knockout repeatedly to weaken the remaining tabs holding the knock-out in place. Once loose, remove and discard the knock-out. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 47 The junction box bracket is shipped in the Cape Cod / Rockport configuration (note the 45° angle). If installing on an Evergreen, Endeavor, or Liberty, bend the 45° angle flat as shown below. Cape Cod / Rockport Configuration Evergreen / Endeavor / Liberty Configuration © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 48 Attach the junction box bracket to the bottom rear of the stove with three #8 X 3/8” screws. NOTE: Make sure the snap disc contacts the back wall of the stove. If it does not, bend the snap disc bracket to ensure proper contact. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 49 Attach the blower to the rear of the stove with four 10-24 X 5/8” screws and four #10 washers. Connect the blower wires to the wires from the junction box bracket. Attach the wire loom over the wires and Molex connection to conceal and protect the wiring. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 50 Secure the clamp to the bottom of the stove using the self-drilling screw. Evergreen / Endeavor / Liberty Wire Clamp Location Before plugging in the blower, verify all electrical wires and components are intact and do not contact with any hot or moving components. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 51: Greenstart™ Woodstove Igniter (Part # 94400955)
GreenStart™ Woodstove Igniter (Part # 94400955) An optional GreenStart™ igniter is available for your stove. This accessory starts your fire with a simple push of the button. Contact your dealer for details. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 52: Optional Outside Air Kit (Part # 99200139)
The tube on the hood and air duct may be crimped if necessary. © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
Page 56 Troubleshooting ..........29 Floor and Side Firebrick Removal & Why Dry Wood is Key ........27 Replacement ..........37 Wood Cutting and Storage ......28 Floor Protection Requirements ......8 Yearly Maintenance ......... 32 © Travis Industries 1/12/2023 - 1574 Endeavor NexGen-Hybrid...
