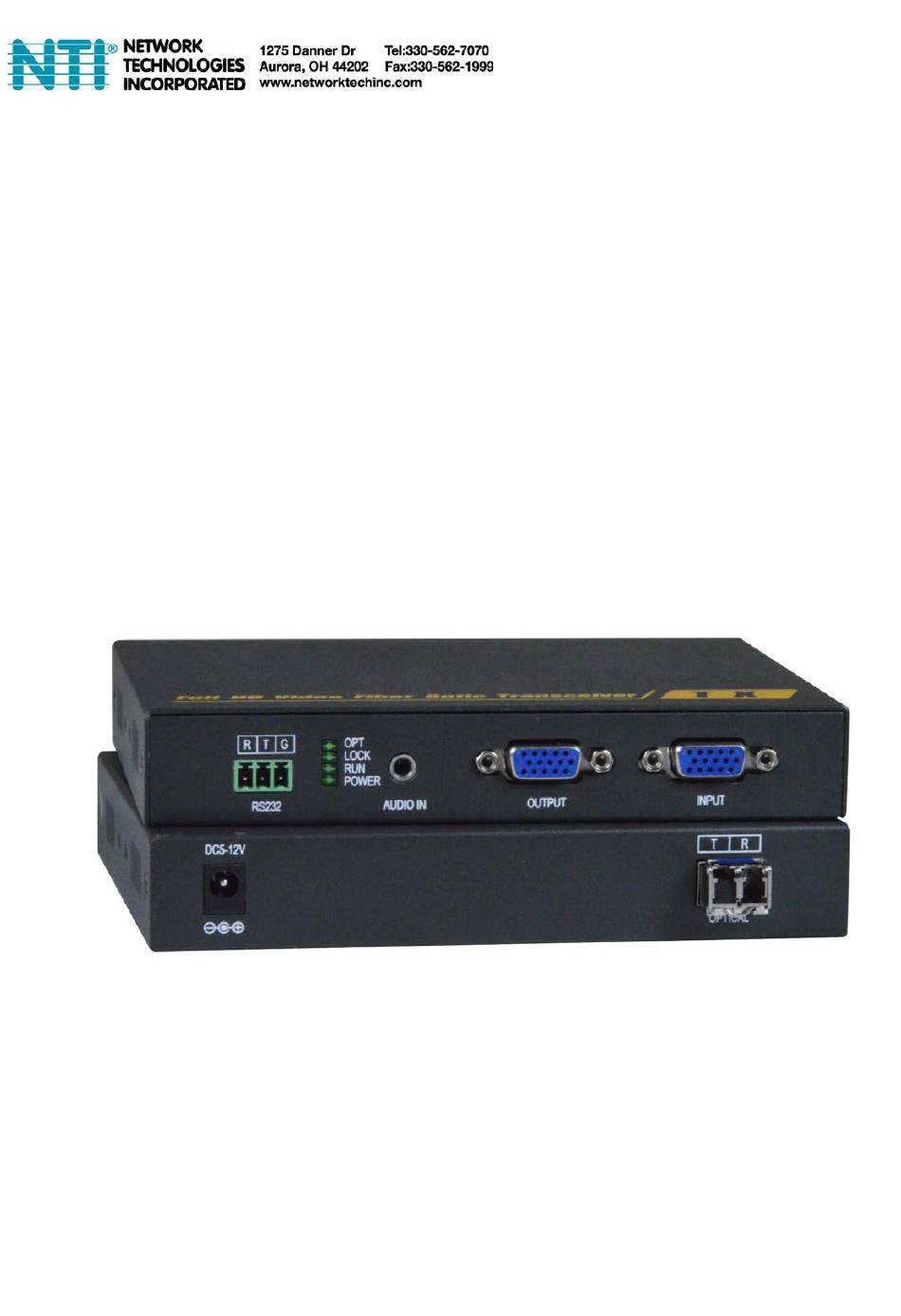

- Page 1 ST-FOVARS-LC VGA Extender via Fiber Optic Cable User Manual...
- Page 2 1. Description The ST-FOVARS-LC Fiber optic extender provides extension of VGA signals long distances over one simplex LC single-mode or multimode fiber optic cable. It supports high resolution up to 1080P, transmitter local output, RS232 signal and external audio transmission function. The extender can be used for a wide range of applications requiring long distance transmission of high resolution with high quality, good stability and powerful security.
- Page 3 3. Specifications Parameter Description Standards Maximum pixel 380MHz clock 1920x1080@60Hz 1600x1200@60Hz / 1680x1050@60Hz Video 1280x1024@60Hz / 75Hz Resolution 1280x800@60Hz / 1280x768@60Hz 1280x720@60Hz / 1024x768@60Hz / 75Hz 800x600@60Hz / 75Hz Impedance 75Ω 3.5mm stereo audio jack Interface Audio Format 44.1K,48K,96K,176K,192K Signal type Stereo 3-pin screw terminals Interface...
- Page 4 4. Panel Transmitter: Receiver: Port name Description VGA IN/OUT VGA signal input/output AUDIO IN/OUT Stereo audio signal input/output RS232 Serial port（G: Ground, T: transmit, R: receive） DC/5V Power adapter socket FIBER SFP module---LC connector LED indicator Description VIDEO Video signal connection indicator LOCK Video signal lock indicator System status indicator...
- Page 5 5. Package list VGA optical fiber transmitter ………. 1 pc VGA optical fiber receiver ……………. 1 pc Fiber optic module TX/RX ……………. 1 set Power adapter ………………………………2 pcs User manual ………………………………… 1 pc 3-Position Terminal Block……………….. 2 pc 6.
