Summary of Contents for NTI ST-FO4K10GB-LC

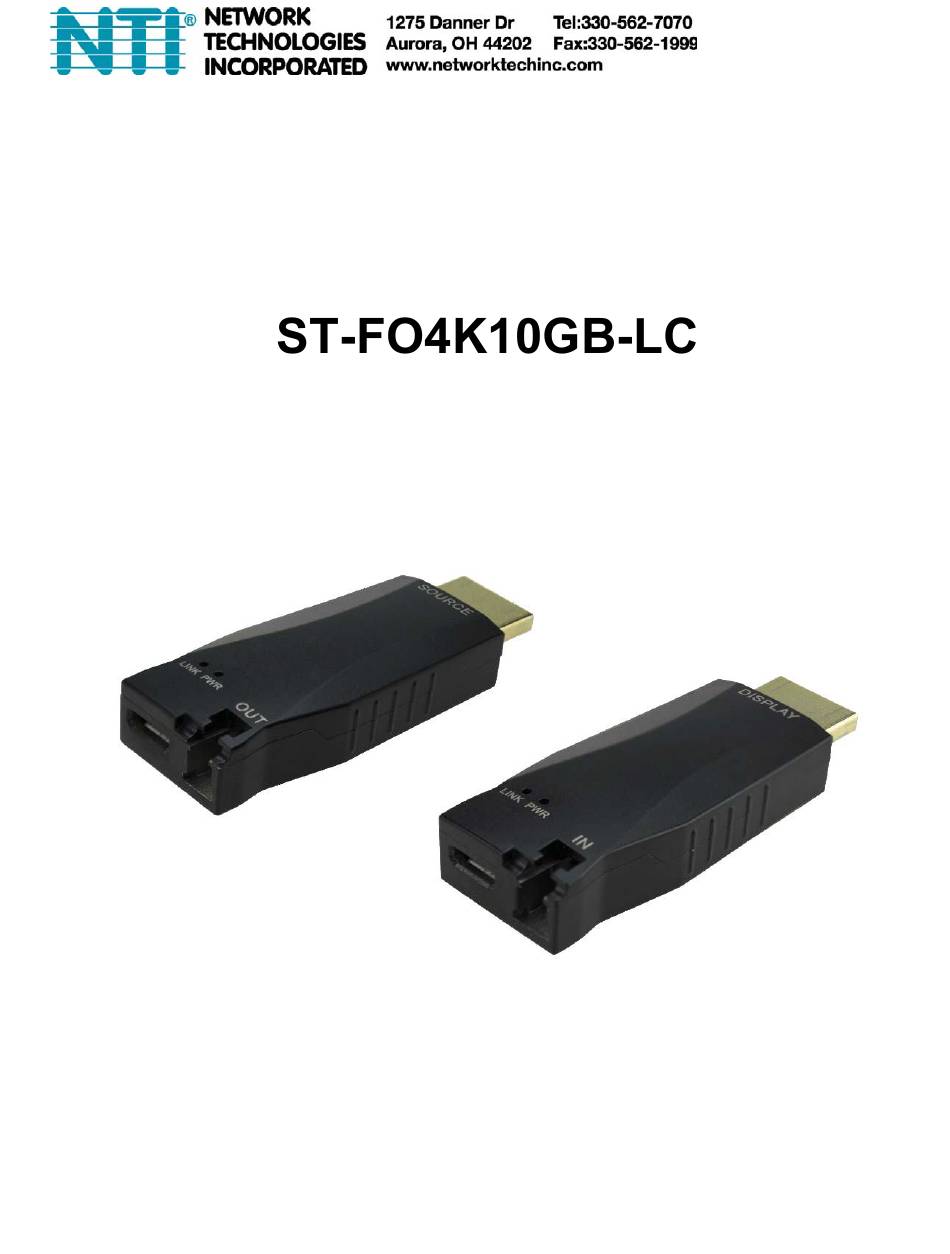

- Page 1 4K Optical Fiber Extender User Manual Transmitter Receiver...
-
Page 2: Fcc Statement
4K Optical Fiber Extender Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. This manual is only for operation instruction lease contact at 330-562-7070 local distributor for assistance. In the constant effort to improve the product, we reserve the right to make function or parameter changes without notice or obligation. -
Page 3: Safety Precautions
4K Optical Fiber Extender SAFETY PRECAUTIONS To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment. - Page 4 4K Optical Fiber Extender Introduction The extender set transmits HDMI signal using an LC Fiber Optic cable. The extender set supports up to 4k resolutions. It extends signals up to 2000m/300m via single mode or multi-mode cable. To achieve the best performance, it is recommend the product be used with OM2 or greater multimode fiber.
- Page 5 4K Optical Fiber Extender Connection: The figure below illustrates a typical Step1. Insert the transmitter into the HDMI port of a HDMI source device (e.g. a PC). Step2. Connect the OUT port of the transmitter to the IN port of the receiver with an optical fiber cable.
- Page 6 4K Optical Fiber Extender Specification Transmitter (1) HDMI Input Signal (1) 19-pin Type A male HDMI Input Connector Input Signal HDMI 1.4 Output Optical Fiber (1) LC connector Output Connector Output Signal Optical Fiber Receiver (1) Optical Fiber Input Signal (1) LC connector Input Connector Input Signal...
-
Page 7: Troubleshooting
4K Optical Fiber Extender Troubleshooting Problems Potential Causes Solutions Color los or vague/ Poor quality HDMI cable Change double image in HDMI display No power Power up the unit Power Make sure power Poor contact USB port adapter is work Turn Source/ Display is source/ display...
