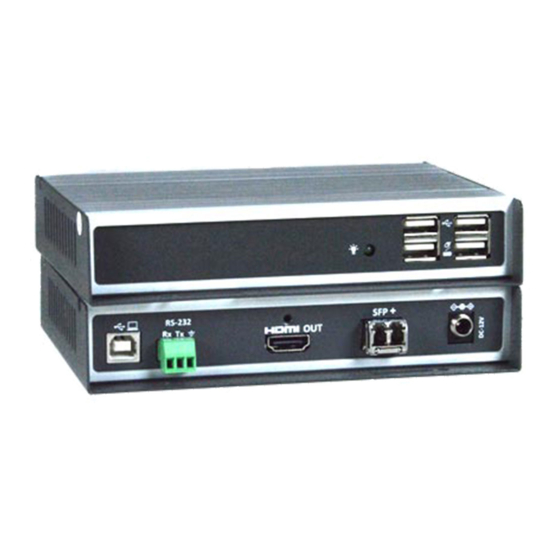

- Page 1 ST - FOUSB4K-LC DVI/HDMI USB KVM Extender Over Optical Fiber User’s Guide...
-
Page 2: System Installation
Front/Rear Panel and Connectors Transmitter Receiver System Installation 1. Attach RX [DVI Out] to monitor by DVI-to-DVI or DVI-to-HDMI cable. 2. Attach keyboard/mouse/Touch screen to the RX USB-A for remote console. 3. Attach PC’s USB to the RX’s USB-B port if there is a local RX PC. 4. - Page 3 TX Hot-key Operation a. <Scroll Lock><Scroll Lock>L <Enter> ---> Lock/Unlock remote access (toggle) b. <Scroll Lock><Scroll Lock>U <Enter> ---> enter Firmware Upgrade Mode RX Hot-key Operation a. <Scroll Lock><Scroll Lock>R ---> switch to RX PC. b. <Scroll Lock><Scroll Lock>T ---> switch to TX PC. <Scroll Lock><Scroll Lock>U <Enter>...
-
Page 4: Firmware Upgrade
Method 2: 1. Connect PC COM port to TX. Run TeraTerm on PC, set PC COM port baud rate to 115200 bps 3. Attach a keyboard to TX’s USB downstream, then enter: <Scroll><Scroll>C <Enter> This will force TX in COMMAND mode, press <Enter> to get prompt #. # baud 9600 <Enter>... - Page 5 Specification RECEIVER TRANSMITTER DVI IN DVI OUT USB Upstream USB Downstream 1200, 2400, 4800, 9600, 19200, 38400, RS-232 Baud Rate Support 57600, 115200 bps Max RS-232 throughput 4KB/sec. delay 50 ms. Power DC 12V 1A DVI Resolution Up to 1920 x 1200 @ 60Hz HDMI Resolution Up to 3840 x 2160 @ 30Hz Inter-Connect Cable...
