Eaton CROUSE-HINDS Series Instruction Manual

Weather-proof telephone
Hide thumbs Also See for CROUSE-HINDS Series:
Table of Contents

Advertisement

Quick Links

Download this manual
CROUSE-HINDS
SERIES
Weather-proof Telephone
InduTel IP4
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Eaton CROUSE-HINDS Series

Summary of Contents for Eaton CROUSE-HINDS Series

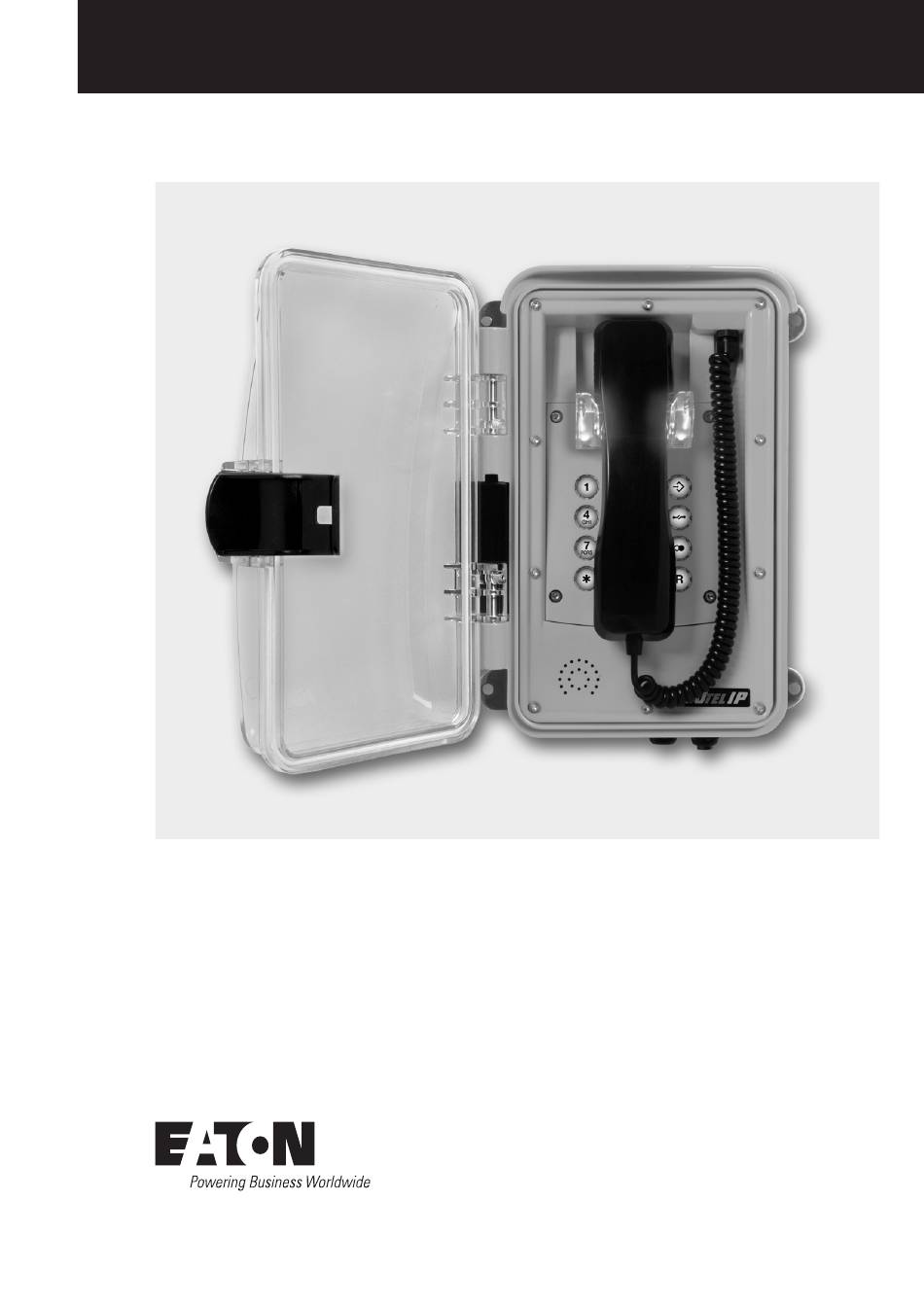

  • Page 1 CROUSE-HINDS SERIES Weather-proof Telephone InduTel IP4 Instruction manual...
  • Page 2 This instruction manual must be read carefully before installing the device. ote: The contents of the packaging must be checked for completeness. InduTel IP4 InsTrucTIon manual TMF037.A August 2022 www.eaton.com...

  • Page 3: Table Of Contents

    DISPOSAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...

  • Page 4: General Operating Instructions

    5. The telephone has a cradle with magnetic contact as a hook switch. To terminate an existing connection, the handset must be hung up. Pressing the disconnect button in the keypad is sufficient for interrupting an existing connection. InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...

  • Page 5: Delivery

    Press and hold the * button, establish power supply, hold button pressed for 7-15 seconds. Username admin Password ip161 Redial list empty Speed-dial memory empty Relay function “on alert” Ringtone “3tone 1” Ringtone speed Ringtone volume Handset volume InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...

  • Page 6: Assembly And Installation

    Contact assignment Contacts 1 – 4 and X502 are model-dependent and are not present in all devices. Tightening torque contacts 1 – 8: 0.35 … 0.4 Nm InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...

  • Page 7: Assembly Of Lan Device Connection Plug Rj45

    Apply the PIN assignment depending on the character of the installation on site. Recommended tool: LogiLink universal crimping pliers WZ0003 Operating elements Speed-dial (1st button) Disconnect Redial Callback / Toggle Number keys InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...

  • Page 8: Dimensions

    Eaton InduTel IP4 Instruction manual Dimensions * Drilling dimensions InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...

  • Page 9: Operation

    The certificate used for this is issued from the device itself . The trust status must be adjusted in the web browser used . Figure 1 . Example of certificate issued from the device in the Chrome browser InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...

  • Page 10: Menus

    Figure 3 . Message after successful login Menus Since the InduTel IP is a display-less VoIP telephone, all settings are managed via the web server. No settings can be made on the device itself. InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...

  • Page 11: General

    6 characters and contain at least one number, one lower-case letter and one upper-case letter. For security reasons, the password must be entered twice. Figure 5 . Administration page for the telephone InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...

  • Page 12: Eth0/Ip4/Ip6

    In the “Relays” sub-menu (Fig. 6) you can configure the settings for the onboard relay as well as for relays 1 and 2. (Relays 1 and 2 not in all models). In the default settings upon delivery, the “Alert on” mode (not shown) is active. InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...
  • Page 13 Phone -> User-(1-6) -> Function-Keys (see: Phone). You can also connect the key illumination as well as the illumination option for the cradle (both depending on model) with actions on the phone (Fig.7). InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...
  • Page 14 (Fig. 8). Extended-Preferences Figure 9 . Extended basic settings In the Extended-Preferences (Fig. 9) menu, extended settings can be configured. The effects of these settings depend on the model and system. InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...

  • Page 15: Phone

    (depending on the model). Fig. 11 shows the factory setting. Figure 11 . Setting the handset and ringtone volumes . The setting of Ring tone volume can be adjusted per registration (sub-menu “User-#”). InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...

  • Page 16: Services

    To activate this, please proceed as follows (Fig. 13 to Fig. 19): Delete the “/session” part in the address bar of the browser and confirm the new address. Figure 13 . Remove “/session” from the URL . InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...
  • Page 17 Log in again. Figure 14 . New login outside the “session” . Check the configuration of the CPU module. Figure 15 . Example CPU configuration InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...
  • Page 18 Have the line end with “ /debug” and click on the “Command” button. Figure 16 . Confirmation after issuing the “config change” command The confirmation “ok” will appear. Then execute the commands InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...
  • Page 19 Eaton InduTel IP4 Instruction manual Restart the telephone. Figure 17 . Reset started Restart your browser and sign in again to the device. InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...
  • Page 20 CPU ... “ but without the “ /debug” addition. Run the commands “!config change CPU ... ” , “!config write” and “!config activate” one after the other and then restart the device. InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...

  • Page 21: Factory Settings

    BOOTCODE with minimal firmware. Fig. 20 shows a BOOTCODE that has started. Figure 20 . Started minimal system In this mode, the telephony function and the corresponding settings are not available. To get back to normal mode, restart the telephone. InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...

  • Page 22: General Information

    10. Changes to the product that serve technical advancement are also possible without prior notice. 11. According to EN60950-1:2006, the relay must not be subject to voltages greater than 42.4 V peak value or 53 V DC voltage. InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...

  • Page 23: Technical Data

    G.711 A-law/μ-law, G.729A , G.722, OPUS (NB/WB) Admin Access via https, password-protected with secure identification Diagnosis Log and trace files (pcap), status displays of interfaces and connections, ping connection test, sending SNMP traps, syslog client PPP over PPPoE/PPTP InduTel IP4 InsTrucTIon manual TMF037.A January 2023 www.eaton.com...

  • Page 24: Declaration Of Conformity

    Their use in whatever form is subject to prior approval 45478 Mülheim an der Ruhr, Germany Tel +49 (208) 8268 - 0 by Eaton. The same applies to Trademarks (especially Eaton, Moeller, Fax +49 (208) 8268 - 377 and Cutler-Hammer). The Terms and Conditions of Eaton apply, as referenced on Eaton Internet pages and Eaton order confirmations.
