Instruction manual
MTL industrial network solutions
MTL RugiCAM-IP
Intrinsically Safe network camera
and LED lighting unit
September 2016
INM MTL RugiCAM-IP rev 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Crouse-Hinds Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton Crouse-Hinds Series

Summary of Contents for Eaton Crouse-Hinds Series

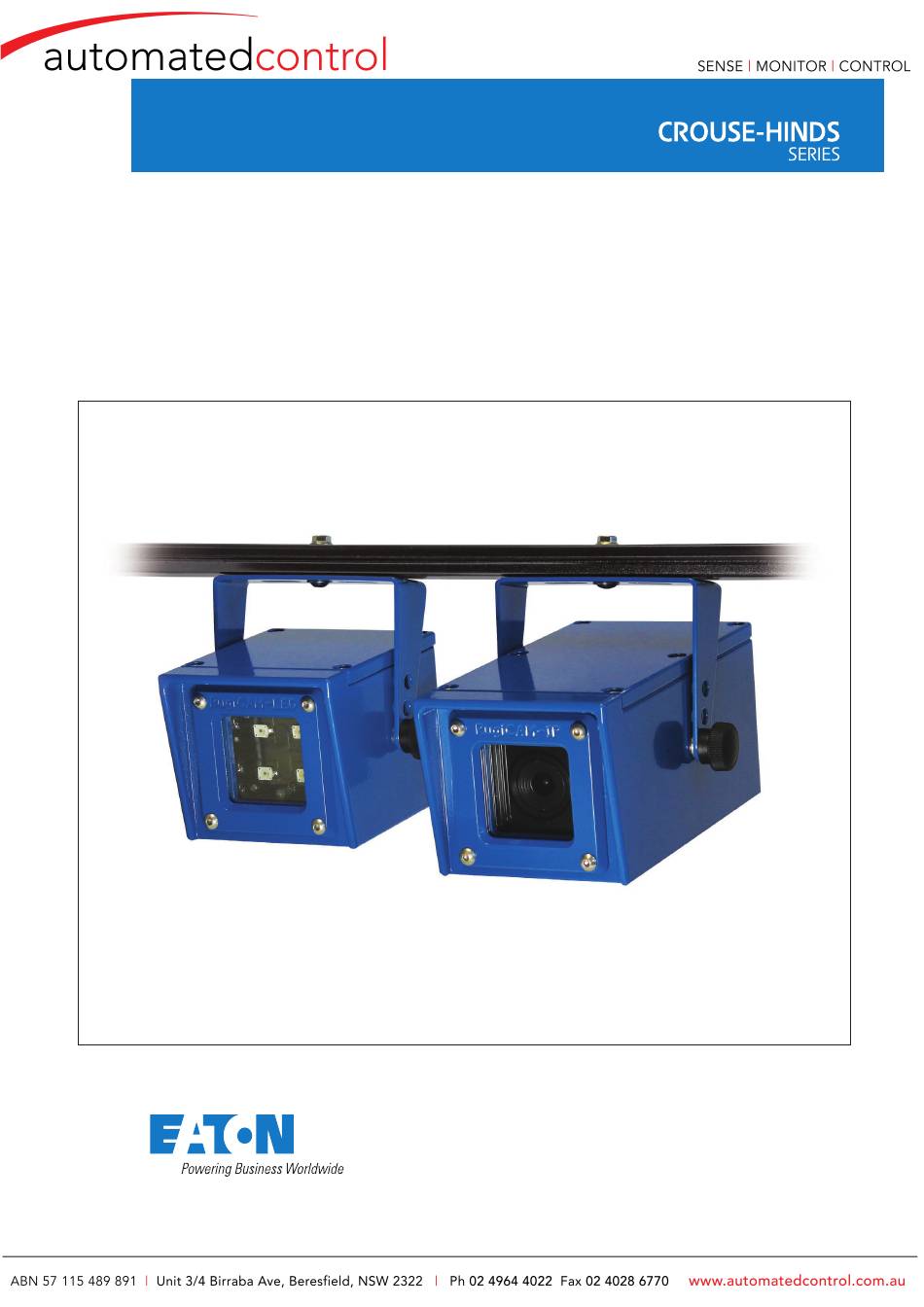

  • Page 1 Instruction manual September 2016 MTL industrial network solutions INM MTL RugiCAM-IP rev 3 MTL RugiCAM-IP Intrinsically Safe network camera and LED lighting unit...

  • Page 2: Declaration Of Conformity

    Declaration of Conformity A printed version of the Declaration of Conformity has been provided separately within the original shipment of goods. However, you can find a copy of the latest version at http://www.mtl-inst.com/certificates INM MTL RugiCAM-IP rev 3...

  • Page 3: Table Of Contents

    DECLARATION OF CONFORMITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . II INTRODUCTION .
  • Page 4 5.11.1 RsPort Setting ..............28/29 5 .12 System Maintenance .

  • Page 5: Introduction

    MTL RugiCAM-IP Intrinsically Safe Network camera and LED lighting unit INTRODUCTION 1 .1 Description The RugiCAM-IP is an Intrinsically Safe IP Network Camera capable of producing high quality colour video images at up to 1920x1080p at 30fps. The H.264 and MPEG-4 compression techniques ensure optimal bandwidth usage of the Ethernet network and compatibility with all major video streaming players.

  • Page 6: Connections

    CONNECTIONS CAMERA UNIT CONNECTORS CAMERA UNIT CONNECTORS 12Vdc Power / RS485 12Vdc Power Wire Colour Description Wire Colour Description X1 4 Pole M12 Connector (M) X1 4 Pole M12 Connector (M) Brown Brown RS485 - A White White RS485 - B +12Vdc Blue Blue...

  • Page 7: Installation

    Camera Unit LED Unit INSTALLATION The RugiCAM-IP is an Intrinsically Safe IP Network Camera capable of producing high quality colour video images at up to 1920x1080p at 30fps. The H.264 and MPEG-4 compression techniques ensure optimal bandwidth usage of the Ethernet network and compatibility with all major video streaming players. Optional LED lighting units are available to further enhance the cameras low light capability where needed.

  • Page 8: Connecting The Rugicam-Ip To A Pc

    CONNECTING THE RUGICAM-IP TO A PC 5 .1 Internet Explorer Connect IS power to the camera from a suitable IS power supply such as MTL 9492-PS-PLUS. 2. Connect the RugiCAM-IP to a PC with Ethernet cable via an IS isolator, such as MTL 9468-ET and power on the camera.

  • Page 9: Connecting Rugicam-Ip To A Network

    7 . Open Internet Explorer, browse for the IP address of the Camera (http://192.168.0.168/). 8. You should see a login Window where you can enter the username and Password. User Name: admin Password: admin 9. If you run this camera at the first time, you may not be able to see the live video before you install ActiveX.

  • Page 10: Ie Interface Overview

    4. Enter password: admin 5. Click “OK” . You will the get to the video preview as show below 5 .3 IE Interface Overview The Window displays real-time video images, as shown in the picture above. The Client interface includes: •...

  • Page 11: Settings

    (Future Development) • Zoom: Zoom level is from 1 to 18. Click “+” or “-” to adjust the zoom level. Auto Focus function will be enabled during zooming. • Focus: Click “+” or “-” to focus the camera manually. Focus Step is from 2 to 30. •...

  • Page 12: Image Setting

    5 .4 .1 Image Setting 5 .4 .2 Basic Adjustment • Brightness: Scroll bar to control brightness. (value ranges from 1 to 255) • Contrast: Scroll bar to control contrast. (value ranges from 1 to 255) • Saturation: Scroll bar to control saturation. (value ranges from 1 to 255) •...

  • Page 13: Exposure Control

    5 .4 .3 Exposure Control • Auto Exposure: Click ‘Auto Exposure’ button to enable auto exposure • Minimum Frame Rate: Use the pull-down list to choose the minimum frame rate. • • • • • • Max Gain: Use the pull-down list to choose the maximum gain 1 ~ 10. •...

  • Page 14: White Balance

    Click ‘Manual Exposure’ button to enable manual exposure • Exposure Time: Input manual exposure time as required. • Gain: Input exposure gain (1 ~ 10) as required. 5 .4 .4 White Balance • White Balance Click ‘Open’ or ‘Close’ to select or deselect Auto White Balance 5 .4 .5 Day-Night Mode Shift: INM MTL RugiCAM-IP rev 3...

  • Page 15: Day-Night Mode Shift

    • Day-Night Mode Shift: Click ‘Manual’ or the ‘Dynamic’ button to enable the required exposure method • Manual: The day/night mode can be set manually. • • Night • Dynamic: The day/night mode can auto switch depending on the brightness. •...

  • Page 16: Wide Dynamic Range (Wdr)

    5 .4 .6 Wide Dynamic Range (WDR) • WDR (Wide dynamic range): WDR is intended to provide clear images even under backlighting conditions, where the intensity of illumination varies a lot. Click buttons to make appropriate selection. • No WDR •...

  • Page 17: Video Setting

    5 .5 Video Setting 5 .5 .1 Video Combo • Main stream • Resolution: Use the pull-down list to choose Resolution. • 1080p: 1920x1080 • 720p: 1280x720 • D1: 704x576 • Framerate: Use the pull-down list to choose Frame Rate . •...
  • Page 18 Use the pull-down list to choose Image Quality. • High • Medium High • Medium • Medium Low • • Very Low • Rate Control: Use the pull-down list to choose Rate Control. • • • Max Bit-rate: Use the pull-down list to choose Max Bit Rate Control. •...
  • Page 19 Click “All Bit Streams”, you will get two live videos on the interface. • Resolution: • D1: 704x576 • VGA: 640x352 • QVGA: 320x192 • Framerate: Use the pull-down list to choose Framerate. • • • • • • Image Quality: Use the pull-down list to choose Image Quality.

  • Page 20: Video Flip

    5 .5 .2 Video Flip Click buttons to make appropriate selection. • • Horizontal • Vertical • Both 5 .5 .3 Text Overlay Click check box to make the appropriate selection. • Main Stream overlay: • Enable • Text • Position: Use the pull-down list to choose Position.
  • Page 21 • Sub Stream overlay: • Enable • Text • Position: • Lower-left corner • Lower-right corner • Upper-left corner • Upper-right corner • Offset X Enter the appropriate offset setting. • Offset Y Enter the appropriate offset setting. • Time overlay: Click the Enable check box.

  • Page 22: Area Mask

    5 .5 .4 Area Mask There are two ways to select the area mask. Quick select and Value input select Up to 4 area masks can be set on the video. • Quick select: 1 Click “Enable” check box and click “Edit” on the right. 2 Drag mouse on the video to select the area mask.

  • Page 23: Video Analytics

    5 .6 Video Analytics 5 .6 .1 Face Recognition (Optional): Use the pull-down list to choose Face Recognition options. • • Detect • Enhanced Detect • Region of Interest (ROI): • X: Enter the x-axis value of the starting pixel for ROI •...

  • Page 24: Motion Detection

    • Privacy Mask: Use the pull-down list to choose Privacy Mask options. • Enable Privacy Mask: OFF / ON • Mask Option: Choose privacy mask pattern. The default value is Black Box. 5 .6 .2 Motion Detection • Click on the video interface or click “Select All” to select region of interest.

  • Page 25: Audio Setting (Not Supported)

    5 .7 Audio Setting (Not Supported) 5 .8 Time Setting • Time Zone: Use the pull-down list to choose required Time Zone. • Time Setting: Click buttons to make the appropriate selection. • Synchronize with computer time. • Synchronize with SNTP server. INM MTL RugiCAM-IP rev 3...

  • Page 26: Network Setting

    5 .9 Network Setting 5 .9 .1 LAN Setting • Enable DHCP: Click buttons to make the appropriate DHCP selection. • • • IP address: If you disable DHCP , you can set static IP address. • Netmask • Gateway •...

  • Page 27: Wifi Access

    5 .9 .2 WIFI Access • Enable WIFI: Click buttons to make the appropriate WIFI selection. • • • SSID: Use the pull-down list to choose your wireless network. • Password: Enter the password for your wireless network. 5 .9 .3 WIFI Setting •...

  • Page 28: Streaming Media

    5 .9 .4 Streaming Media • Specify Address : on/off • Service Address : IP address 5 .10 Alarm Setting 5 .10 .1 Alarm Input INM MTL RugiCAM-IP rev 3...

  • Page 29: Alarm Action

    • Enable Alarm: check tick box to Enable Alarm Function • Motion Detection: Close/Open • Ethernet Lost Alarm: Close/Open • Audio Alarm: Close/Open • External Triggers: Close/Open • Mask Alarm: Close/Open 5 .10 .2 Alarm Action • Voice Play: Close/Open Use the pull-down list to select •...

  • Page 30: Ftp Setting

    • Snapshot • Send Email: Close/Open • Snapshot • Video Length: Use the pull-down list to select Video Length • • 10 s • 30 s • Quantity of Image: • 5 .10 .3 FTP Setting • FTP Server: • FTP Port: •...

  • Page 31: Email Setting

    • FTP Password: • FTP Directory: 5 .10 .4 EMail Setting • Email Server IP: • Email Server Port: • Sender account: • Sender Password: • Sender Email Address: INM MTL RugiCAM-IP rev 3...

  • Page 32: Rsport - (Not Used At Present)

    • Receiver Email Address: 5 .11 RsPort - (Not used at present) 5 .11 .1 RsPort Setting • Enable RS485: select On/Off • Baud Rate Use the pull-down list to select options • 19200 • 9600 • 4800 • 2400 •...
  • Page 33 • • Parity Check Use the pull-down list to select options • None • • Even • Space • Stop Bits Use the pull-down list to select options • • • PTZ Protocol Use the pull-down list to select options •...

  • Page 34: System Maintenance

    • User-Defined 5 .12 System Maintenance 5 .12 .1 Device Upgrade 5 .12 .2 Restart Device Click “Restart” button to restart camera 5 .12 .3 Restore to factory settings Click “Submit” button to reset the camera INM MTL RugiCAM-IP rev 3...

  • Page 35: Event Log

    5 .12 .4 Event Log You can check the system log in this section 5 .12 .5 SNMP Setting • Function On/Off: Enable/Disable • Server IP • Port • Interval 5 .12 .6 Edit User • Add new user: Click “Add new user” , you will get following window. INM MTL RugiCAM-IP rev 3...

  • Page 36: Recording Management

    • User: Enter the new user name • Authority Use the pull-down list to select options • Admin • Operator • Viewer • Password: Enter the password of new user • Edit User: Click “Edit” to edit user • Delete User: Click “Delete” to delete user 5 .13 Recording Management 5 .13 .1 Recording Plan...

  • Page 37: Sd Management

    • Image • Video • Shared Folder Storage: OFF / ON Use the pull-down list to select options • Image • Video • Update to FTP: OFF / ON Use the pull-down list to select options • Image • Repeat •...

  • Page 38: About Product

    5 .14 APPENDIX E - DECLARATION OF CONFORMITY About Product 5 .14 .1 Camera Information • Camera Name • Product Model • Hardware Version • Software Version • Sensor INM MTL RugiCAM-IP rev 3...

  • Page 39: Mechanical Details

    MECHANICAL DETAILS All values are approximate. Camera Unit Width Height Depth Weight 87mm 79mm 165mm AA* = 1.5Kg CS* = 3.5Kg LED Lighting Unit Width Height Depth Weight 87mm 79mm 105mm AA* = 1.5Kg CS* = 3.5Kg *Enclosure Material AA = Anodised Aluminium CS = Coated / Painted Steel ENVIRONMENTAL Operating Temperature...

  • Page 40: Conformity

    CONFORMITY Refer to Declaration of Conformity in Appendix E. MAINTENANCE No routine maintenance is required other than cleaning the glass window. Any damage that may affect the safe operation of the unit, e.g. – damage to the enclosure, glass window, connectors or cables should be corrected by replacing the unit / part / cable with manufacturer approved spares.

  • Page 41: Certification

    CERTIFICATION Ex ia I Ma, Category M1 Ex ia IIB T4 Ga Ex ia IIIC T135°C Da CML 15ATEX2016X IECEx CML 15.0008X See certificates for further information. 10 .1 Marking Details Part No. 9456-ET-xx IP Camera Part No. 9459-ET-xx IP WiFi Camera Part No.

  • Page 42: Ordering Information

    ORDERING INFORMATION Camera and LED Units IP-CAMERA – ALUMINIUM ENCLOSURE 9456-ET-AA 9459-ET-AA IP-CAMERA (WITH WIFI) – ALUMINIUM ENCLOSURE 9457-IR-AA IR LED UNIT – ALUMINIUM ENCLOSURE 9457-WH-AA WHITE LED UNIT – ALUMINIUM ENCLOSURE GREEN LED UNIT – ALUMINIUM ENCLOSURE* 9457-GR-AA 9457-RD-AA RED LED UNIT –...

  • Page 43: Appendix A - Install Active-X Add-On

    APPENDIX A - Install Active-X add-on to the IE Interface Open IE, Go to Internet Options Security Trusted sites. Click Sites, uncheck Require server verification (https:) for all sites in this zone and add the IP address of camera to Websites. For example: http://192.168.0.* Click Custom level, enable Download unsigned ActiveX controls and Initialize and script ActiveX controls not marked as safe for scripting.

  • Page 44: Appendix B - How To Use Wifi

    APPENDIX B - How to use WIFI 1. For the first time you use the WIFI function, you need to enter IE interface with network cable and go to Network Setting⇔ WIFI Access to enable the WIFI. Then select the WIFI ID and enter password. Click Save, the camera will reboot.

  • Page 45: Appendix C - Streaming Video Via Rtsp On Vlc

    APPENDIX C - Streaming video via RTSP on VLC Open VLC media player. Click the Media tab. Open Network Stream. In the next window, enter the URL rtsp://<IP_address>:554/0 for main stream or rtsp://<IP_address>:554/1 for sub stream, then click Play, you will get the video INM MTL RugiCAM-IP rev 3...

  • Page 46: Appendix D - Milestone Xprotect Surveillance Software

    APPENDIX D - Milestone XProtect Surveillance Software Milestone XProtect is a surveillance software program. You can try it free for 30 days and need to purchase a license if you wish to keep using it. This guide just briefly illustrates the procedure to run a RugiCAM-IP camera with Milestone XProtect.
  • Page 47 Select and click Scan for Hardware. NOTE Please refer to the user guide of Milestone XProtect if you want to use other ways to add hardware device. Select Scan local network and click next. Select all manufacturers (default), then click Next. INM MTL RugiCAM-IP rev 3...
  • Page 48 NOTE INM MTL RugiCAM-IP rev 3...
  • Page 49 If the auto-scan cannot get the device, please click Rescan to scan it again, or you can also use other ways in last window to get the device. Select LI-M38 Camera and deselect the USB Driver and click next. The following screen appears: click OK.
  • Page 50 Select Open to select Camera properties and the following screen appears: INM MTL RugiCAM-IP rev 3...
  • Page 51 5 . Manage the functions Motion Detction can be selected as shown below: Sensitivity and Motion can be used to adjust the level. When the green bar is over the line, the video from the camera will be recorded. INM MTL RugiCAM-IP rev 3...
  • Page 52 You can also check Show grid to set the detection regions. Set Privacy Masking The blocks you select will be a black area in video you get from camera. After you set the properties, click OK to save it. INM MTL RugiCAM-IP rev 3...
  • Page 53 Open Milestone XProtect Smart Client This allows you to view all cameras and view recorded video. NOTE If you want to know more about the functions and settings, please refer to the user guide of Milestone XProtect. INM MTL RugiCAM-IP rev 3...

  • Page 54: Glossary Of Terms

    16 GLOSSARY OF TERMS • Alert: An alert can be in the form of an e-mail or an ftp upload of an image, that occurs when a sensor is triggered, or motion is detected. • AVI: Audio Video Interleaved. A Windows multimedia video format from Microsoft.
  • Page 55 THIS PAGE IS LEFT INTENTIONALLY BLANK INM MTL RugiCAM-IP rev 3...
  • Page 56 MTL Instruments GmbH, Heinrich-Hertz-Str. 12, 50170 Kerpen, Germany UNITED ARAB EMIRATES Cooper Industries/Eaton Corporation Tel: +49 (0)22 73 98 12 - 0 Fax: +49 (0)22 73 98 12 - 2 00 Office 205/206, 2nd Floor SJ Towers, off. Old Airport Road, E-mail: csckerpen@eaton.com...
