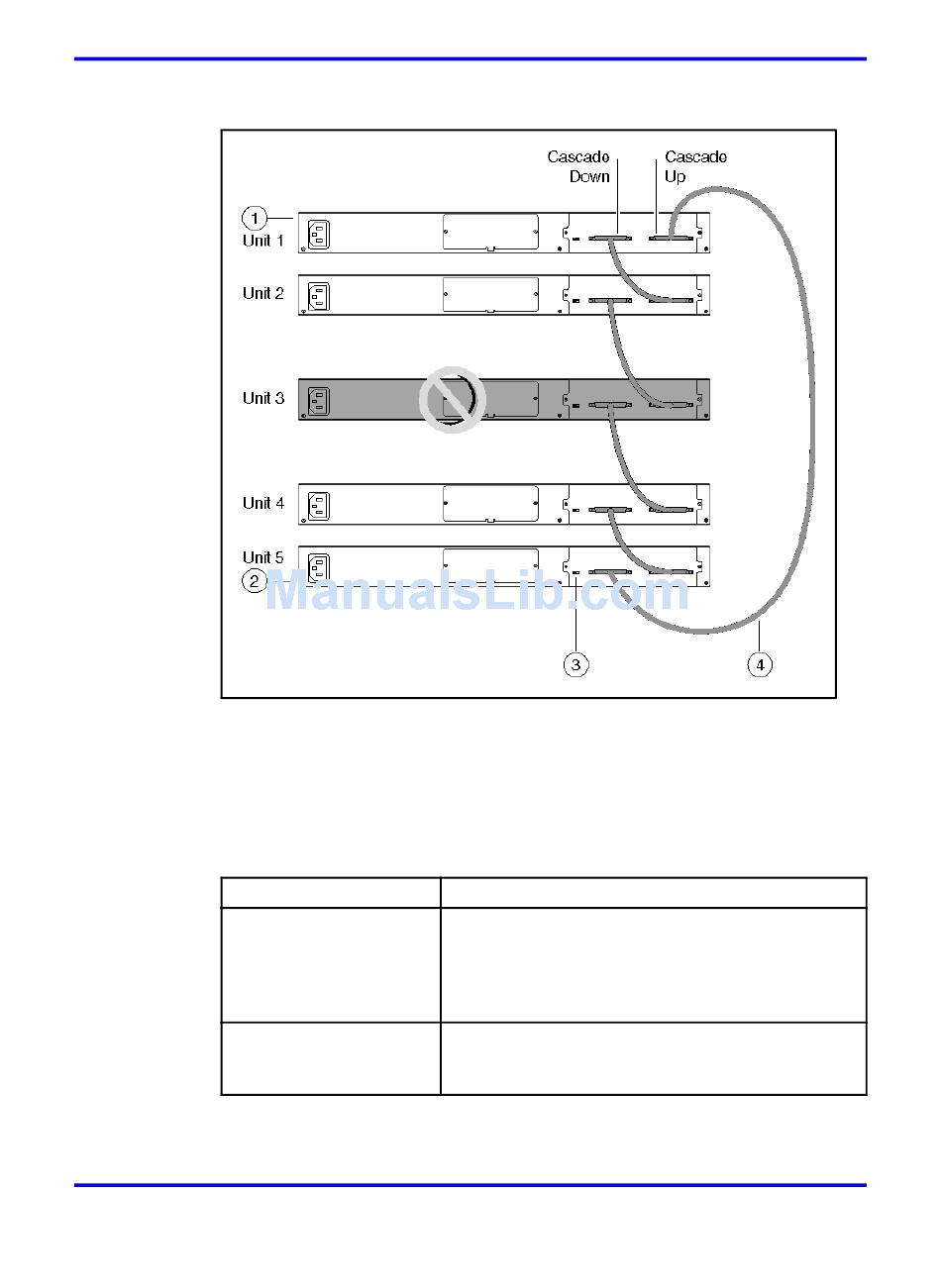

Figure 6
Redundant stack configuration
For stack installation procedures, see

Identifying cables to use with the Ethernet Routing Switch

The following table lists the required cables for a 5000 Series switch and
cable specifications.
Table 2
Switch cabling requirements
Required cable
10/100/1GBase-T Ports
Console Port
Copyright © 2008–2009 Nortel Networks
Description
The interconnect cabling must conform to
the Cat5e, Cat6, or Cat6e specification of the
Commercial Building Telecommunications Cabling
Standard, ANSI/TIA/EIA 568-B fitted with an RJ-45
Module Jack.
Serial cable with a DB-9 female connector on both
ends. The maximum length for the console port
cable is 25 feet (8.3 meters).
ERS 5000 Series Installation
NN47200-300 04.03
13 April 2009
Placement options and cables 39
"Stack configuration" (page 88).
