User Controls - Radiodetection Smart Interrupter 50AG User Manual

The Smart Interrupter is a solid state interrupter,
designed for use by the trained corrosion
technician on cathodic protection systems in
outdoor locations. For safe operation of the
equipment please ensure you read, understand
and follow the instructions in this guide.

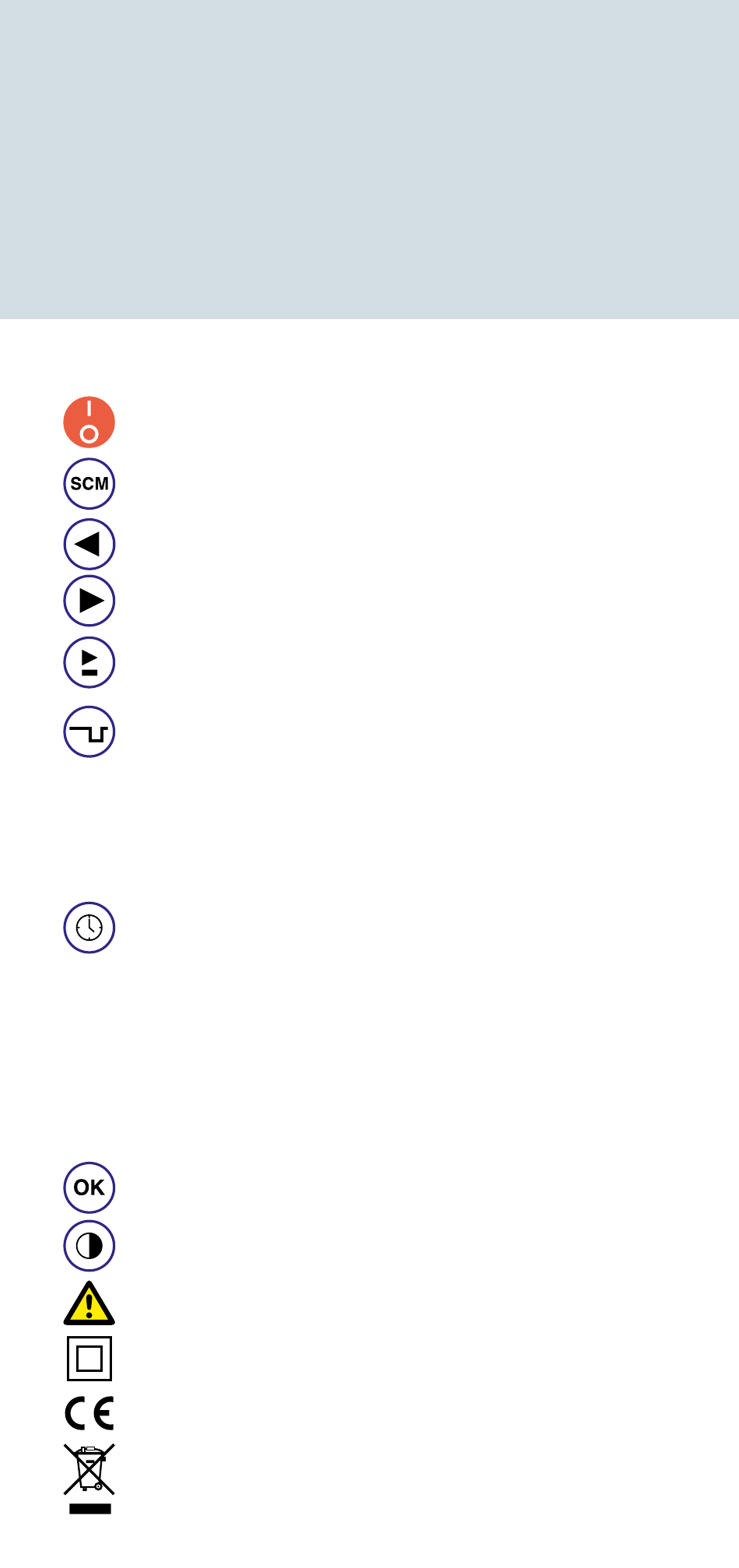

User Controls

Power On/Off
Selects Stray Current Mapper (SCM).
Changes a field, adjusts a time or changes a
selection and selects individual SCM signals.
Stops and starts the Smart Interrupter running.
Selects pulse mode. You can define on and off
pulsing periods – for example, On period 3 seconds,
Off period 8 seconds. Assists in signal identification
when using more than one Smart Interrupter at the
same time.
With the timer function (GPS version only) you can
activate and de-activate the Smart Interrupter at
defined times of the day – for example, activate at
7a.m., and de-activate at 5 p.m., every day until you
disconnect the Smart Interrupter or you change the
timings.
Explanation of symbols used
Confirms all selections.
Enables LCD contrast control.
Caution symbol / Read manual
Double insulation symbol
CE mark
WEEE symbol
