RD7200
Utility cable and pipe locator range
User Guide
Guía del usuario
Guide d'utilisation
Návod k použití
用 户 指 南
Gebruikershandleiding
 ‫دليل املستخدم‬
90/RD7200-UG-INT/01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RD7200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Radiodetection RD7200

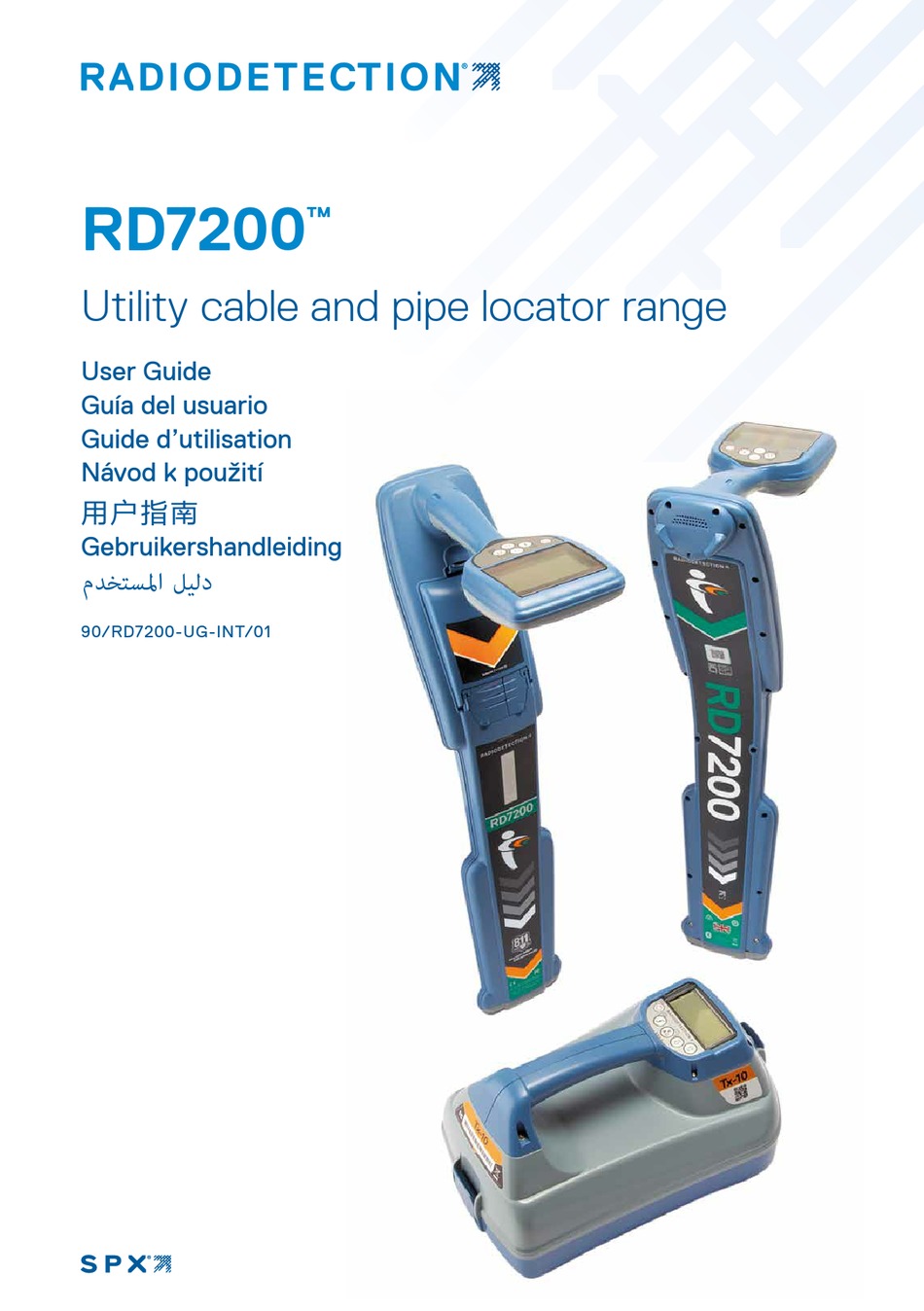

  • Page 1 RD7200 ™ Utility cable and pipe locator range User Guide Guía del usuario Guide d’utilisation Návod k použití 用 户 指 南 Gebruikershandleiding  ‫دليل املستخدم‬ 90/RD7200-UG-INT/01...
  • Page 2: About This Guide

    Online manuals, which are available for ESPAÑOL ™ download from www.radiodetection.com. The online User Manual library also contains links to the RD Manager Online manuals. Certificates of conformity for the RD7200 locators and Tx transmitter ranges can be found at www.radiodetection.com. FRANÇAIS ČESKÝ 中文...
  • Page 3 Self-Test other electromagnetic locator, cannot detect these objects so proceed with caution. There are also some live cables which the RD7200 will not be able to The RD7200 locator is safety equipment which should be regularly checked to detect in Power mode.
  • Page 4: Locator Features

    RD7200 locator Locator features Keypad. 25. A-Frame icon. LCD with auto backlight. 26. Frequency / current / menu readout. Haptic (vibration) feedback. 27. Antenna modes icon: Indicates antenna mode selection: Speaker. Peak / Peak+  / Null / Guidance. ™ Battery compartment. 28. Sonde icon: Indicates that a sonde Accessory connector.
  • Page 5: Transmitter Features

    Tx-5 and Tx-10 transmitters Transmitter features Transmitter screen icons Keypad. 10. Battery level indicator. LCD. 11. Operation mode readout. Removable accessory tray. 12. Standby icon. D-cell battery tray. 13. Output level indicator. Optional Lithium-Ion battery pack. 14. Clamp icon: Indicates when a signal clamp or other accessory is connected.
  • Page 6: Before You Begin

      S H OR T P R E S S ● ■ ■ ■ ● LON G P R E S S The RD7200 locators and transmitters can be powered by D-cell alkaline batteries, D-cell NiMH batteries, or by an accessory Lithium-Ion (Li-Ion) battery pack. Enter the menu.
  • Page 7: Setting Up Your System

    Transmitter menu options • VOL: Adjust the speaker volume from 0 (mute) to 3 (loudest). The RD7200 locator and transmitter menus allow you to select or change system options. • FREQ: Enable or disable individual frequencies. Once entered, the menu is navigated using the arrow keys. Navigation is consistent on both •...
  • Page 8 Passive frequency detection takes advantage of signals that are already present on The RD7200 locator is designed to operate buried metallic conductors. The RD7200 supports up to three types of passive with the ‘blade’ of the locator perpendicular frequencies: Power, Radio and CPS signals. You can detect these frequencies without to the path of the cable or pipe being located.
  • Page 9: Using Accessories

    This is particularly useful with live insulated cables as it removes the need to disable the power and break the line. Dependent on the model selected, the RD7200 offers a choice of up to 4 locate modes, each of which is designed for specific uses, depending on what task is being carried out.
  • Page 10: Care And Maintenance

    Fault-finding with an A-Frame Batteries and power supply The RD7200 models have the ability to detect cable or pipe insulation faults accurately Only use the rechargeable battery packs, chargers and power supplies approved by using an A-Frame accessory. The Tx-5 and Tx-10 transmitters provide fault finding signals Radiodetection.
  • Page 11: Service And Maintenance

    Restart the locator using the key. © 2021 Radiodetection Ltd. All rights reserved. Radiodetection is a subsidiary of SPX Corporation. RD7200, Power Filters, Peak+, eCert, StrikeAlert, SideStepAuto, RD Manager Online and Radiodetection are either trademarks of Radiodetection in the United States and/or other countries.
  • Page 12 Copyright © 2021 Radiodetection Ltd. All rights reserved. Radiodetection is a subsidiary of SPX Corporation. Radiodetection and RD7200 are either trademarks of Radiodetection in the United States and /or other countries. Due to a policy of continued development, we reserve the right to alter or amend any published specification without notice. This document may not be copied, reproduced, transmitted, modified or used, in whole or in part, without the prior written consent of Radiodetection Ltd.
