Radiodetection RD7000+ Operation Manual

Universal precision cable, pipe and rf marker locator
Hide thumbs Also See for RD7000+:
Table of Contents

Advertisement

Quick Links

See also: User Manual

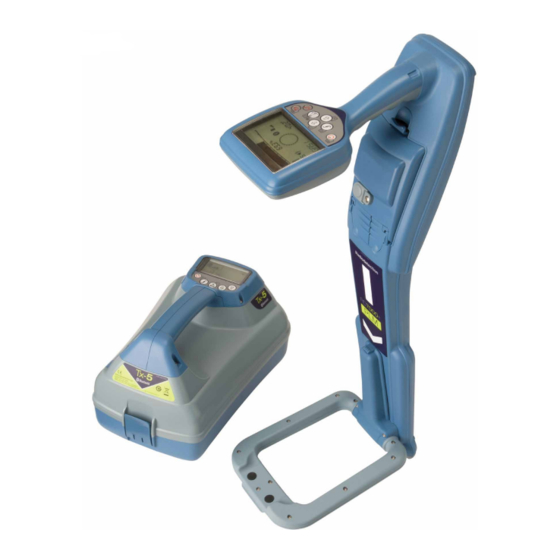

RD7000+
™
Radiodetection's universal precision cable,
pipe and RF marker locator
Operation manual
90/RD7K+M-OPMAN-ENG/03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RD7000+ and is the answer not in the manual?

Questions and answers

Related Manuals for Radiodetection RD7000+

Summary of Contents for Radiodetection RD7000+

  • Page 1 RD7000+ ™ Radiodetection’s universal precision cable, pipe and RF marker locator Operation manual 90/RD7K+M-OPMAN-ENG/03...
  • Page 2 RD7000+, this manual and all its contents are subject to change. WARNING! The RD7000+ locator will detect most Radiodetection Limited reserves the right to modify the buried conductors but there are some objects that do not product without notice and some product changes may radiate any detectable signal.
  • Page 3 Modifications: Any modifications made to this equipment not approved by Radiodetection may void the authority granted to the user by the FCC to operate this equipment.
  • Page 4 © 2014 Radiodetection Ltd...
  • Page 5 © 2014 Radiodetection Ltd...

  • Page 6: Table Of Contents

    6.1.2 TruDepth for buried conductors or sondes .. 21 3.8 Antenna modes ..........12 6.2 Verifying depth measurements ......22 3.9 Backlight ............. 12 6.2.1 Rough depth calibration check ....22 3.10 Bluetooth wireless ..........12 6.3 Current Readings ..........22 © 2014 Radiodetection Ltd...
  • Page 7 8.7 Submersible antenna ......... 31 8.7.1 When to use a submersible antenna ... 31 8.7.2 How to use a submersible antenna ..... 31 Section 9 - Fault-Finding ..........32 9.1 About fault-finding ..........32 9.2 Preparation ............32 © 2014 Radiodetection Ltd...

  • Page 8: Section 1 - Introduction

    If you are unsure what policies or procedures apply, contact your company or From time to time Radiodetection may release new site’s occupational health and safety officer or your local software to improve the performance or add new government for more information.
  • Page 9 Check local authorities for more information. Keep this equipment clean and arrange for regular services with an authorized Radiodetection service center. More information can be found in the Appendix or from your local Radiodetection representative.
  • Page 10 © 2014 Radiodetection Ltd...

  • Page 11: Section 2 - System Overview

    14 Graph key : Send Survey measurements direction of the located cable relative to the locator. Also used as a graphical indication for Marker mode 15 Transmitter key : Not used active 32 Current / depth indicator © 2014 Radiodetection Ltd...
  • Page 12 Figure 2.4 Tx Transmitter Figure 2.5 D-cell battery holder Figure 2.6 Rechargeable battery pack Figure 2.7 Tx Transmitter LCD Figure 2.6: Tx Transmitter keypad © 2014 Radiodetection Ltd...

  • Page 13: Tx1, Tx5 And Tx-10 Transmitters

    Select menus language compatible RD8000 locators POWER Select power frequency: 50 or 60Hz 22 Bluetooth icon (Bluetooth Tx models): Indicates status of Bluetooth connection. A flashing icon Enable or disable antenna modes with the exception of Peak © 2014 Radiodetection Ltd...

  • Page 14: Navigating The Transmitter Menu

    MAX V Set the output voltage Press the key to return to the main operation Enable, disable or pair Bluetooth screen connections (Bluetooth models only) © 2014 Radiodetection Ltd...

  • Page 15: Section 3 - Operation

    LCD segment check. It will then display the model number followed by the software version. This information is important if you need to contact Radiodetection technical support or update your locator to the latest software. Figure 3.2 Charging the locator Li-ion battery pack...
  • Page 16 Close the tray and insert 2 D-cells To remove/fit a battery holder: Open the battery compartment using the release catch Un-plug the battery lead connector (fig.3.1) Lift the accessory cover slightly (fig 3.5) Figure 3.5 Lifting accessory cover © 2014 Radiodetection Ltd...

  • Page 17: Shutting Down

    BATT menu key until the screen blanks off. Scroll up or down to select the correct battery type NOTE: The locator will automatically power off if no keys are pressed after a five minute duration. © 2014 Radiodetection Ltd...

  • Page 18: Power Frequency (Locator Only)

    Scroll up or down to select a specific marker Press the key (on the locator) or the key (on Press the the transmitter)to enter the FREQ menu Scroll up or down to select the frequency Scroll to OFF or ON using the keys © 2014 Radiodetection Ltd...

  • Page 19: Volume Control

    To help you orientate the locator correctly, you can use the locator’s compass feature on the display – feature All RD7000+ marker locators feature a Bluetooth not available in marker mode. wireless module as standard, providing the ability to © 2014 Radiodetection Ltd...

  • Page 20: Sidestepauto

    In Eco mode the power output of the transmitter Press the key to exit the menu reduces when the batteries can no longer provide the required output power. NOTE: You can also disable SideStepauto just by changing frequency. © 2014 Radiodetection Ltd...

  • Page 21: Measure Mode

    3.16 Automatic Logging 1. Connect the direct connection leads to the utility and switch on the transmitter. RD7000+PLM and TLM locator models offer a powerful data logging system which records all the instrument’s 2. Hold down the key until MEAS is displayed critical parameters and warnings in its internal memory and the measuring icon is activated.

  • Page 22: Section 4 - Locating Cables And Pipes

    Clamps are available up to 8.5” / 215mm in The display will show the Direct connection lead diameter. connected icon WARNING! Do not clamp around uninsulated live conductors © 2014 Radiodetection Ltd...

  • Page 23: Selecting Frequencies

    To select Peak/Null mode: In peak mode the following indicators are displayed by the LCD: Press the key until the Peak/Null mode icon  Depth is displayed on the LCD  Current  Null mode © 2014 Radiodetection Ltd...

  • Page 24: Compass

    There are a number of techniques available for locating unknown lines in an area. Using these techniques is particularly important before conducting any excavation work to help ensure that buried lines are not damaged. Figure 4.1: Line Tracing © 2014 Radiodetection Ltd...

  • Page 25: Passive Sweep

    This type of each line in turn, and trace the line out of the search search requires a transmitter and locator and two area. people. This type of search is referred to as a ‘two © 2014 Radiodetection Ltd...

  • Page 26: Section 5 - Locating Rf Markers

    The abbreviations for each type of marker are received marker signal. indicated in the table below: To enter combined mode: Press the key to select dual mode. The display will show the null locate features. © 2014 Radiodetection Ltd...

  • Page 27: Locating Rf Markers

    5.2.2 Combined mode locating Use this mode when locating the marker and conductor simultaneously. © 2014 Radiodetection Ltd...

  • Page 28: Section 6 - Depth And Current Readings

    6.1.2 TruDepth for buried conductors near a radio station, check depth by holding the bottom of the antenna 50mm (2”) above the ground and or sondes subtract this reading from the indicated depth. TruDepth and Compass © 2014 Radiodetection Ltd...

  • Page 29: Verifying Depth Measurements

    (for example 700mm / 27½” the condition of cable insulation or pipe coating. for the center of the marker ball to the bottom of the locator). Note the depth as indicated on the locator LCD. © 2014 Radiodetection Ltd...

  • Page 30: About Current Measurements

    The locator will automatically estimate and display depth on the LCD. A signal coupled to a nearby line may distort the accuracy of the measurement. If the accuracy of the © 2014 Radiodetection Ltd...
  • Page 31 Because current measurement is a function of depth, it is only available in the locating modes. Figure 6.7: Current readings using transmitter signals © 2014 Radiodetection Ltd...

  • Page 32: Section 7 - General Locating Tips

    © 2014 Radiodetection Ltd...

  • Page 33: Signal Grounding

    Connection to the cable sheath applies the transmitter away as possible from the expected route of the line. signal for a considerable distance enabling the locator Radiodetection supplies 50 meter and 200 meter to trace cables feeding illuminated street furniture as extension cables for this purpose.

  • Page 34: Section 8 - Using Accessories

    Place the clamp around the pipe or cable and switch the locator on. Radiodetection supply an accessory sheet with pictures and details of all applicable accessories which is Set the frequency to the same as that on the available on the Radiodetection website.

  • Page 35: Transmitter Clamps

    A clamp can sometimes be a more effective method of applying the signal than direct connection. NOTE: It is not necessary to make a ground connection from the transmitter when using the clamp. © 2014 Radiodetection Ltd...

  • Page 36: Available Transmitter Clamps

    60% and machines and blown through the duct. A suitable 80%. Radiodetection locator can then be used to locate the sonde The sonde radiates a peak field from the center of its axis with a ghost signal at each end of the peak. Move 8.5.2 Choosing a suitable sonde...

  • Page 37: Checking Sonde Depth

    The FlexiTrace has a maximum power rating of 1W. Move the locator from side to side until the bar When using the FlexiTrace with a Radiodetection Tx-5 graph indicates a peak. or Tx-10 transmitter the output limit must be set to 1W in...

  • Page 38: Stethoscopes

    NOTE: The submersible antenna is calibrated to work at used at the end of several extension rods joined one frequency. together for identifying inaccessible small cables. Tips for using a submersible antenna: Miniature hi-gain stethoscope © 2014 Radiodetection Ltd...

  • Page 39: Section 9 - Fault-Finding

    To use Fault-Find you will need the may result in the fault not being located. following equipment:  RD7000+ locator © 2014 Radiodetection Ltd...

  • Page 40: Connecting The Transmitter

    Select a fault-finding frequency using the NOTE: If the locator and transmitter are iLOC enabled then you can remotely control the transmitter using the locator. See Section 11 for more information. Obtaining a reference reading: © 2014 Radiodetection Ltd...

  • Page 41: Section 10 - Survey Measurements

    SurveyCERT  Current (see section 11.3) the locator will append position and  time information to the data. Gain  Refer to Section 11 - for more information about Depth Bluetooth pairing.  Signal  Phase © 2014 Radiodetection Ltd...

  • Page 42: Saving Measurements

    PDA is within range and correctly paired. SurveyCERT for PDAs and its operation manual are available as a free download from the Radiodetection For more information about Bluetooth, please refer to web Site: Section 11.

  • Page 43: Section 11 - Bluetooth Wireless Connections

    Press the key to switch Bluetooth off and return interference, device memory and physical obstructions. to the previous menu Ensure that the RD7000+ locator and any other wireless device is sufficiently charged for wireless © 2014 Radiodetection Ltd...

  • Page 44: Resetting Connections

    11.4.1 Resetting connections Paired but connection attempt failed. If you experience problems with the RD7000+ wireless BT005 Power cycling may be required Bluetooth technology features, Radiodetection recommends resetting the connection and then pairing Corrupt response received from your device again. BT006...

  • Page 45: Section 12 - Appendices

    Use good quality Alkaline or NiMH batteries only. RD7000+ PLM and TLM logging models feature an When using an AC adapter, use only Radiodetection internal clock which is used to time and date survey approved adapters. measurements, the 1x second internal logging and for Only use Radiodetection approved Li-ion battery packs.

  • Page 46: Registering Using E-Mail

    12.3.1 Registering using e-mail 12.5 Upgrading software From time to time, Radiodetection may release software If you have problem in obtaining and installing the RD upgrades to enhance features and improve Manager software you can also register your product(s) performance of the RD7000+ locator or transmitter.

  • Page 47: System Specifications

    (3) At 70°F / 21°C with good quality batteries, transmitter output set to 1W. (4) The Li-Ion battery packs can only be stored in temperatures up to 95°F / 35°C. If using alkaline or NiMH batteries check the manufacturer’s datasheet for their recommended storage and operating temperature limits. © 2014 Radiodetection Ltd...

  • Page 48: Supported Frequencies

    Frequency    512Hz    640Hz     8kHz (8192Hz)     33kHz (32768Hz)     65kHz (65536Hz)  83kHz (83077Hz)  131kHz (131072Hz)  200kHz (200000Hz) © 2014 Radiodetection Ltd...

  • Page 49: Rf Markers

    Tx121, Core to core fault isolation transformer, German 10/TX121-DE Tx121, Core to core fault isolation transformer, English 10/TX121-EN Tx121, Core to core fault isolation transformer, French 10/TX121-FR Tx121, Core to core fault isolation transformer, Dutch 10/TX121-NL © 2014 Radiodetection Ltd...
  • Page 50 Additional submersible cable length (per meter) 10/RD0246SUBCABL Headphones 04/LP01 A-frame 10/AFRAME-4K7K8K A-frame Bag 10/RD4FFRXBAG 50mm (2") locator clamp 10/TC2136-4KRX 100mm (4") locator clamp 10/TC1769-4KRX Signal clamp extension rod 10/EXT Soft carry bag 10/LOCATORBAG Hard case 10/RD7K8KCASE © 2014 Radiodetection Ltd...
  • Page 51 02/SU0342 female Lockfast connector, 3/4" (19mm) x 10 BSW 02/SU0676 Spring coupling M10 male 10/SU0335 -GB –F -D -NL FlexiTrace 50m 10/TRACE50 -GB –F -D FlexiTrace 80m 10/TRACE80 9mm 120m Flexrod 10/FLEXRODF120 9mm 60m Flexrod 10/FLEXRODF60 © 2014 Radiodetection Ltd...
  • Page 52 Locator Li-ion mains charger (EU cordset) 10/LI-ION-MAINSCHARGER-EU Locator Li-ion mains charger (UK cordset) 10/LI-ION-MAINSCHARGER-UK Locator Li-ion mains charger (US cordset) 10/LI-ION-MAINSCHARGER-US Locator automotive charger 10/RX-LI-ION-AUTOCHARGER Locator replacement alkaline battery adapter – 3x 10/RX-3DCELL-TRAY D-Cell tray Calibration credits eCert calibration credit 10/RD-ECERT © 2014 Radiodetection Ltd...
  • Page 53 Tel: +61 (0) 2 9707 3222 rd.sales.au@spx.com www.radiodetection.com © 2017 Radiodetection Ltd. All rights reserved. Radiodetection is a subsidiary of SPX Corporation. Radiodetection and RD7000 are either trademarks of Radiodetection in the United States and/or other countries. Due to a policy of continued development, we reserve the right to alter or amend any published specification without notice. This document...
