ACCESSORIES
2. Apply NLGI Grade 2 grease to the inside of the
spacer (3), and install the spacer (3) into the roller
segment (4).
3. Install a ball bearing (6) and grease seal (5) in the
other end of the roller segment (4).
4. Apply NLGI Grade 2 grease to the lips of the grease
seals (1 and 5).
7
9
10
13
TN0251

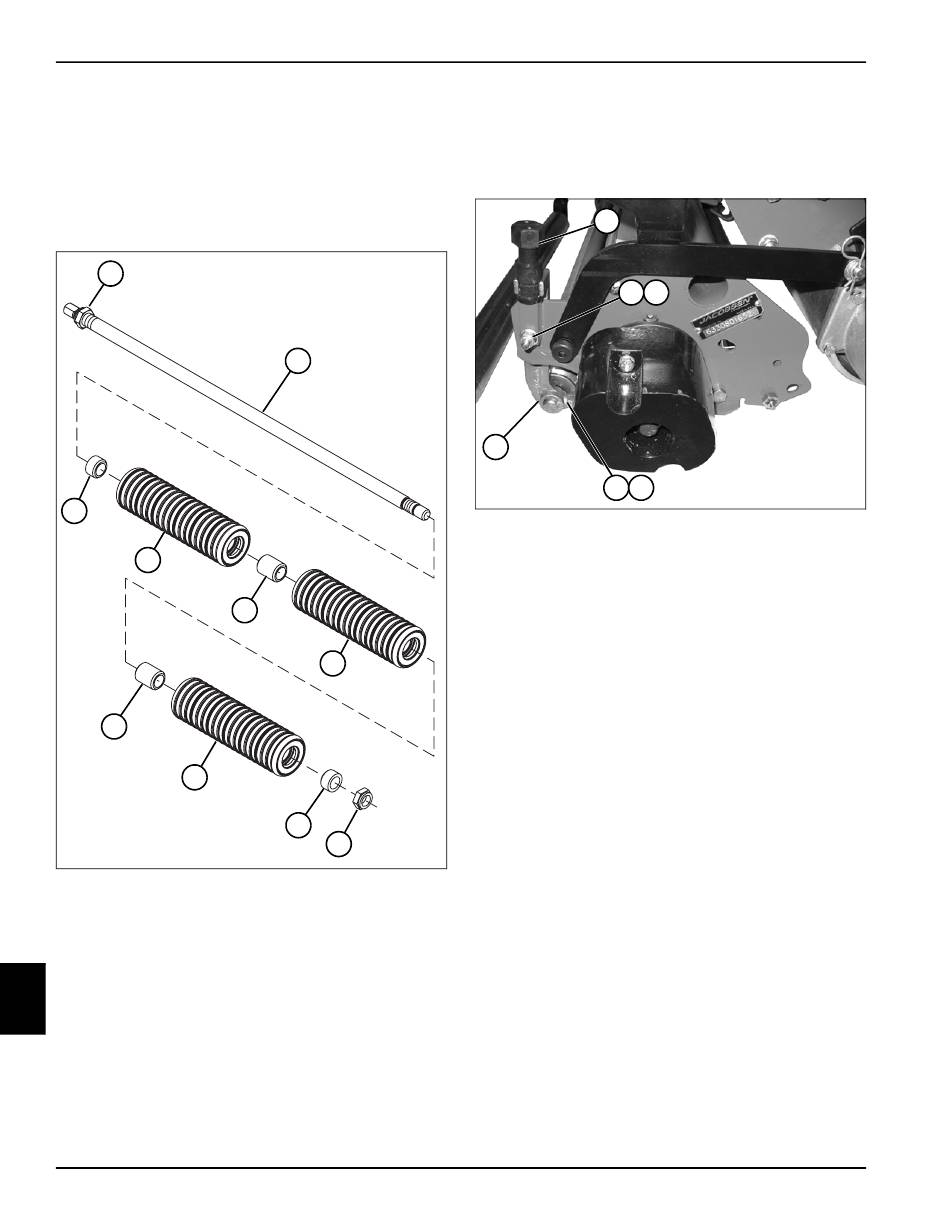

5. Apply a thin film of NLGI Grade 2 grease to the
outside diameter of the short spacer (9), and install
the spacer on the roller shaft (8) with the bevel facing
away from the nut (7).
10
6. Install the roller segment assemblies (10, 12, and 14)
on the roller shaft (8), placing a long spacer (11 and
13) between each of the roller segments.
7. Apply a thin film of lithium grease NLGI Grade 2 to
the inside diameter of the short spacer (15) on the
roller shaft (8).
8. Install hex-jam, nylon-insert nut (16) on the roller
shaft (8).
10-8
8
11
12
14
15
16
Figure 10-15
Installation
See Figure 10-16.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
6
2. Install height-of-cut brackets to roller. Tighten screws
(4) and jam nuts (5).
3. Install the cutting unit front roller assembly (6).
4. Install adjuster knobs (1) to both sides of the mower.
5. Install screws (2) and nuts (3) to both sides of the
mower.
6. Adjust height-of-cut. (See "Height-of-Cut Adjustment"
on page 8-16.)
TN0251
1
2 3
4 5
Figure 10-16
4181381 First Edition
