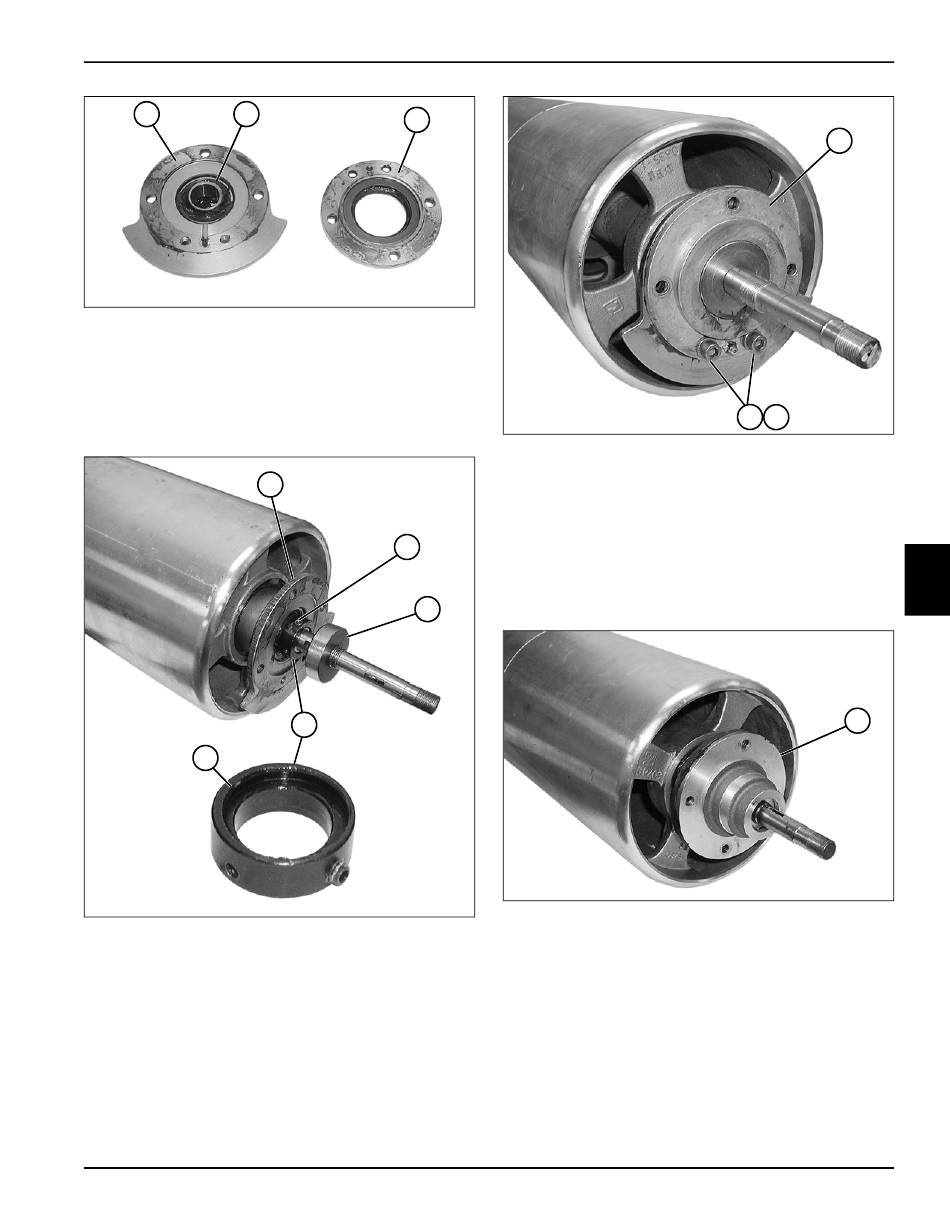

Figure 5-27
3. Clean the mating surfaces of the seal cover (7) and
bearing housing (5), and apply a thin film of Loctite
Aviation Gasket Sealer to the mating surfaces.
4. Pack bearing (6) with NLGI Grade 2 grease before
installation.
12
Figure 5-28
5. Install bearing housing (8).
6. Install locking collar (11) with the recessed side (12)
toward the bearing. Tighten the set screw (9).
7. Install spacer (10).
4181381 First Edition
7
TN0249
8
9
10
11
TN0236, 0240
®
8. Install seal cover (13) using two socket-head screws
(14) and lock washers (15).

Traction Drum Right Bearing Housing

Removal
See Figures 5-30 through 5-34.
1. Remove the seal cover (1).
