Textron JACOBSEN Eclipse 118F Technical/Repair Manual page 151

1

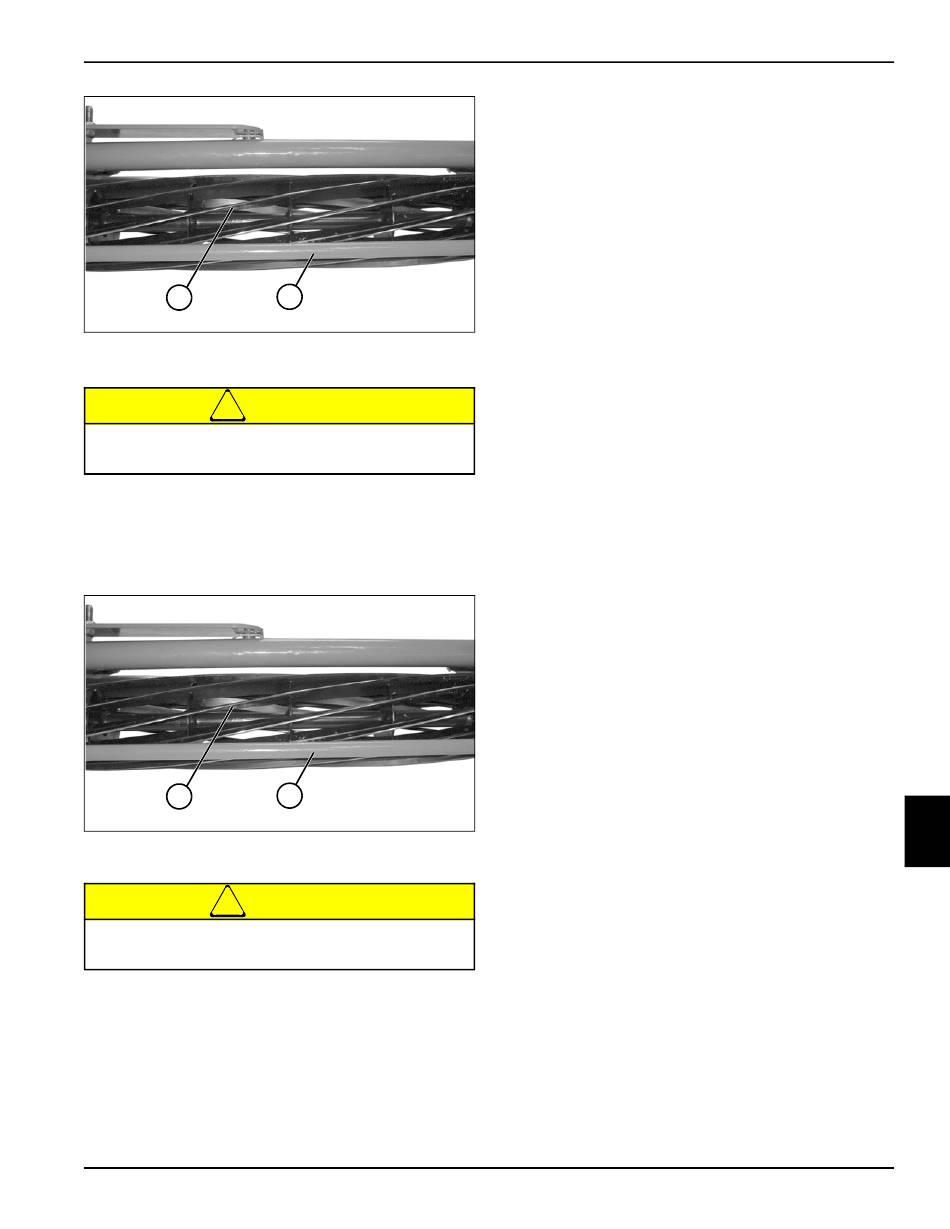

Figure 8-40
!
CAUTION
To prevent personal injury and damage to the
cutting edges, handle the reel with extreme care.
8. Remove the reel (1) from the frame (2).
Installation
See Figure 8-41.
1
Figure 8-41
!
CAUTION
To prevent personal injury and damage to the
cutting edges, handle the reel with extreme care.
1. Install reel (1) into frame (2).
2. Install the right reel bearing housing. (See "Right
Reel Bearing Housing Assembly" on page 8-21.)
3. Install the left reel bearing housing. (See "Left Reel
Bearing Housing Assembly" on page 8-24.)
4. Adjust the reel bearing pre-load. (See "Reel Bearing
Pre-Load Adjustment" on page 8-17.)
4181381 First Edition
2
TN0902
2
TN0902
5. Install grass shield. (See "Grass Shield" on
page 8-19.)
6. Install cutting unit front roller. (See "Cutting Unit Front
Roller" on page 8-28.)
7. Install bedknife shoe assembly. (See "Bedknife Shoe"
on page 8-20.)
8. Install cutting unit to mower. (See "Cutting Unit" on
page 8-18.)
CUTTING UNIT
8
8-27
