Installation

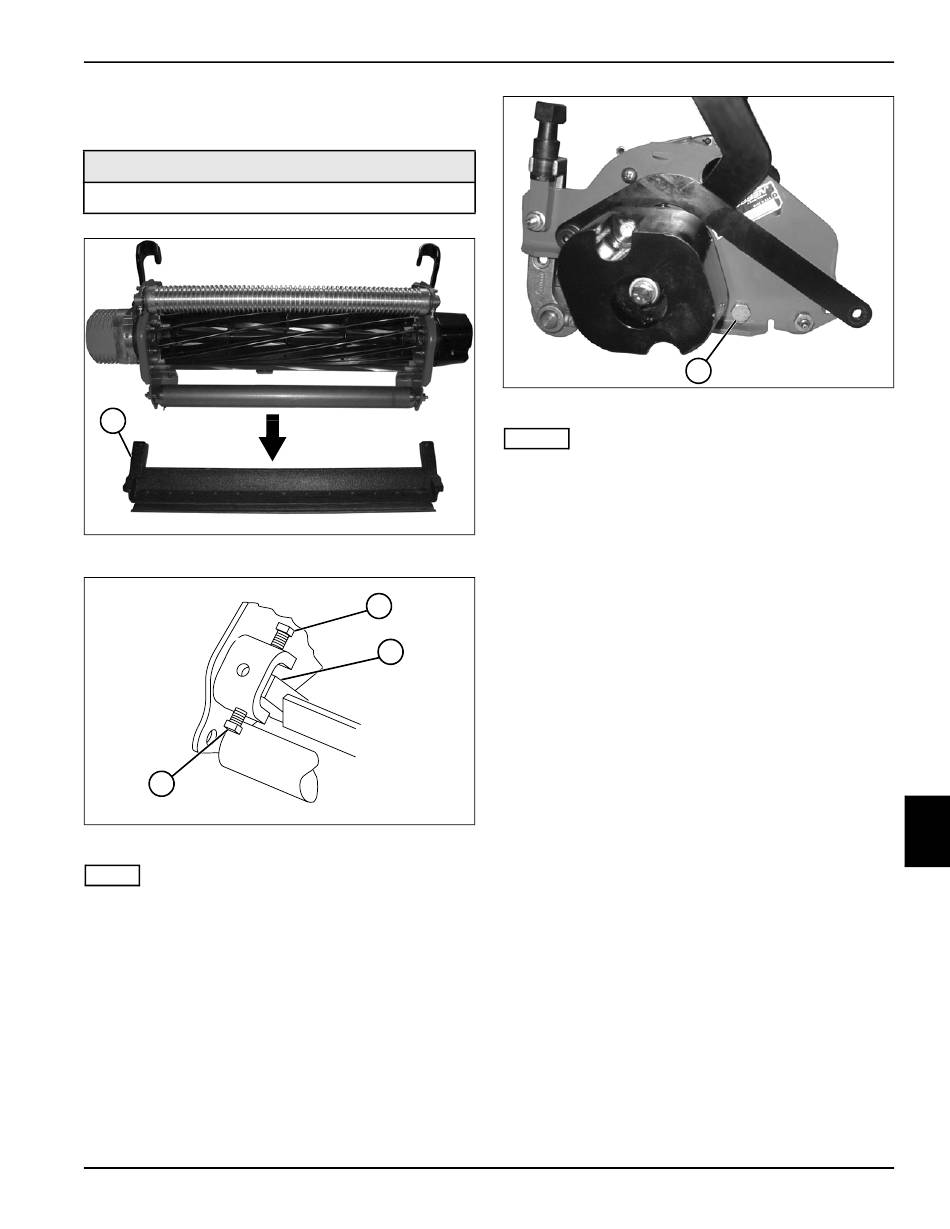

See Figures 8-23 through 8-25.
Required Materials
Anti-Seize Compound
1
Figure 8-23
4
Figure 8-24
NOTE
Steps 1 through 3 apply to both sides of the mower.
1. Install the bedknife shoe assembly (1), positioning
the top of the bedknife shoe (3) between the two
adjuster screws (2 and 4).
4181381 First Edition
NOTES
Apply anti-seize compound to the threads of the bedknife
shoe mounting screws (5) before installing.
2. Install the bedknife shoe mounting screws (5) in the
TN0938 frame and bedknife shoe.
3. Adjust bedknife. (See "Bedknife-to-Reel Adjustment"
on page 8-13.)
4. Install the cutting unit to mower. (See "Cutting Unit"
2
on page 8-18.)
Right Reel Bearing Housing
3
Assembly
Removal
See Figures 8-26 through 8-28.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
2. Remove cutting unit from mower. (See "Cutting Unit"
TN0893
on page 8-18.)
3. Remove cutting unit front roller. (See "Cutting Unit
Front Roller" on page 8-28.)
4. Remove grass shield. (See "Grass Shield" on
page 8-19.)
5. Remove reel drive motor. (See "Reel Drive Motor
Test" on page 4-39.)
CUTTING UNIT
5
Figure 8-25
TN0937
8
8-21
