CUTTING UNIT

Bedknife Shoe

Removal

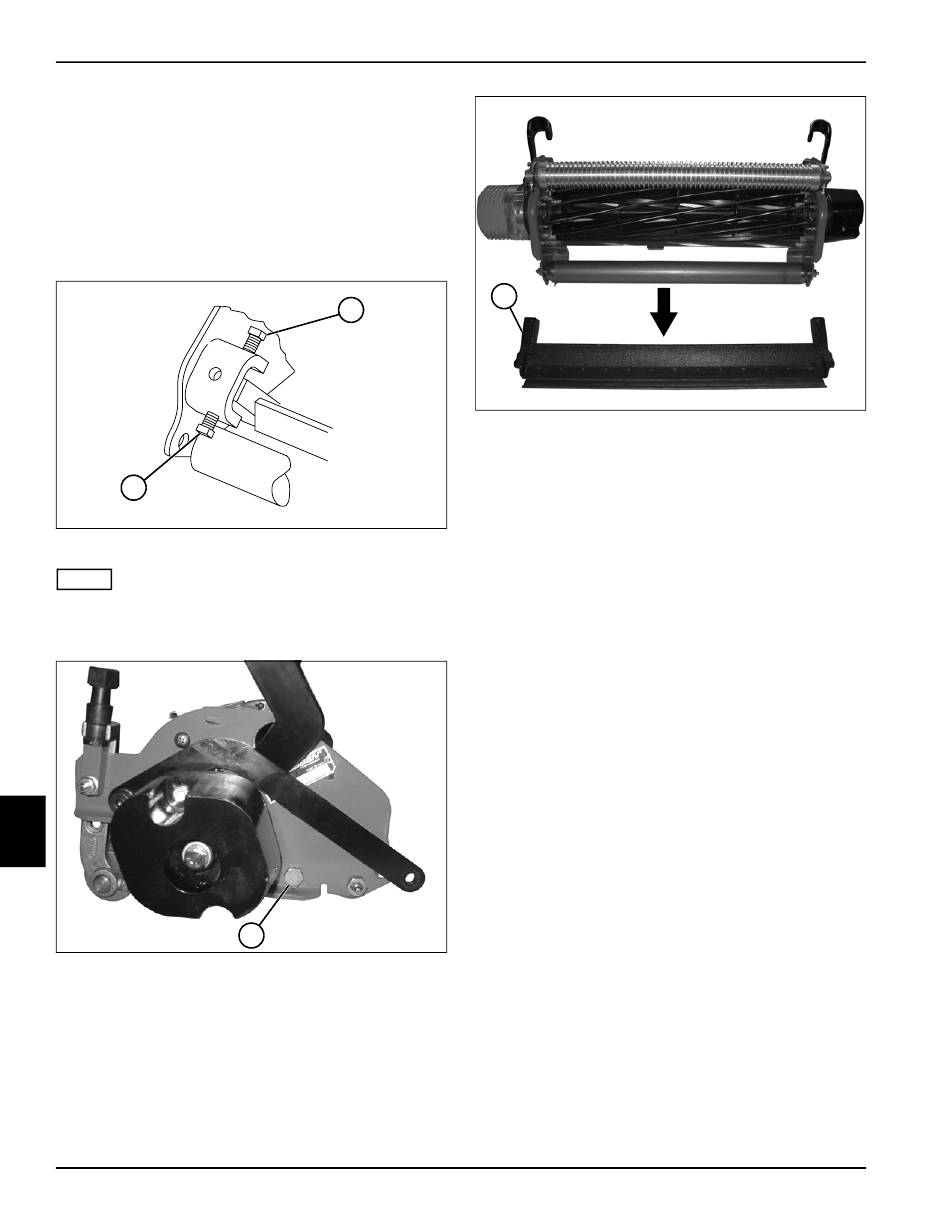

See Figures 8-20 through 8-22.
1. Park the mower safely. (See "Park Mower Safely" on
page 1-5.)
2. Remove cutting unit from mower. (See "Cutting Unit"
on page 8-18.)
2
NOTE
Steps 3 through 5 apply to both sides of the mower.
3. Loosen bedknife adjuster screws (1 and 2).
8
4. Remove the bedknife shoe mounting screws (3).
8-20
1
Figure 8-20
3
Figure 8-21
4
5. Remove the bedknife shoe assembly (4).
TN0893
TN0937
Figure 8-22
