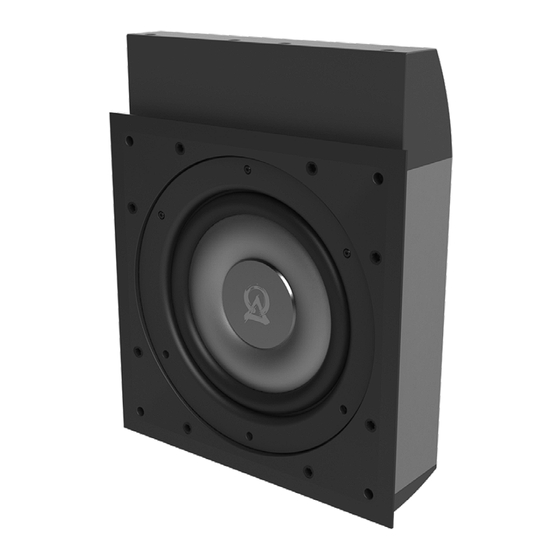

Origin Acoustics EXPLORER CSUB10REX Installation Manual

In-wall subwoofer
Hide thumbs Also See for EXPLORER CSUB10REX:
Table of Contents

Advertisement

Quick Links

Download this manual
CSUB10REX
EXPLORER COLLECTION™
IN-WALL SUBWOOFER | INSTALLATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXPLORER CSUB10REX and is the answer not in the manual?

Questions and answers

Related Manuals for Origin Acoustics EXPLORER CSUB10REX

Summary of Contents for Origin Acoustics EXPLORER CSUB10REX

  • Page 1 CSUB10REX EXPLORER COLLECTION™ IN-WALL SUBWOOFER | INSTALLATION MANUAL...

  • Page 2: Table Of Contents

    CSUB10REX INSTALLATION MANUAL | EXPLORER COLLECTION™ TABLE OF CONTENTS 1. Introduction 2. Specifications 3. CSUB10REX: - 3a. What’s Included - 3b. Required Tools/Items - 3c. About Speaker Wire - 3d. Installation Location - 3e. Amplifier 4. Installation: -4a. Installing the wire - 4b.

  • Page 3: Introduction

    CSUB10REX INSTALLATION MANUAL | EXPLORER COLLECTION™ 1. Introduction Thank you for your purchase! At Origin Acoustics, we take pride in providing you with a high quality product. All of Origin Acoustics’ speakers are designed to have excellent sound quality, longevity, and a simple installation process.

  • Page 4: Specifications

    CSUB10REX INSTALLATION MANUAL | EXPLORER COLLECTION™ 2. Specifications Description: Retrofit In-Wall Subwoofer MODEL CSUB10REX PART CSUB1000REX Woofer 10” Anodized Aluminum(254mm) Grille Material Aluminum Frequency Response 30Hz-250Hz Power Handling 100 - 500W Impedance 8Ω Sensitivity 88dB Amplifier Requirements SUBA500 / SUBA150 Cutout Dimensions 13”...
  • Page 5 CSUB10REX INSTALLATION MANUAL | EXPLORER COLLECTION™ 3c. Wire Recommendation You will need a wire that has at least two conductors; one that can be identified as the positive and the other as the negative. All two conductor wires have some means of identifying which conductor is which, but at times this identification may be subtle.

  • Page 6: Installation

    CSUB10REX INSTALLATION MANUAL | EXPLORER COLLECTION™ 4. CSUB10REX: Installation 4a) Installing the Wire Strip ¼ to ½ inches (6 to 12 mm) of the insulation off both ends of the wire. To avoid stray strands, twist them at the end. Installing the Wire Connect both wires to the amplifier.

  • Page 7: 4B. Cutting The Hole

    CSUB10REX INSTALLATION MANUAL | EXPLORER COLLECTION™ 4b) Cutting The Hole When you’ve decided on the subwoofer’s location, use the template to trace a rectangle lightly in pencil where the hole should be. If you’re unsure on whether there may be obstacles (such as pipes or wires) where you plan on installing the speaker, drill a ⅛...

  • Page 8: 4E. Attach The Bezel

    CSUB10REX INSTALLATION MANUAL | EXPLORER COLLECTION™ Attach the Bezel Only one side of the bezel will nest onto the lip that is holding the enclosure in place. Once the bezel is positioned properly, screw it in place four screws and the supplied hex wrench. Make sure the screws are snug but use care to not overtighten.

  • Page 9: Troubleshooting

    CSUB10REX INSTALLATION MANUAL | EXPLORER COLLECTION™ 5. Troubleshooting If possible, it’s often good to try to isolate the problem first. For example, if you’re playing a DVD on a television and there’s no sound, try connecting an MP3 player to the system to see if that works. If it does work, then the problem is with the tele- vision, DVD player, or the cables connecting them.

  • Page 10: Technical Assistance

    If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return at- tempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide instructions and support for the return process.

  • Page 11: Limited Lifetime Warranty

    If the product is determined to be defective, it will be repaired or replaced at Origin Acoustics’ discretion. If the product must be replaced yet it is no longer manufactured, it will be replaced with a model of equal to or greater value that is the most similar to the original.

  • Page 12: Return Process

    Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product.
  • Page 13 CSUB10REX INSTALLATION MANUAL | EXPLORER COLLECTION™ 01-24-2022 6975 S Decatur BLVD, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2023 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.

This manual is also suitable for:

Csub1000rex
