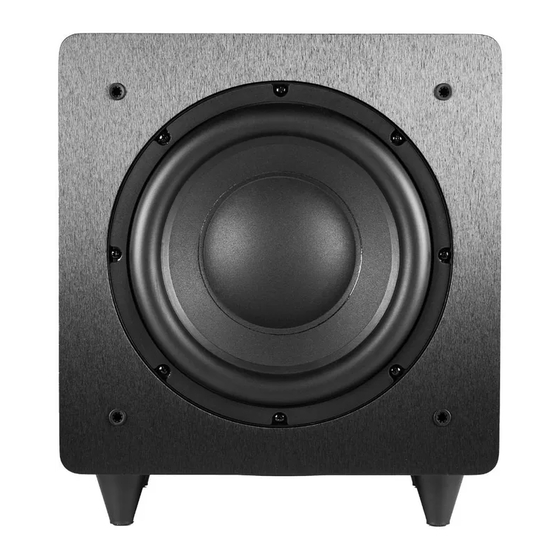

- Page 1 Installation Manual B a s s i c V 1 0 S u b w o o f e r Model: SUBV10 V 1.1...
-
Page 2: Table Of Contents
SUBV10 INSTALLATION MANUAL Introduction Thank you for purchasing an Origin Acoustics subwoofer. Proper- ly set up, your subwoofer will provide the most thrilling sub-bass experience possible. This manual will familiarize you with its connectivity and adjustment features while guiding you towards maximizing its performance. -
Page 3: Subwoofer Placement
SUBV10 INSTALLATION MANUAL Subwoofer Placement Subwoofer Connections and Controls Though your Origin Acoustics subwoofer will provide high-quality, IMPORTANT: DO NOT PLUG THE POWER CORD INTO THE WALL high-impact bass from a wide variety of locations, its placement OUTLET UNTIL ALL SUBWOOFER CONNECTIONS HAVE BEEN MADE in the room can greatly affect its performance. -
Page 4: On/Off/Auto Switch
SUBV10 INSTALLATION MANUAL On/Off/Auto Switch Frequency Control Once all of your subwoofer connections have been The second knob, labeled “FREQUENCY,” made, flip the power switch to its ‘ON’ position, i.e. sets the subwoofer’s internal crossover with the number “1” on the switch pressed in. The frequency, which is adjustable between indicator light next to the three-position switch 40Hz and 200Hz. -
Page 5: Phase Switch
SUBV10 INSTALLATION MANUAL Troubleshooting Phase Switch The switch labeled PHASE adjusts the phase of the If possible, it’s often good to try to isolate the problem first. For subwoofer’s output waveform in relation to your example, if you’re playing a DVD on a television and there’s no main speakers. -
Page 6: Technical Assistance
Origin Acoustics warrants to the original retail purchaser only that contact Origin Acoustics. Return product to Origin Acoustics this Origin Acoustics product will be free from defects in materials or your dealer, either in person or by mail. It’s preferable if the and workmanship, provided the speaker was purchased from an product is returned in the original packaging. -
Page 7: Specifications
Outputs USB 5.V Controls Level, Phase, Crossover (Crossover is variable from 40Hz-200Hz Cabinet Finish Black ash vinyl finish Grille Material Black cloth ©2015 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
